AS7M108NBHC440W

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

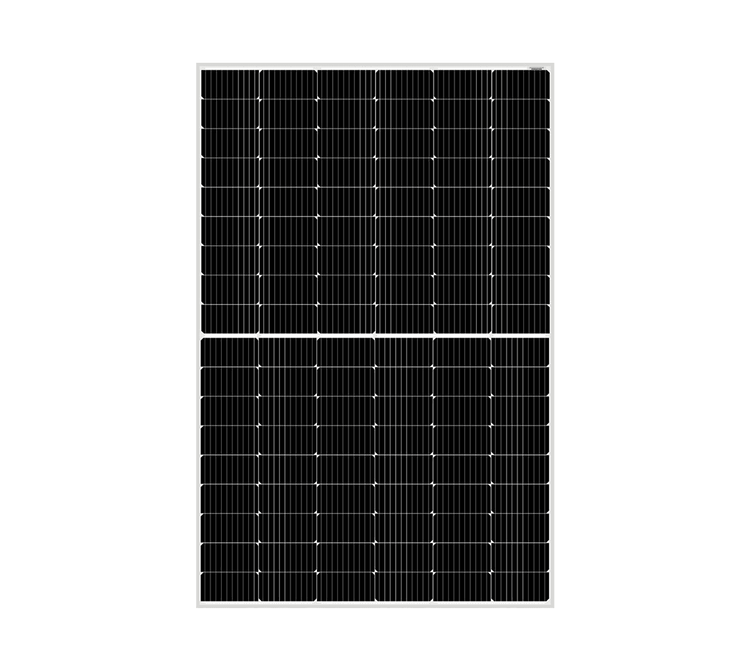

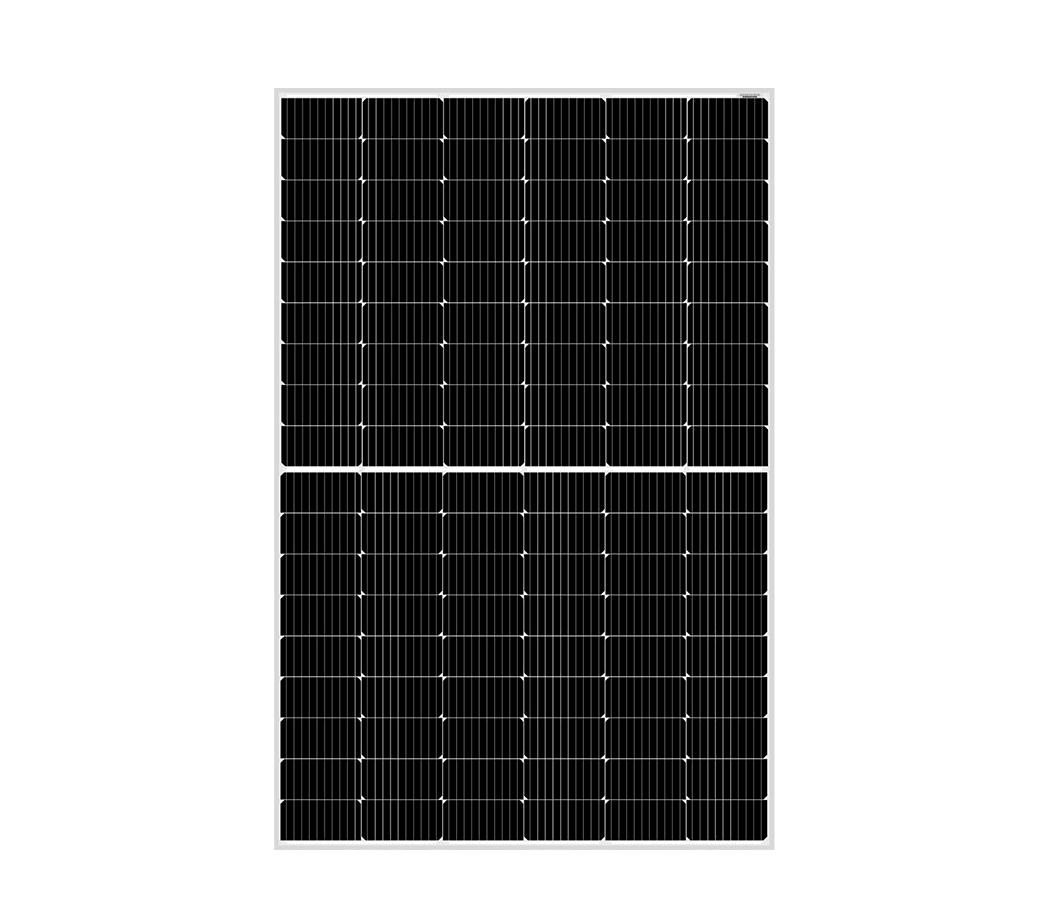

Amerisolar AS7M108NBHC440W 440W Bifacial Solar Panel

The Amerisolar AS7M108NBHC440W is a high-efficiency 440W bifacial solar panel designed for both residential and commercial applications. Utilizing advanced N-type TOPCon cell technology, this module offers exceptional performance, durability, and aesthetic appeal. Its bifacial design allows for energy generation from both the front and rear sides, enhancing overall efficiency.

Length (Height): 1722 mm

Width: 1134 mm

Depth (Thickness): 30 mm

Weight: Approximately 20.5 kg

Stock Code: AS7M108NBHC440W
Out of stock

Product Features

  • Maximum Power (Pmax)

    440W

  • Voltage at Maximum Power (Vmpp)

    32.8V

  • Current at Maximum Power (Impp)

    13.42A

  • Open Circuit Voltage (Voc)

    38.7V

  • Short Circuit Current (Isc)

    14.32A

  • Module Efficiency

    22.5%

  • Cell Type

    N-type TOPCon

  • Cell Configuration

    108 half-cut cells

  • Frame Material

    Anodized aluminum alloy

  • Front Cover

    3.2mm tempered glass with AR coating

  • Connector Type

    MC4 or MC4 compatible

Box Content
  • 1 x 1 x Amerisolar AS7M108NBHC440W Solar Panel
  • 1 x 1 x User Manual
  • 1 x 1 x Warranty Card

Documents

Frequently Asked Questions

  • Q: What is the warranty period for the AS7M108NBHC440W?

    A: The panel comes with a 20-year product warranty and a 10-year warranty at 90% output power, and 30 years at 80% output power.

  • Q: What certifications does this panel have?

    A: The AS7M108NBHC440W is certified under IEC 61215, IEC 61730, and CE standards.
