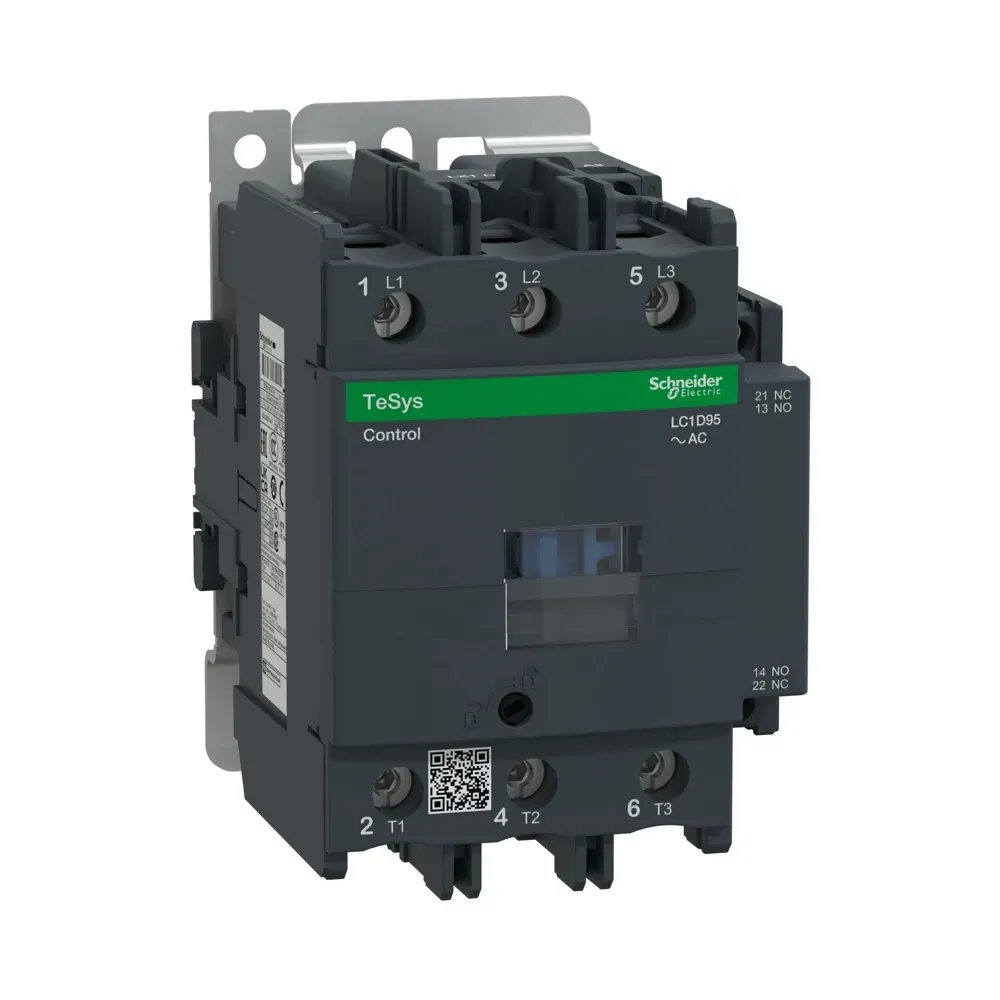

Schneider TeSys D 95A 3P contactor LC1D95V7 front view

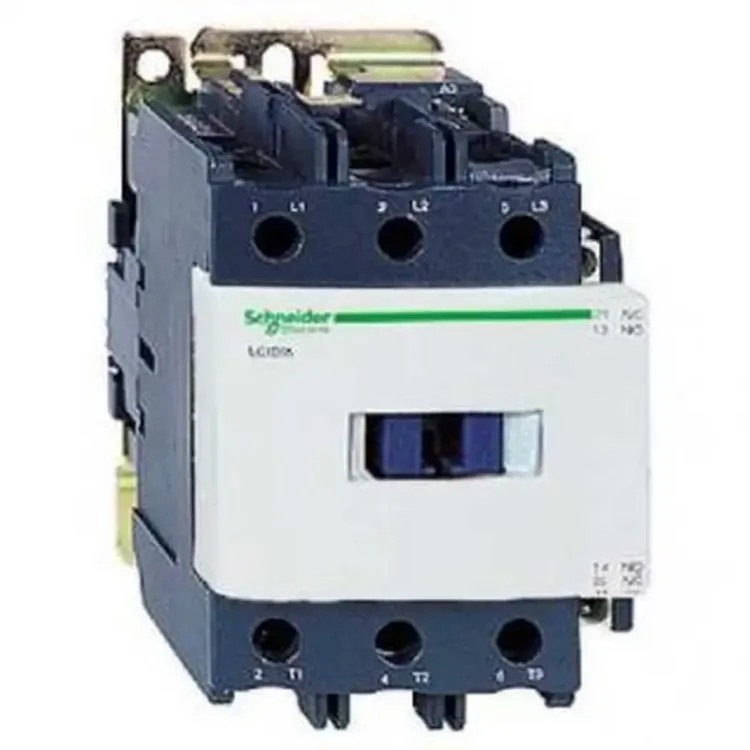

Photo is representative

Schneider TeSys D 95A 400V AC 3P Contactor - LC1D95V7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D95V7
GTIN —
Stock status: 9 in stock

priced individually

Net price: £333.26

Gross price

£399.91

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 95A 400V Coil AC 3P contactor (LC1D95V7), suitable for heavy-duty motor control, resistive load switching, and industrial automation applications. Rated 95A AC-3 at up to 440V for motors up to 45kW at 400V in AC-3 category. Features a 400V AC 50/60Hz control coil, screw clamp terminals, and integrated 1NO+1NC auxiliary contacts. Offers plate or DIN rail mounting, high electrical durability, and full IEC 60947-4-1 and -5-1 compliance for reliable use in demanding environments.

Specifications

Current Rating

95A AC-3 / 125A AC-1 at <=440V

Control Coil

400V AC 50/60Hz

Contact Configuration

3P (3NO) main contacts + 1NO+1NC auxiliary

Frame Size

F-frame (TeSys D Series)

Terminal Type

Screw clamp terminals

Mounting Method

DIN rail or panel mount

Auxiliary Capability

Accepts up to 4 auxiliary contact blocks

Motor Rating

Up to 45kW (AC-3, 400V)

Electrical Life

1.2 million cycles (AC-3)

Mechanical Life

4 million operations

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, CSA, UL, CE, UKCA

Enclosure Rating

IP20 front face

Ambient Temperature Range

-40…+60°C (up to 70°C with derating)

Schneider Electric
