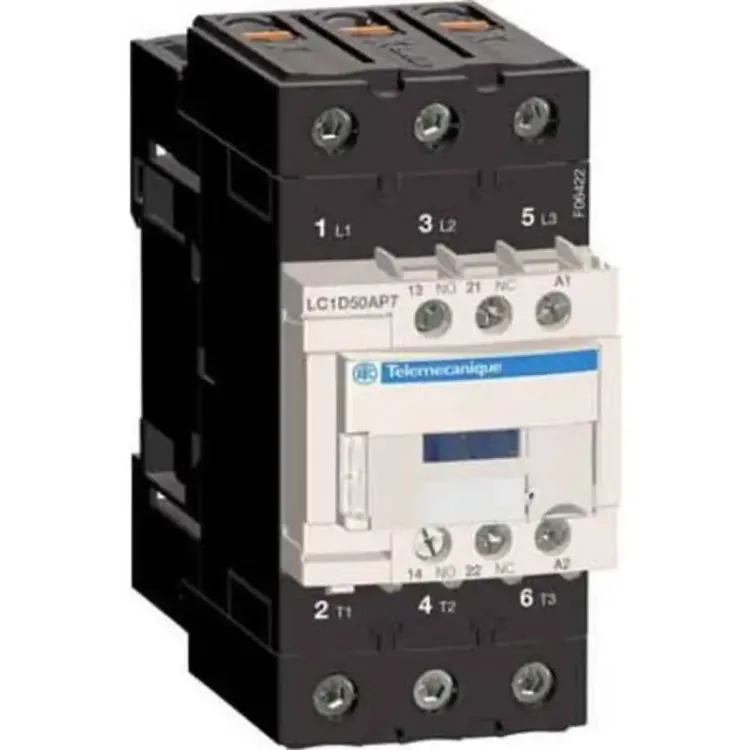

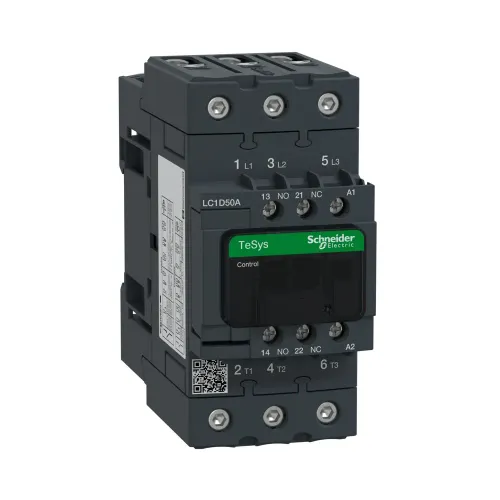

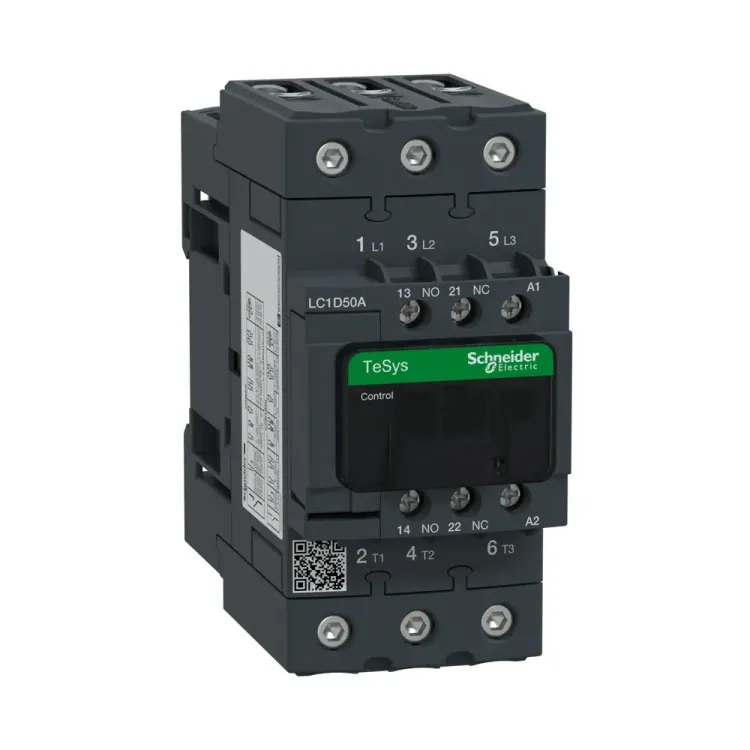

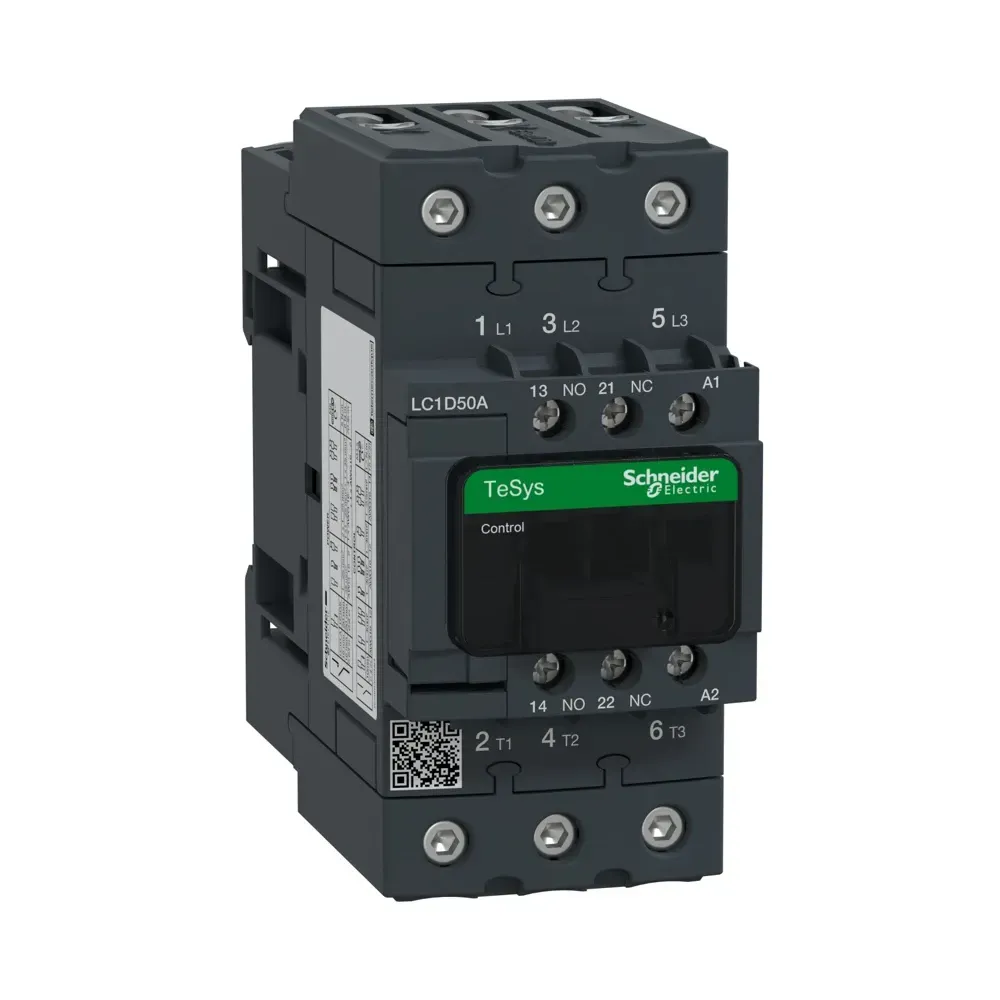

Front view of Schneider TeSys D LC1D50AP7 3P 50A contactor

Photo is representative

Schneider TeSys D 50A 230V AC 3P Contactor - LC1D50AP7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D50AP7
GTIN —
Stock status: Out of stock

priced individually

More arriving soon

Net price: £153.67

Gross price

£184.40

Schneider TeSys D 50A 230V Coil AC 3P contactor (LC1D50AP7), suitable for heavy-duty motor control and resistive load switching applications. Rated 50A AC-3 and 80A AC-1 at up to 440V for motors up to 22kW (400V). Equipped with a 230V AC 50/60Hz coil, screw clamp terminals, and integrated 1 NO + 1 NC auxiliary contacts. IEC 60947-4-1 and IEC 60947-5-1 compliant, supporting both plate and DIN rail mounting for demanding industrial automation and panel building environments.

Specifications

Current Rating

50A AC-3, 80A AC-1 at ≤440V

Control Coil

230V AC 50/60Hz

Contact Configuration

3P (3 NO) power contacts + 1NO+1NC auxiliary contacts

Frame Size

D-frame

Terminal Type

Screw clamp terminals, EverLink connectors

Mounting Method

DIN rail (35mm) or plate mount

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Motor Rating

Up to 22kW at 400V (AC-3)

Mechanical Life

6 million operations

Electrical Durability

1.45 million cycles at 50A AC-3

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, UL, CSA, CCC, CE, UKCA
