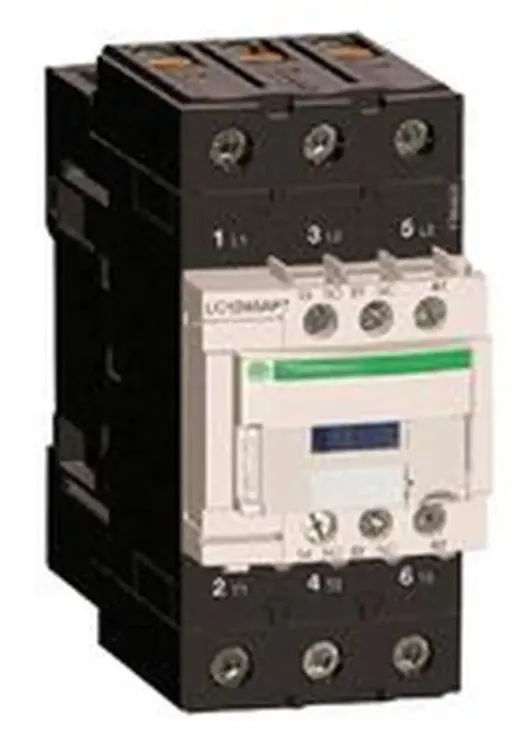

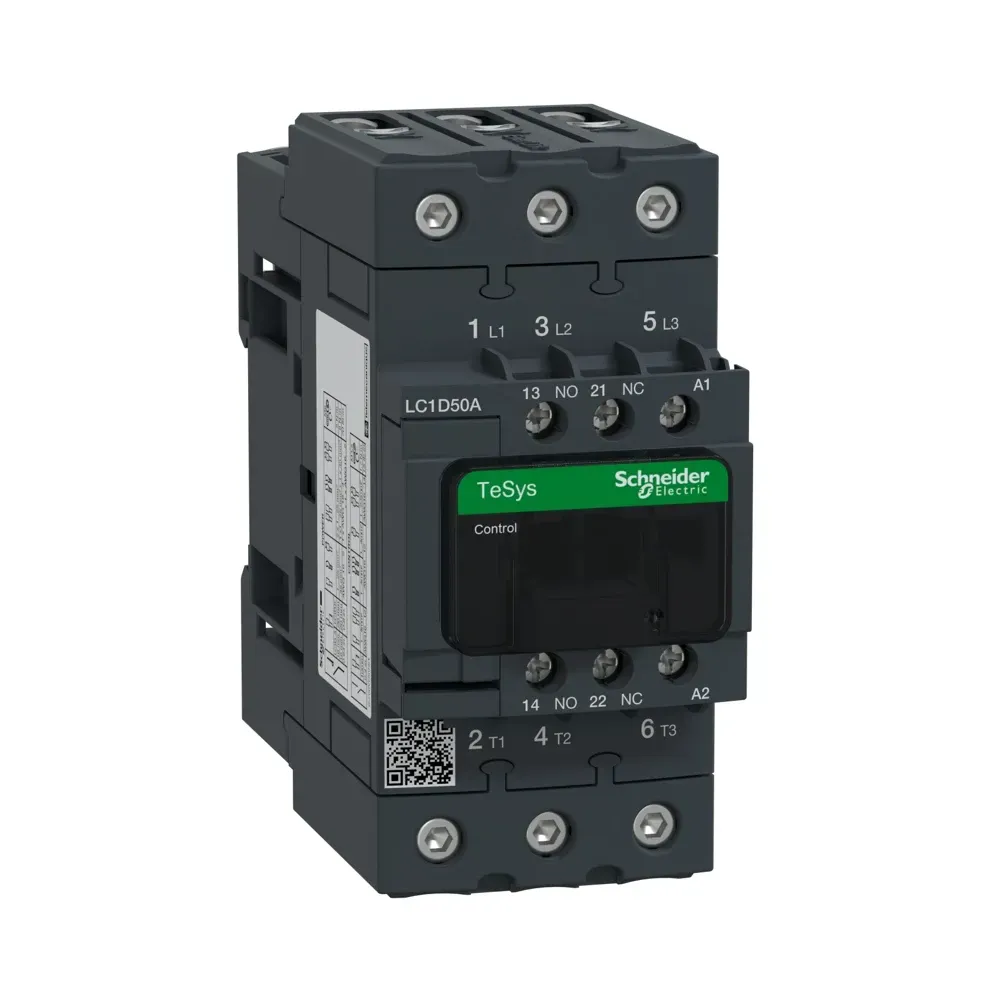

Schneider LC1D50AF7 TeSys D 3-pole 50A contactor front view

Photo is representative

Schneider TeSys D 50A 110V AC 3P Contactor - LC1D50AF7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D50AF7
GTIN —
Stock status: In stock

priced individually

Net price: £153.67

Gross price

£184.40

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 50A 110V Coil AC 3P contactor (LC1D50AF7), suitable for direct-on-line (DOL) motor starting and resistive load switching in industrial motor control panels. AC-3 rated at 50A up to 440V AC, making it ideal for motors up to 22kW at 400V. Equipped with a 110V AC control coil, 3 normally open power contacts, and built-in auxiliary contacts (1NO+1NC for signaling). Screw clamp terminals support secure wiring, and the unit is compatible with DIN rail or panel mounting. Fully compliant with IEC 60947-4-1, IEC 60947-5-1, and related international standards, ensuring safe and reliable operation for demanding industrial applications.

Specifications

Current Rating

50A AC-3, 80A AC-1 at ≤440V AC

Control Coil

110V AC 50/60Hz

Contact Configuration

3P (3 NO) main, 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals (EverLink)

Mounting Method

35mm DIN rail or panel mount

Motor Rating

Up to 22kW at 400V (AC-3)

Mechanical Life

6 million operations

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947, UL 60947-4-1, CSA C22.2 No 14

Schneider Electric
