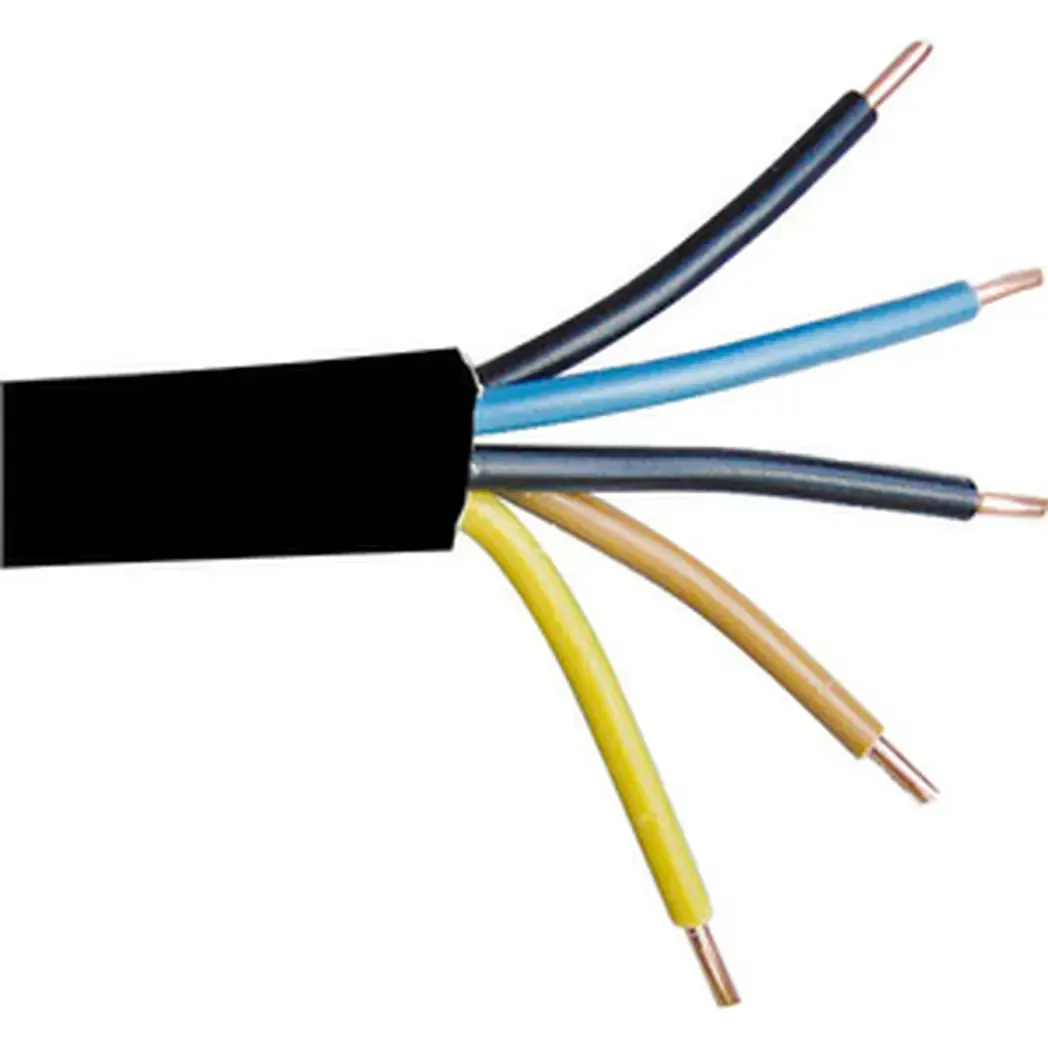

NYY-J 5 Core 2.5mm2 Unarmoured PVC Mains Control Cable 600 1000V

Photo is representative

NYY-J 5 Core 2.5mm2 Unarmoured PVC Mains Control Cable 600 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £3.26

Gross price

£3.92

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J 5 core 2.5mm² unarmoured PVC cable for power and control in fixed indoor installations. Suitable for cable tray, conduit, or fixed to walls where mechanical damage risk is low. Not suitable for direct burial.

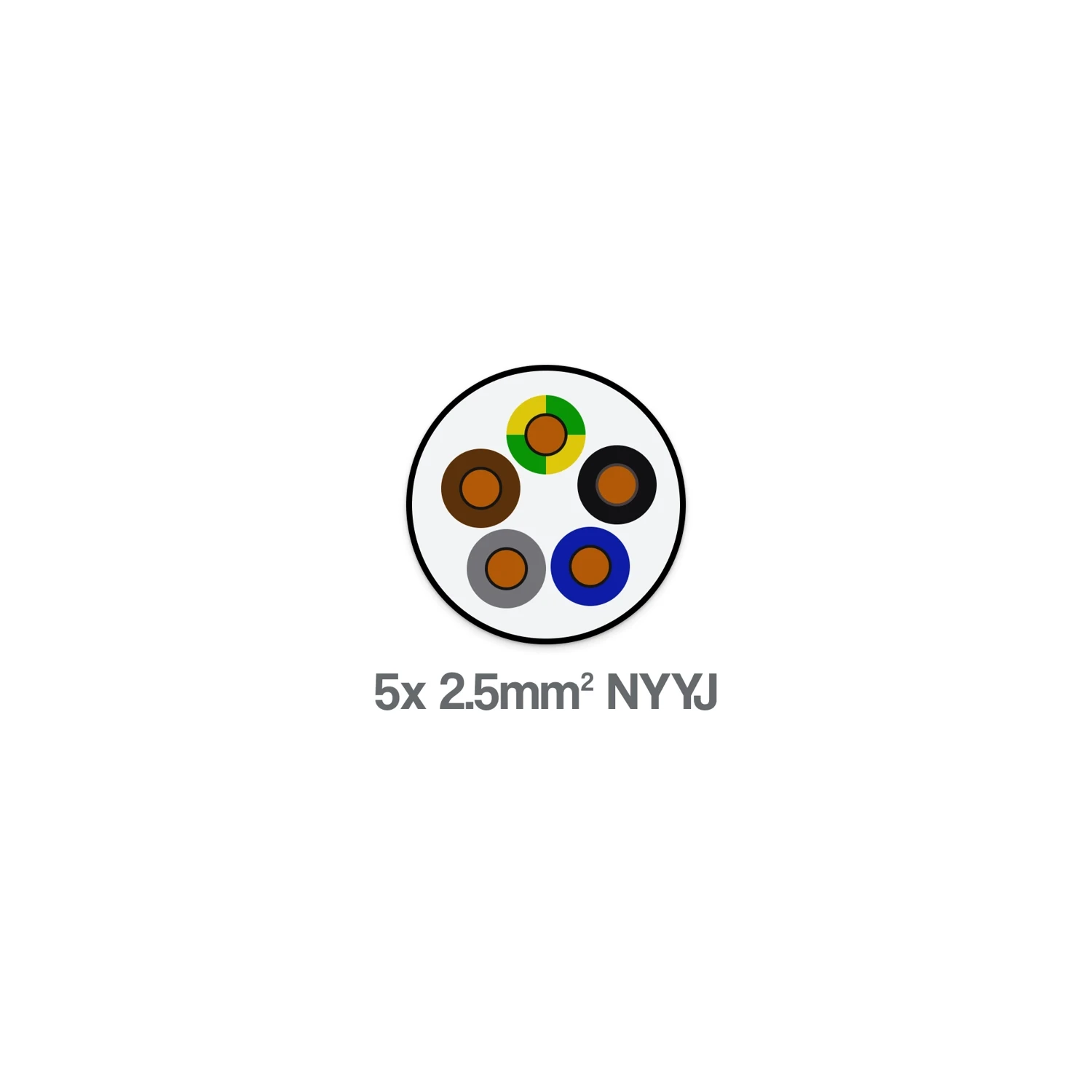

Class 1 solid copper conductors with PVC insulation, filler, and outer sheath. Cores are Brown, Blue, Black, Grey, and Green/Yellow.

  • Voltage rating: 600/1000V
  • Overall diameter: 13.9mm
  • Min bending radius: 12 × OD
  • Operating temp: -15°C to +70°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Voltage Rating

600/1000V

Conductor Size

2.5mm²

Number of Cores

5

Conductor Type

Class 1 solid copper

Stranding

1/1.78

Overall Diameter

13.9mm

Weight

350 kg/km

Min Bending Radius

12 × overall diameter

Operating Temperature

-15°C to +70°C

Insulation Material

PVC

Outer Sheath Material

PVC

Core Colours

Brown, Blue, Black, Grey, Green/Yellow

Flame Retardancy

BS EN 60332-1-2

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
