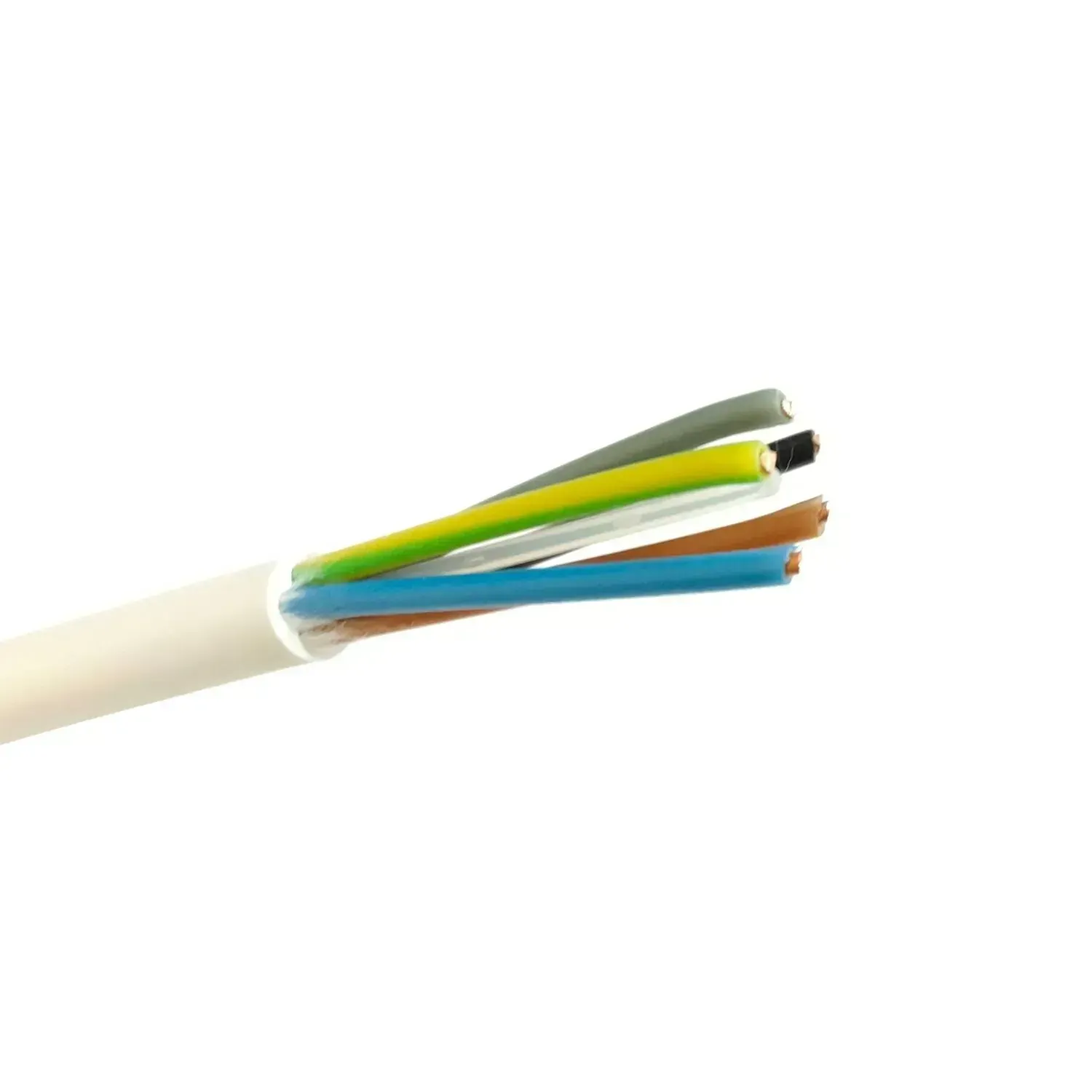

NYM-J 5 Core 2.5mm² PVC Wiring Cable 300 500V 100m Roll

Photo is representative

NYM-J 5 Core 2.5mm² PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

Net price: £2.98

Gross price

£3.57

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5x2.5mm² PVC cable on a 100m roll. Suitable for indoor and outdoor use — dry, moist, or wet areas, under plaster and in concrete. Not for direct sunlight exposure.

Solid Class 1 copper conductors, PVC insulation and sheath to IEC 60332-1-2. Cores identified brown, black, grey, blue, and green/yellow.

  • 300/500V rated
  • 25A current carrying capacity
  • Operating temp: -30°C to +70°C (do not install below 0°C)
  • DC resistance at 20°C: 7.41 Ω/km
  • Voltage drop (3⁄4-core three-phase AC): 16 mV/A/m
Specifications

Cable Standard

BS EN 50265-2-1, IEC 60502, VDE 0250

Voltage Rating

300/500V

Number of Cores

5

Conductor Size

2.5mm²

Conductor Type

Solid copper, Class 1

Stranding

1/1.78mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

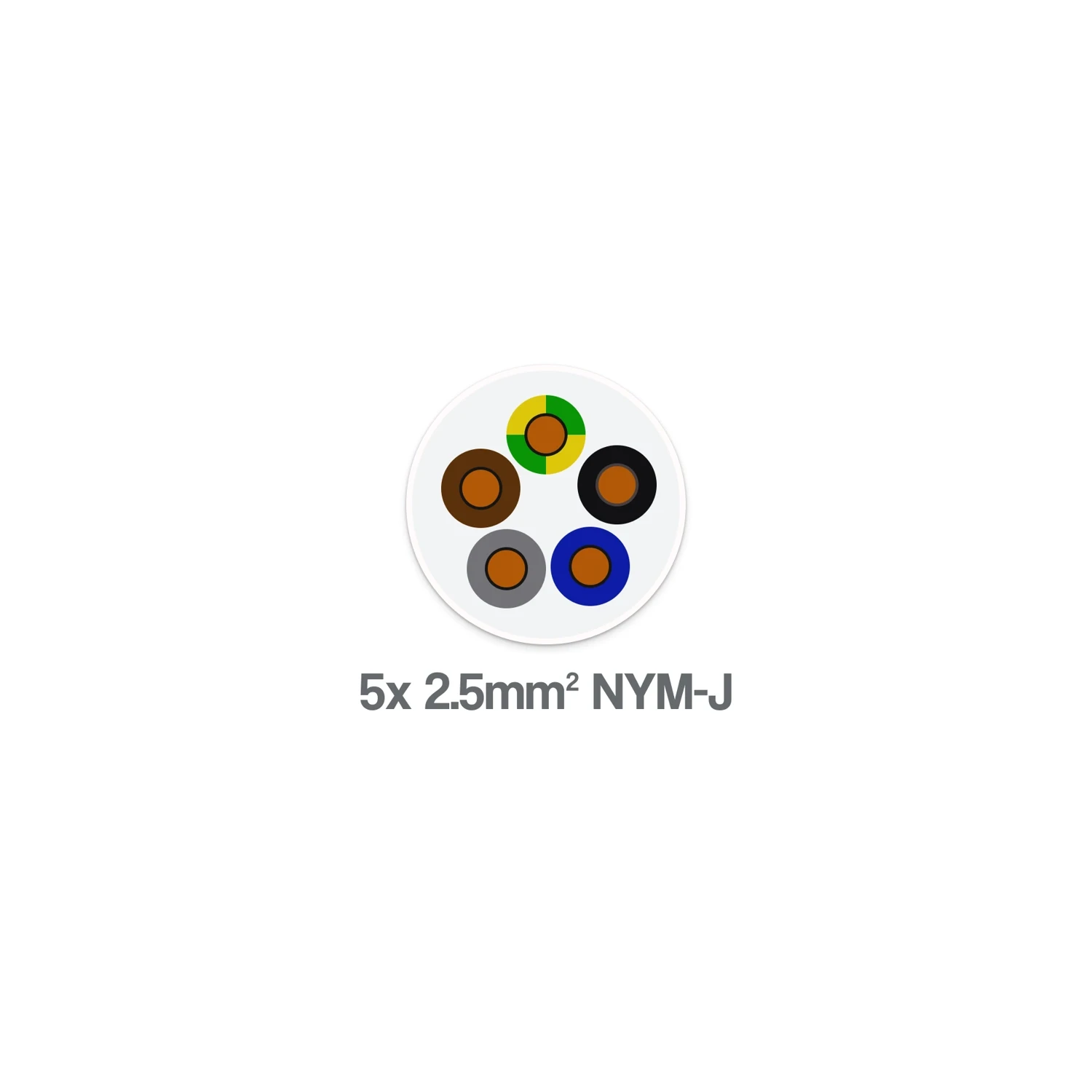

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Current Carrying Capacity

25A

Operating Temperature

-30°C to +70°C

Installation Temperature

0°C minimum

DC Resistance at 20°C

7.41 Ω/km

Weight

245 kg/km
