NYM-J 5 Core 16mm² PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 16mm² PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 516NYM
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £16.18

Gross price

£19.41

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5 core 16mm² PVC wiring cable on a 500m drum. Rated 300/500V. Suited for dry, moist or wet areas including under plaster and in concrete — indoor and outdoor fixed installations.

Not suitable for direct sunlight exposure. Do not install below 0°C.

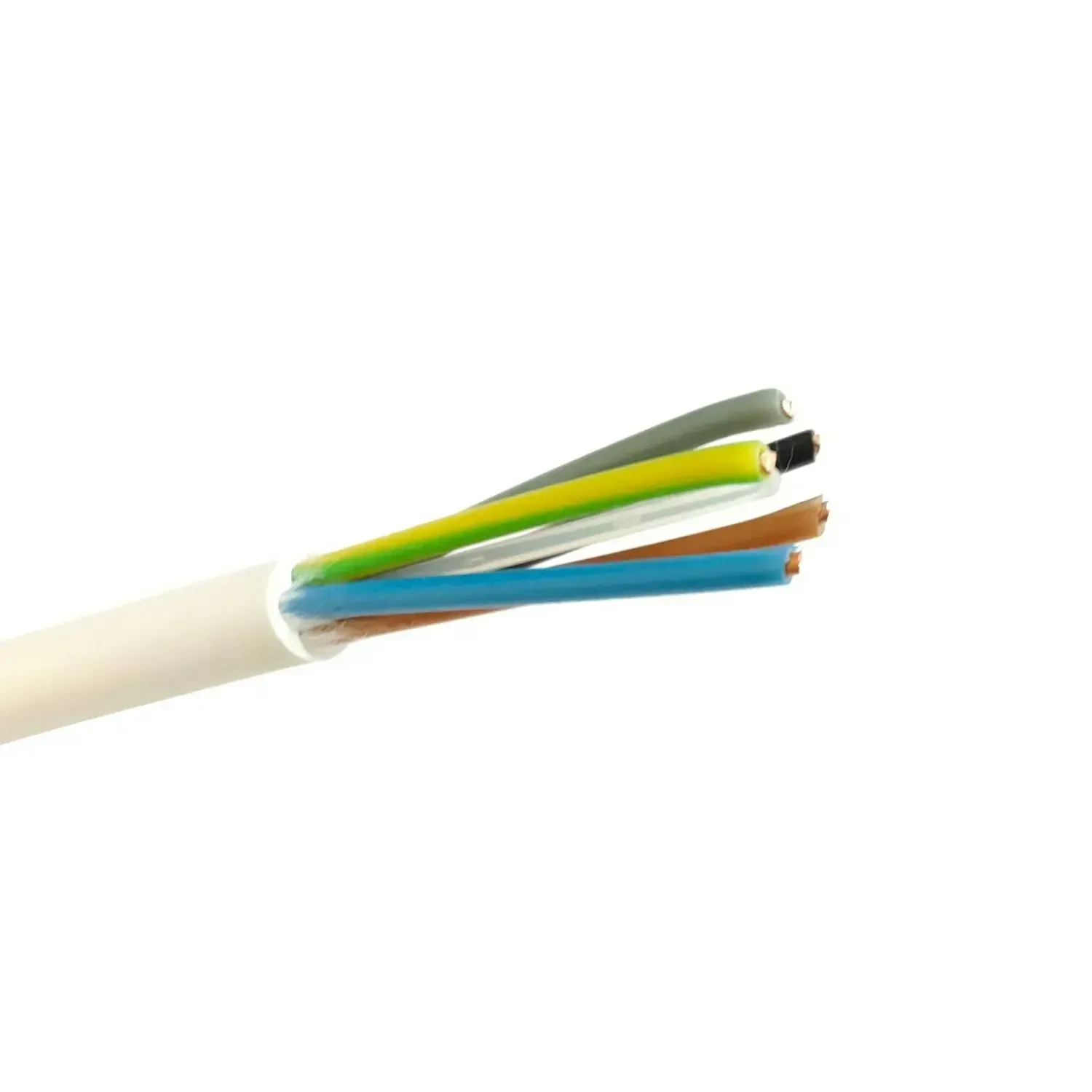

  • 5 cores: Brown, Black, Grey, Blue, Green/Yellow
  • Stranded copper conductors, Class 2 (7⁄1.70mm)
  • Current carrying capacity: 79A
  • DC resistance at 20°C: 1.15 Ω/km
  • Operating temp: -30°C to +70°C
Specifications

Cable Type

NYM-J PVC Wiring Cable

Cores

5

Conductor Size

16 mm²

Conductor Type

Stranded copper, Class 2

Stranding

7/1.70 mm

Voltage Rating

300/500 V

Current Carrying Capacity

79 A

DC Resistance at 20°C

1.15 Ω/km

AC Resistance at 70°C

16 Ω/km

Inductance

0.255 mH/km

Voltage Drop (3/4 Core Three Phase AC)

2.5 mV/A/m

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Operating Temperature

-30°C to +70°C

Installation Temperature

0°C minimum

Weight

1150 kg/km

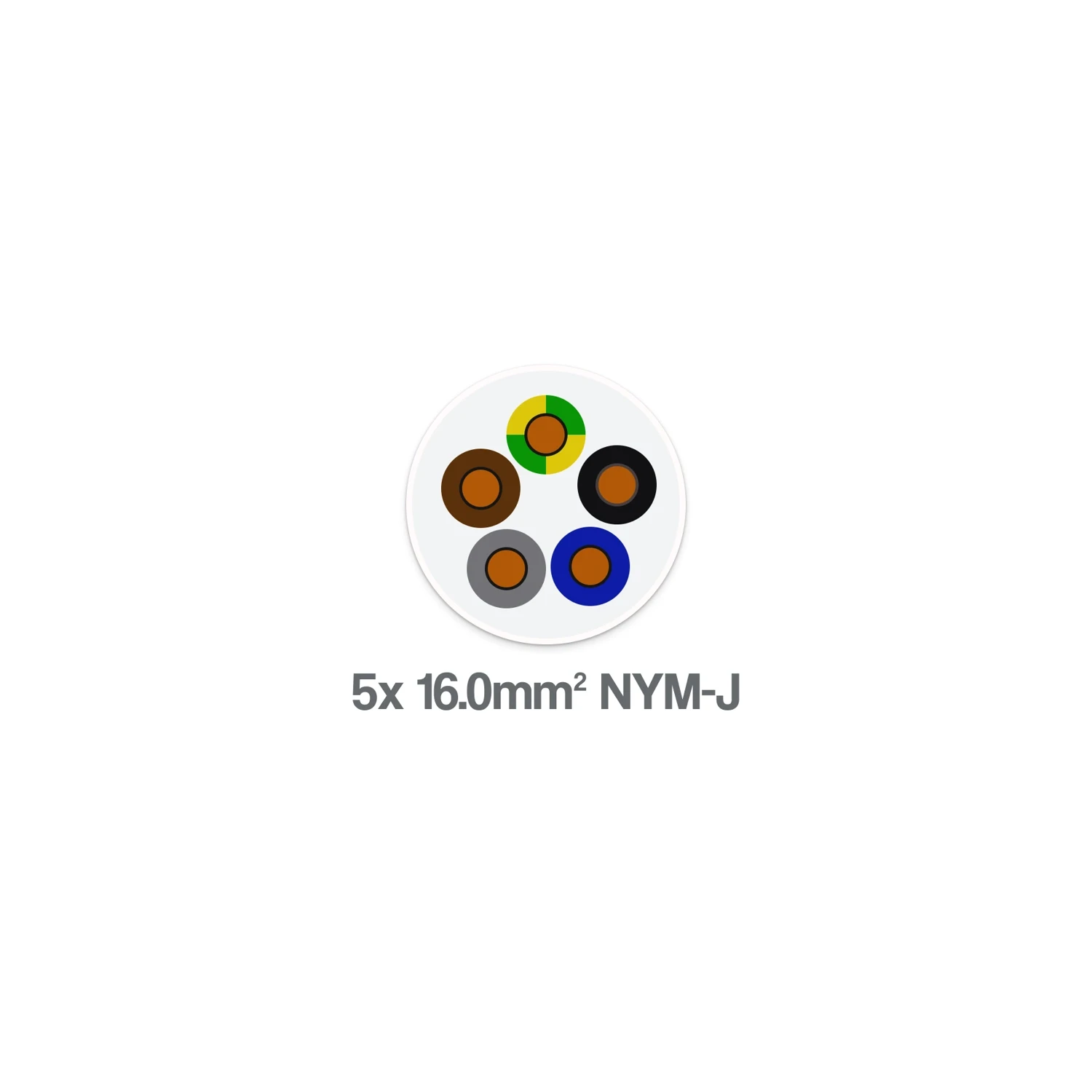

Core Colours

Brown, Black, Grey, Blue, Green/Yellow

Standard

BS EN 50265-2-1, IEC 60502, VDE 0250
