NYM-J 5 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll

Photo is representative

NYM-J 5 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

Net price: £2.11

Gross price

£2.53

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

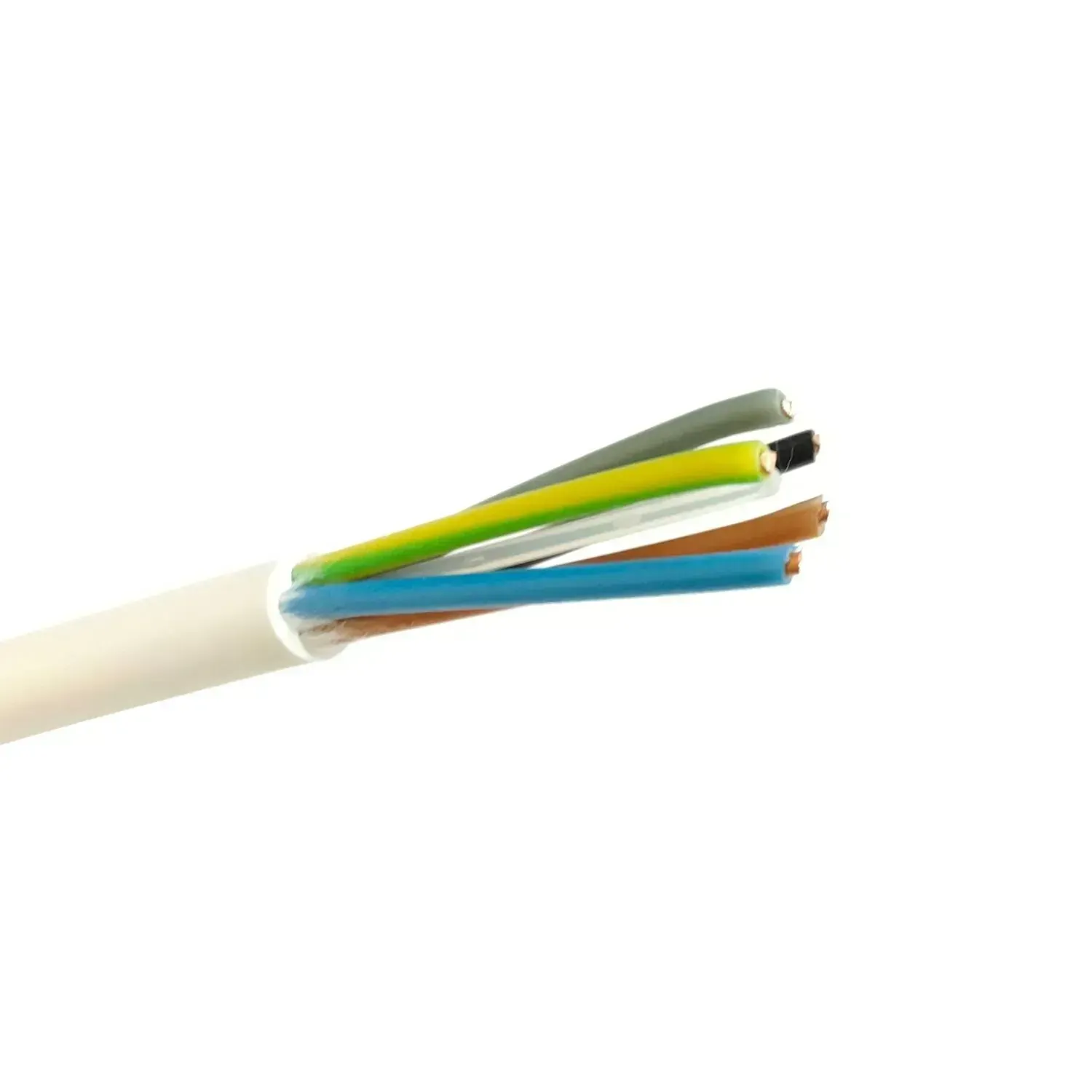

NYM-J 5x1.5mm² PVC wiring cable on a 100m roll. Solid Class 1 copper conductors with PVC insulation and PVC outer sheath.

Suitable for fixed wiring in dry, moist or wet areas — including under plaster and in concrete. Not for installation below 0°C.

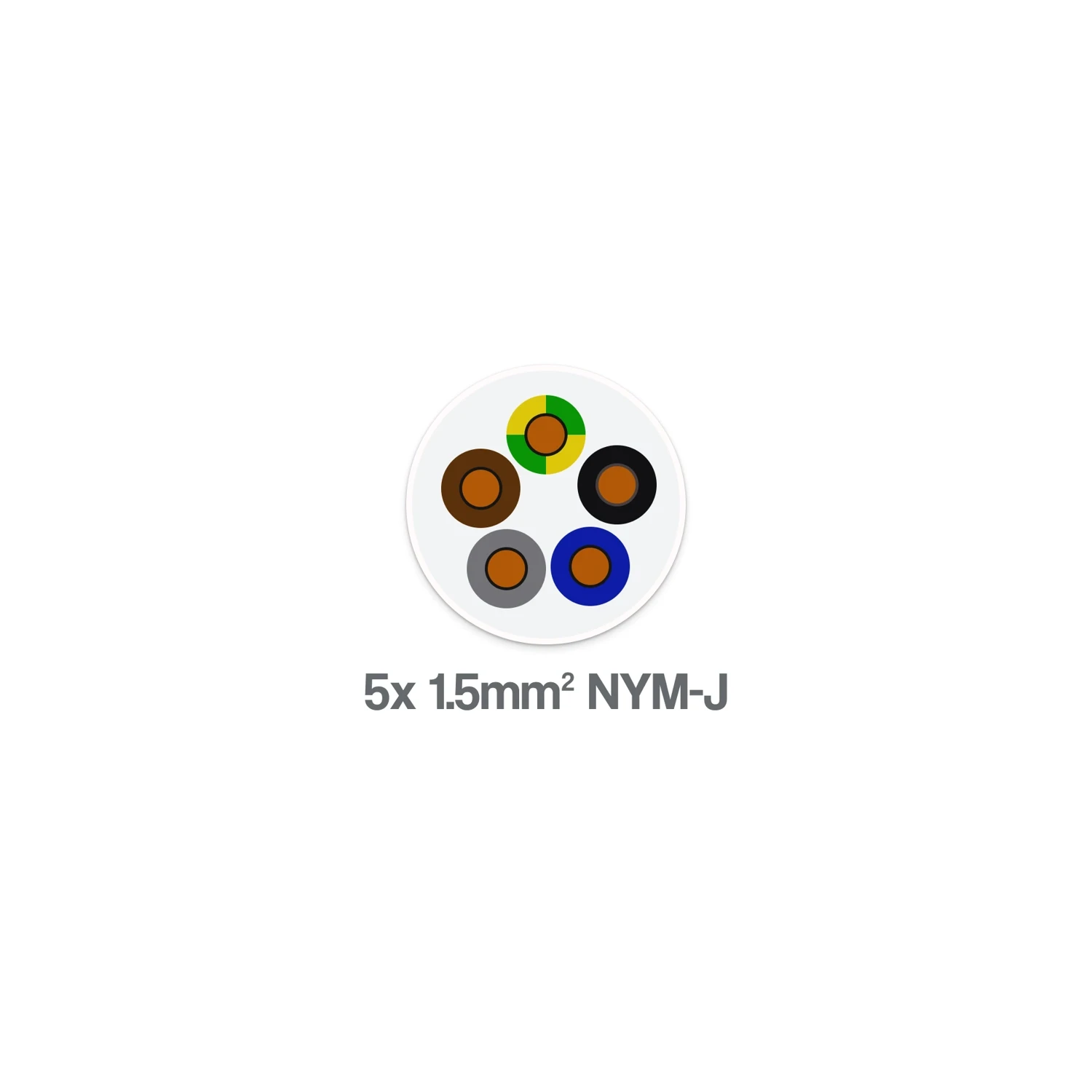

  • 5 cores: Brown, Black, Grey, Blue, Green/Yellow
  • 300/500V rated, 19A current carrying capacity
  • Temp range: -30°C to +70°C (install above 0°C)
  • DC resistance at 20°C: 12.1 Ω/km
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Voltage Rating

300/500V

Conductor Size

1.5 mm²

Number of Cores

5

Conductor Type

Solid copper, Class 1

Stranding

1/1.38 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Current Carrying Capacity

19A

DC Resistance at 20°C

12.1 Ω/km

Voltage Drop (Single Phase AC)

31 mV/A/m

Operating Temperature

-30°C to +70°C

Minimum Installation Temperature

0°C

Weight

170 kg/km

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Cable Standard

BS EN 50265-2-1, IEC 60502, VDE 0250
