NYM-J 4 Core 2.5mm² PVC Wiring Cable 300 500V 100m Roll

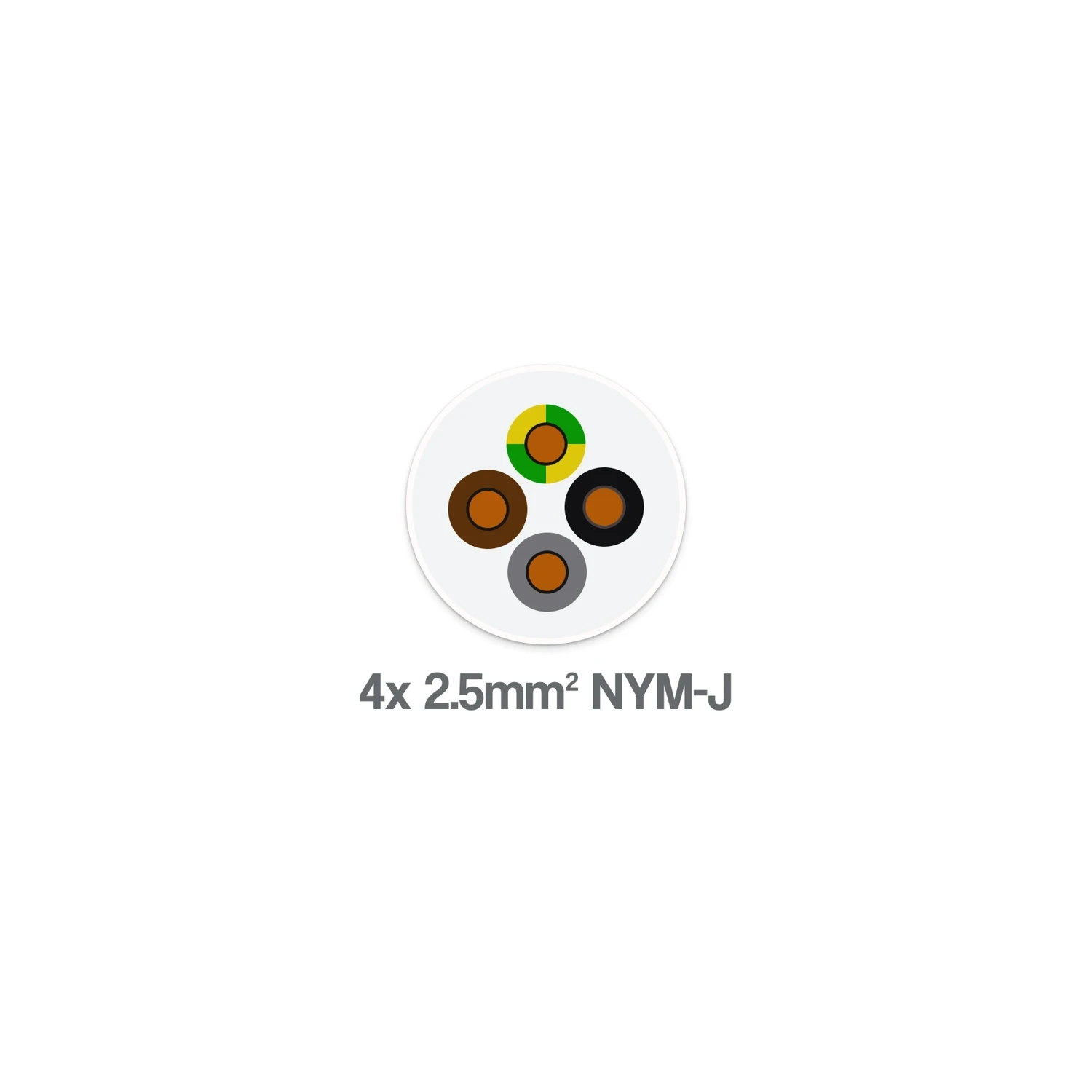

Photo is representative

NYM-J 4 Core 2.5mm² PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425NYM1
GTIN —
Stock status: In stock

priced per meter

Net price: £1.09

Gross price

£1.31

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 4 core 2.5mm² PVC insulated and sheathed wiring cable, supplied on a 100m roll. Suitable for fixed wiring in domestic and industrial installations — dry, moist or wet areas, under plaster and in concrete.

Not suitable for direct sunlight exposure. Installation below 0°C is not recommended.

  • 4 cores: Brown, Black, Grey, Green/Yellow
  • 300/500V rated, 25A current carrying capacity
  • Stranded copper conductors, Class 2 (1⁄1.78mm)
  • Temperature range: -30°C to +70°C
  • Standards: IEC 60502, VDE 0250, BS EN 50265-2-1
Specifications

Cable Type

NYM-J

Voltage Rating

300/500V

Number of Cores

4

Conductor Size

2.5mm²

Current Carrying Capacity

25A

Conductor Material

Stranded copper, Class 2

Stranding

1/1.78mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Core Identification

Brown, Black, Grey, Green/Yellow

Operating Temperature

-30°C to +70°C

DC Resistance at 20°C

7.41 Ω/km

AC Resistance at 70°C

2.5 Ω/km

Voltage Drop (3 or 4 core, 3-phase AC)

16 mV/A/m

Weight

200 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
