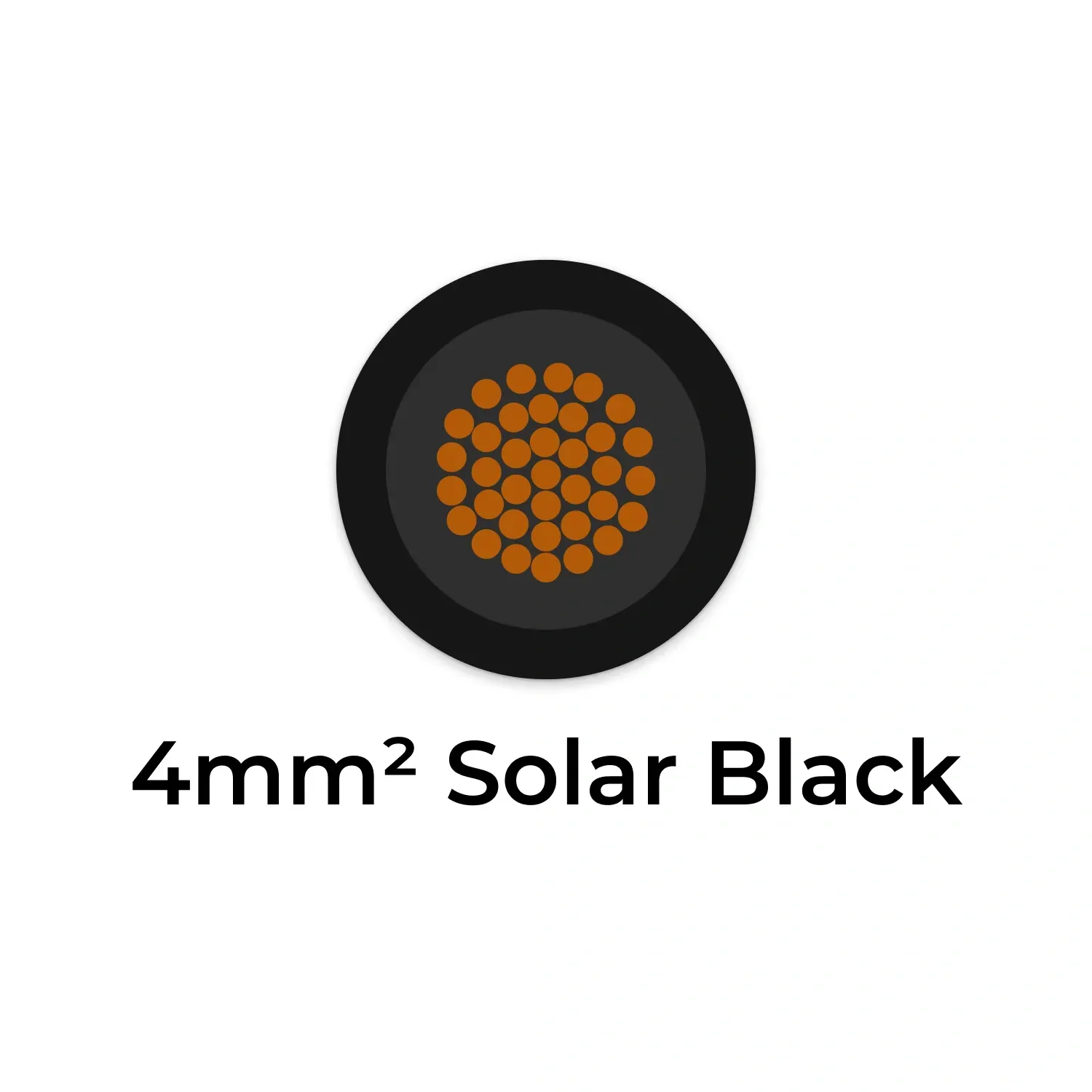

4.0mm² black single core solar cable H1Z2Z2-K for photovoltaic use

Photo is representative

4.0mm² Single Core Solar Cable Black 1500V XLPO

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4SOLARBLACK-KU5
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.02

Gross price

£1.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

This 4.0mm² single core solar cable is designed for photovoltaic applications, rated at 1500V DC with double-insulated XLPO construction. The cable features tinned fine copper conductors (Class 5 flexible) and complies with international photovoltaic cable standards. Operating temperature range is -40°C to +90°C, with a maximum conductor temperature of 120°C. XLPO insulation and halogen-free, flame-retardant outer sheath provide high resistance to UV, ozone, and weathering, ensuring reliable long-term service for solar installations. Suitable for fixed and flexible installation in protected and open environments.

Specifications

Conductor Cross-Sectional Area

4.0mm²

Core Count

Single core (1x4.0mm²)

Voltage Rating (DC)

1500V DC

Maximum Permitted Voltage

1800V DC

Conductor Material

Tinned copper, Class 5 flexible (fine strand)

Insulation & Sheath Material

Electron-beam cross-linked XLPO, double insulated, halogen free, flame retardant

Operating Temperature Range

-40°C to +90°C (max conductor 120°C)

Outer Diameter

5.5mm (approximate)

Current Carrying Capacity (at 60°C)

55A

Insulation Resistance

≥1000 MΩ·km

Colour

Black (standard); Red available

Applicable Standards

EN 50618, IEC 62930

Installation Method Suitability

Suitable for fixed and flexible PV installations, indoor and outdoor
