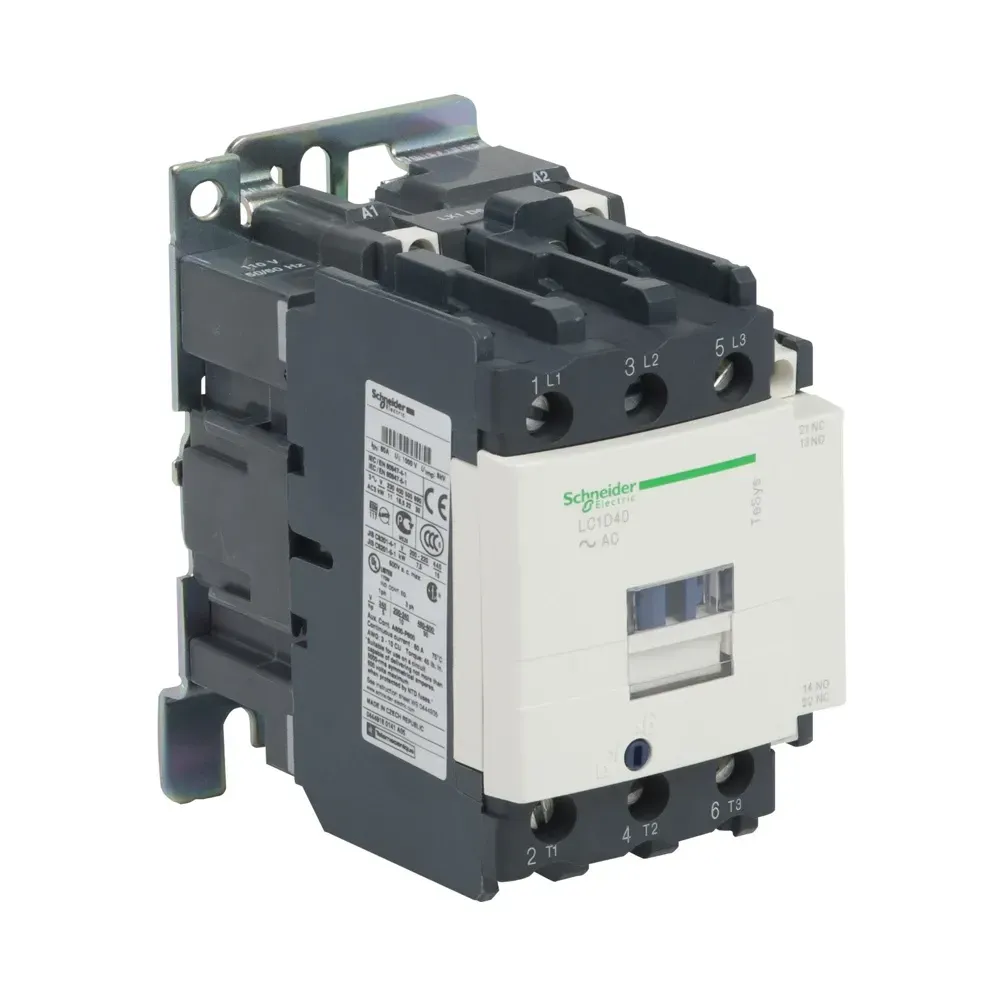

Schneider TeSys D LC1D40V7 3P 40A contactor front view

Photo is representative

Schneider TeSys D 40A 400V AC 3P Contactor - LC1D40V7

Schneider TeSys D 40A 400V Coil AC 3P contactor (LC1D40V7), suitable for AC-3 motor control and resistive load applications up to 18.5kW (400V). Rated 40A AC-3 at 440V, 60A AC-1 at 440V, this contactor offers reliable switching performance for DOL starting, reversing, and star-delta configurations. Features DIN rail or panel mounting, screw terminals, and standard auxiliary contacts (1 NO + 1 NC). IEC 60947-4-1 and EN 60947 certified with robust mechanical life of 6 million operations. Compatible with a wide range of TeSys D accessories and auxiliary blocks.

Product Information

Stock Code LC1D40V7
MPN —
GTIN —
Stock status: Out of stock
Price: £142.51
incl. VAT, 20% priced individually

Product Features
Current Rating 40A AC-3, 60A AC-1 at 440V
Control Coil 400V AC 50/60Hz
Contact Configuration 3P power + 1 NO + 1 NC auxiliary
Frame Size D-frame
Terminal Type Screw terminals (clamp up to 25mm²)
Mounting Method 35mm DIN rail or panel mount
Motor Rating 18.5kW at 400V AC-3
Mechanical Life 6 million operations
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL 508, CSA C22.2 No 14
Auxiliary Capability Accepts up to 4 auxiliary blocks (LADN/LADF series)

Brand

Schneider Electric
