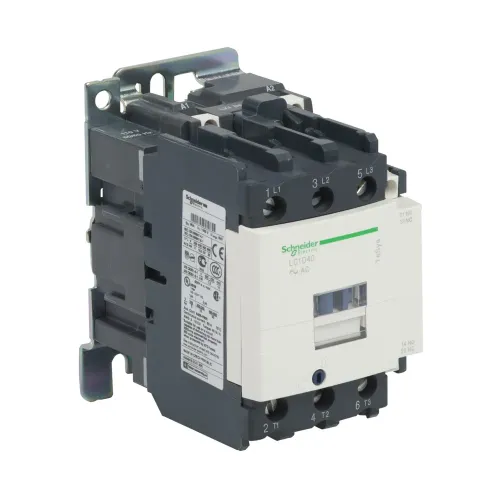

Schneider LC1D40AV7 40A 400V AC 3P Contactor front view

Photo is representative

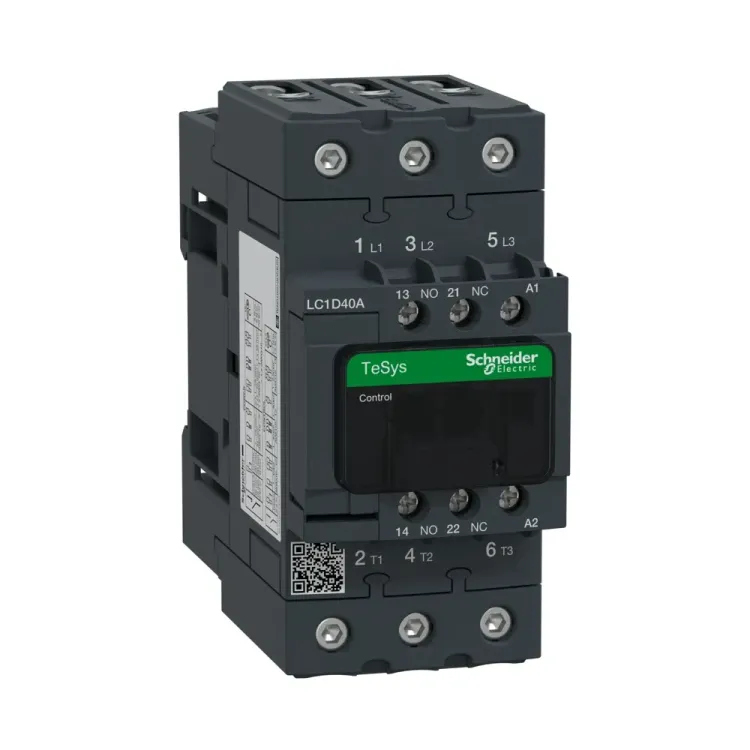

Schneider TeSys D 40A 400V AC 3P Contactor - LC1D40AV7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D40AV7
GTIN —
Stock status: In stock

priced individually

Net price: £109.08

Gross price

£130.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 40A 400V Coil AC 3P contactor (LC1D40AV7), suitable for motor control and resistive load applications. AC-3 rated 40A at up to 400V for motors up to 18.5kW at 400V. Features a 400V AC 50/60Hz control coil, screw clamp terminals, and mechanical life of 6 million operations. Provides 3 NO power contacts, built-in auxiliary contacts (1 NO + 1 NC), EverLink BTR screw connectors, and compatibility with TeSys D series accessories. IEC 60947-4-1 and EN 60947-4-1 compliant for industrial panel mounting and reliable DOL, star-delta, or reversing motor starting.

Specifications

Current Rating

40A AC-3, 60A AC-1, 40A AC-3e

Control Coil

400V AC 50/60Hz

Contact Configuration

3P (3 NO) power + 1 NO + 1 NC auxiliary

Frame Size

D-frame

Terminal Type

EverLink BTR screw connectors (power), screw clamp terminals (control)

Mounting Method

35mm DIN rail or plate mount

Motor Rating

Up to 18.5kW at 400V AC (AC-3)

Mechanical Life

6 million operations

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, EN 60947-5-1, CSA, UL
