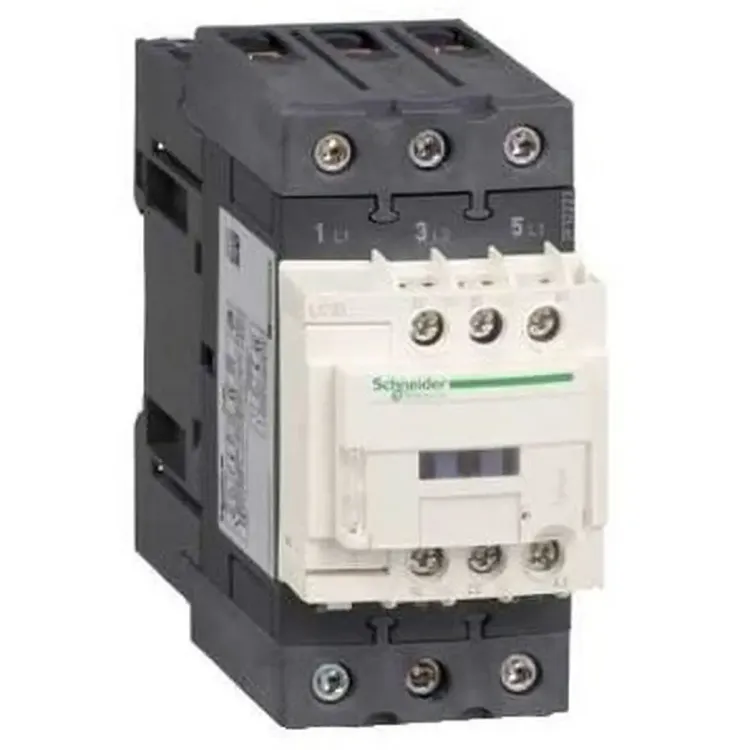

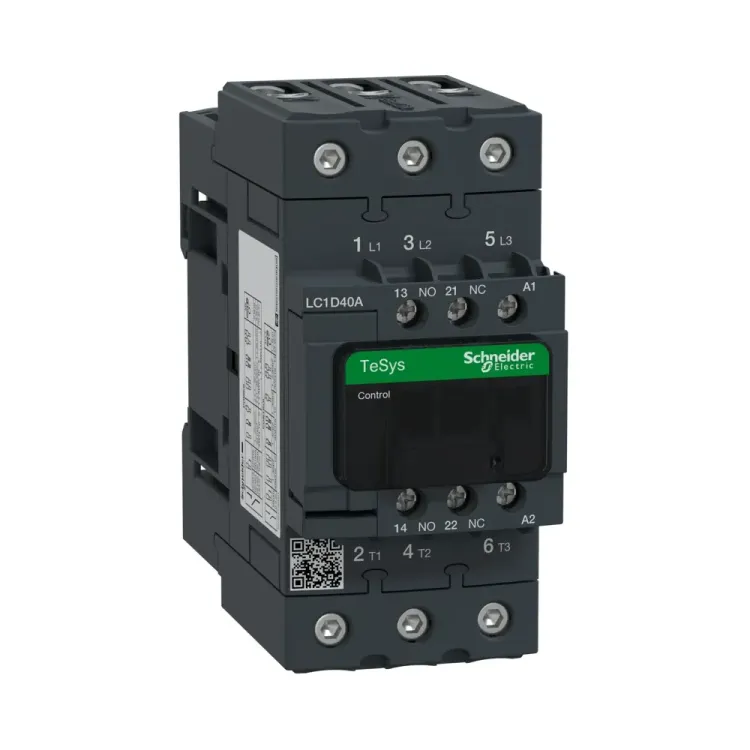

Front view of Schneider TeSys D 40A 110V AC 3P Contactor LC1D40AF7

Photo is representative

Schneider TeSys D 40A 110V AC 3P Contactor - LC1D40AF7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D40AF7
GTIN —
Stock status: In stock

priced individually

Net price: £126.08

Gross price

£151.29

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 40A 110V Coil AC 3P contactor (LC1D40AF7), suitable for motor control and resistive load applications. AC-3 rated 40A at 400V for motors up to 18.5 kW at 400V. DIN rail or panel mounting with screw clamp terminals. Includes 1 NO + 1 NC mechanically linked auxiliary contacts. IEC 60947-4-1 and IEC 60947-5-1 compliant with robust mechanical and electrical durability. Features wide coil voltage tolerance, EverLink power terminals, and IP20 front face protection for control panel and automation integration.

Specifications

Current Rating

40A AC-3, 60A AC-1 at ≤440V

Control Coil

110V AC 50/60Hz

Contact Configuration

3P (3 NO) + 1 NO + 1 NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals (EverLink for power, clamp for control/aux)

Mounting Method

35mm DIN rail or panel mount

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Motor Rating

18.5kW at 400V (AC-3), 22kW at 415-440V

Mechanical Life

6 million operations

Electrical Life

1.5 million cycles AC-3

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947, UL, CSA

Schneider Electric
