NYY-J 4 Core 1.5mm2 Unarmoured PVC Mains Control Cable 600 1000V

Photo is representative

NYY-J 4 Core 1.5mm2 Unarmoured PVC Mains Control Cable 600 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £1.92

Gross price

£2.31

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured PVC power and control cable, 4 core 1.5mm². Rated 600/1000V with Class 1 solid copper conductors and full PVC insulation, filler, and outer sheath.

Suitable for fixed indoor installations — cable trays, conduit, or clipped direct to walls where mechanical damage risk is low. Not rated for direct burial.

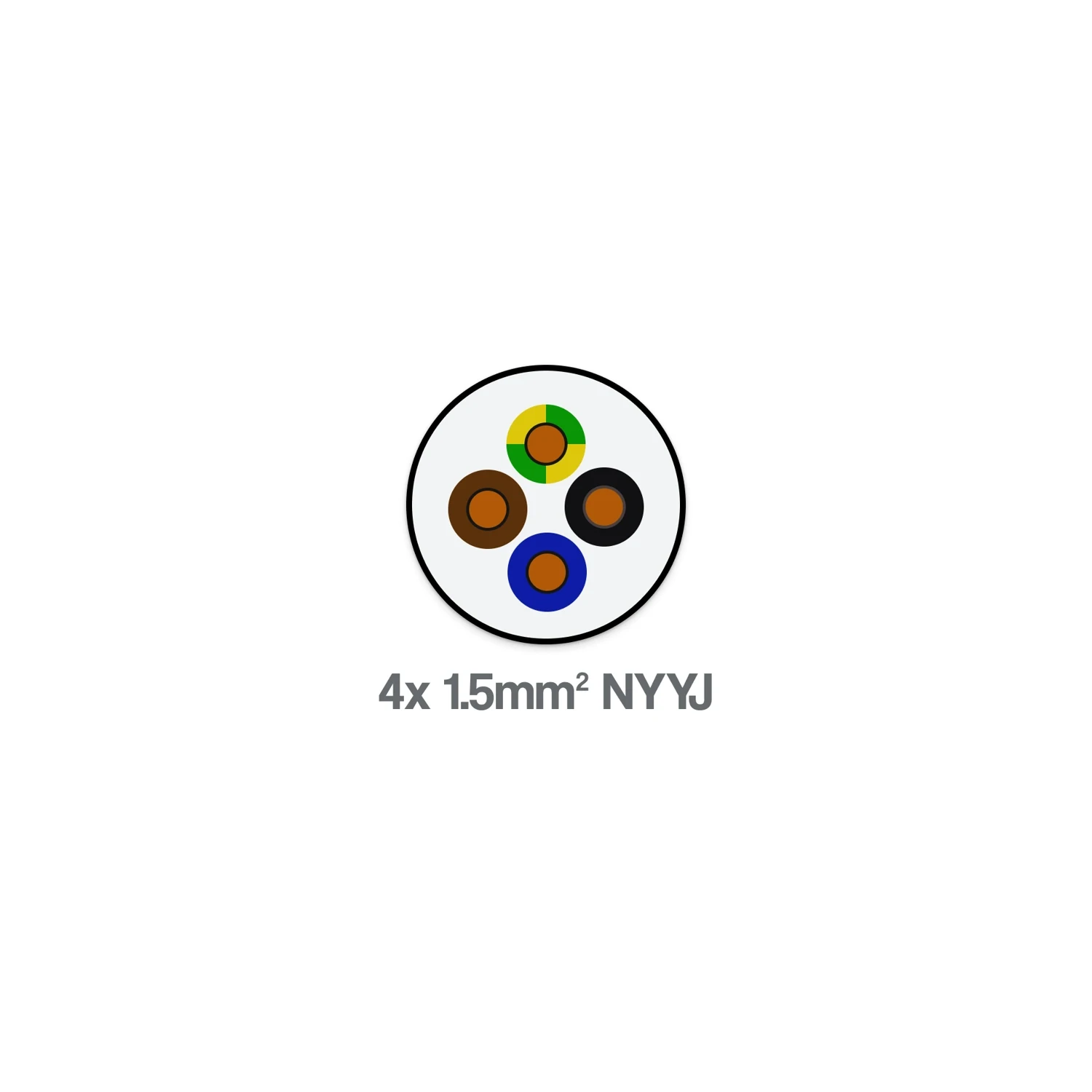

  • 4 cores: Brown, Blue, Black, Green/Yellow
  • OD: 11.8mm — gland size 20, nylon cleat size 0.5
  • Minimum bend radius: 12 x OD
  • Operating temp: -15°C to +70°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Voltage Rating

600/1000V

Conductor Size

1.5mm²

Number of Cores

4

Conductor Type

Class 1 solid copper

Stranding

1/1.38mm

Core Colours

Brown, Blue, Black, Green/Yellow

Insulation Material

PVC

Filler Material

PVC

Outer Sheath Material

PVC

Overall Diameter

11.8mm

Weight

220kg/km

Minimum Bending Radius

12 x Overall Diameter

Operating Temperature

-15°C to +70°C

Gland Size

20

Nylon Cleat Size

0.5

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
