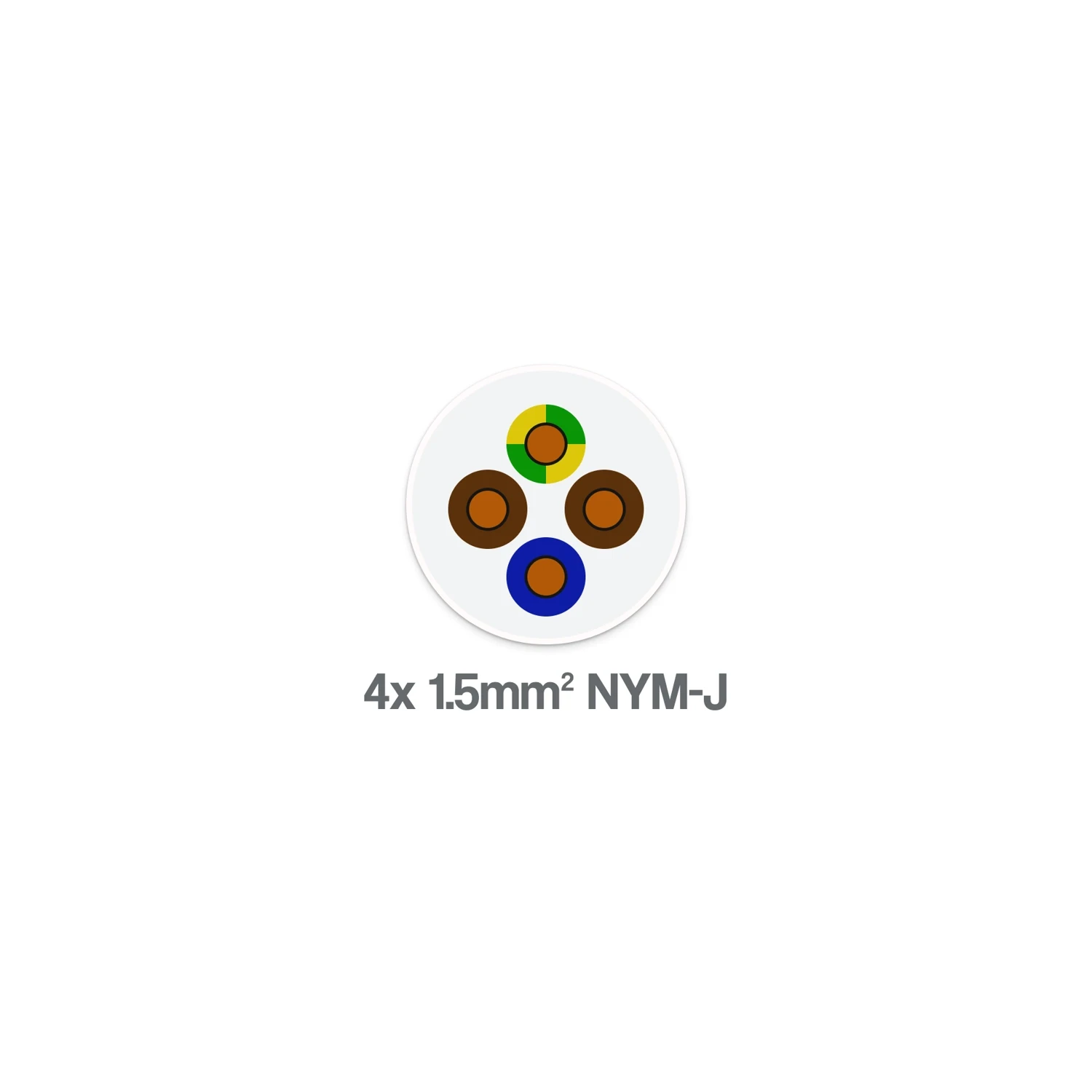

NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll BLUE415NYM1

Photo is representative

NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll BLUE415NYM1

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BLUE415NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.61

Gross price

£1.93

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4 core 1.5mm² NYM-J cable with solid Class 1 copper conductors, PVC insulation and PVC sheath. Rated 300/500V. Suitable for dry, moist and wet environments — including under plaster and in concrete. Not suitable for direct sunlight exposure.

  • Current carrying capacity: 19A
  • Core ID: Brown, Brown, Blue, Green/Yellow
  • Operating temp: -30°C to +70°C (min install temp 0°C)
  • Voltage drop (3⁄4 core, 3-phase AC): 27 mV/A/m
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Voltage Rating

300/500 V

Current Carrying Capacity

19 A

Number of Cores

4

Conductor Size

1.5 mm²

Conductor Type

Solid copper, Class 1

Stranding

1/1.38 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Core Identification

Brown, Brown, Blue, Green/Yellow

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

DC Resistance at 20°C

12.1 Ω/km

Voltage Drop (3/4 core, 3-phase AC)

27 mV/A/m

Voltage Drop (2 core, single phase AC)

31 mV/A/m

Weight

140 kg/km

Cable Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
