NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll

Photo is representative

NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.62

Gross price

£1.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 4 core 1.5mm² PVC cable on a 100m roll. Suitable for fixed wiring in dry, moist, or wet areas — under plaster, in concrete, indoor and outdoor installations.

Not suitable for direct sunlight exposure. Do not install below 0°C.

  • 300/500V rated, 19A current carrying capacity
  • Solid copper conductors (Class 1), 1⁄1.38mm stranding

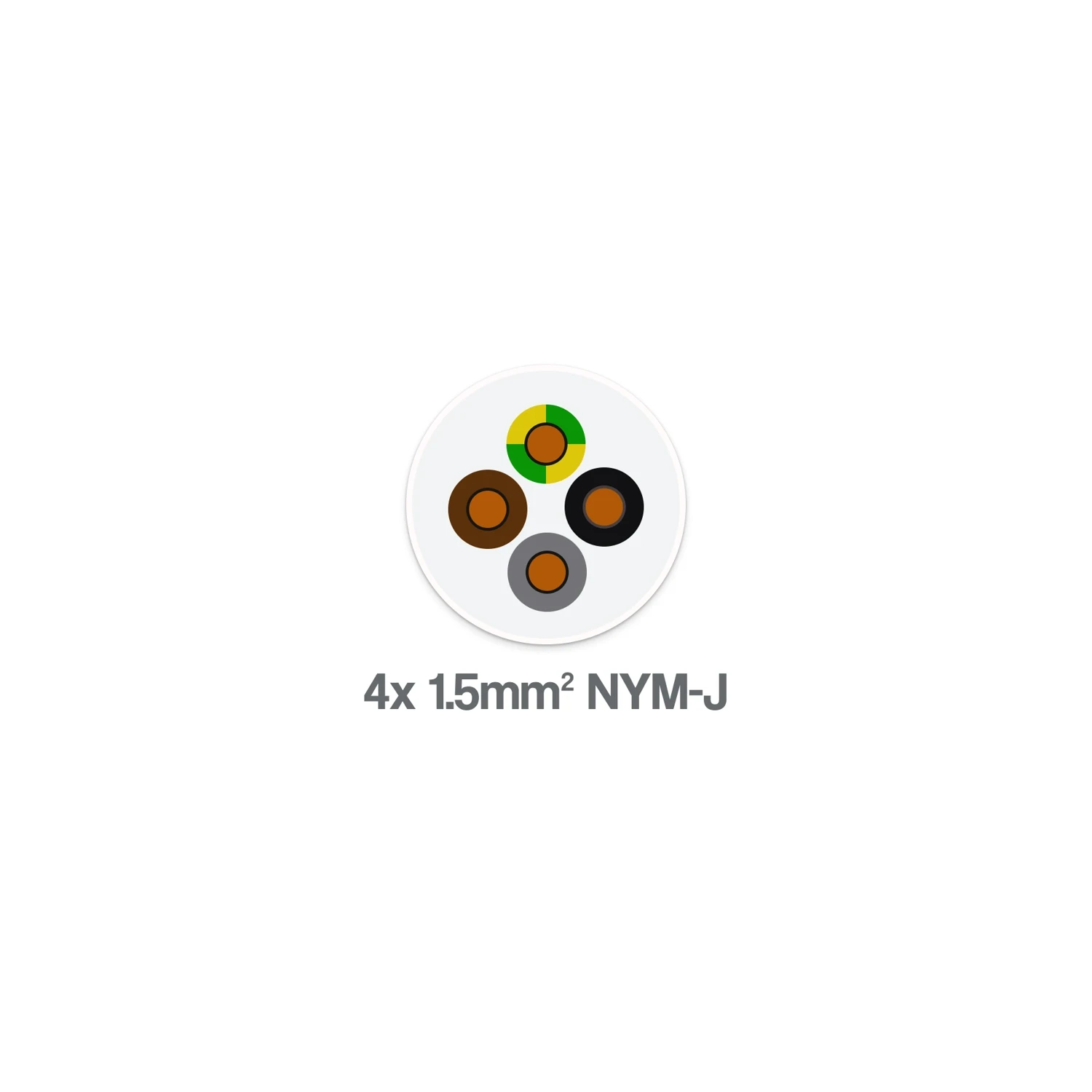

  • Core ID: Brown, Black, Grey, Green/Yellow
  • DC resistance at 20°C: 12.1 Ω/km
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Conductor Size

1.5 mm²

Number of Cores

4

Voltage Rating

300/500 V

Current Carrying Capacity

19 A

Conductor Type

Solid copper, Class 1

Stranding

1/1.38 mm

Insulation

PVC to IEC 60332-1-2

Sheath

PVC to IEC 60332-1-2

Core Identification

Brown, Black, Grey, Green/Yellow

DC Resistance at 20°C

12.1 Ω/km

AC Resistance at 70°C

12.1 Ω/km

Voltage Drop (Single Phase AC)

31 mV/A/m

Voltage Drop (Three Phase AC)

27 mV/A/m

Inductance

0.329 mH/km

Operating Temperature

-30°C to +70°C

Installation Temperature

Not below 0°C

Weight

140 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
