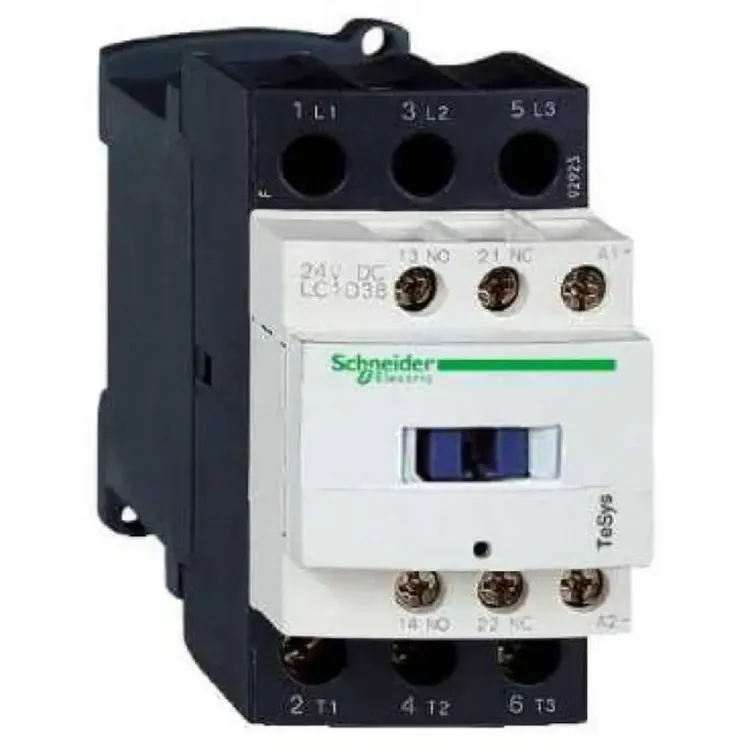

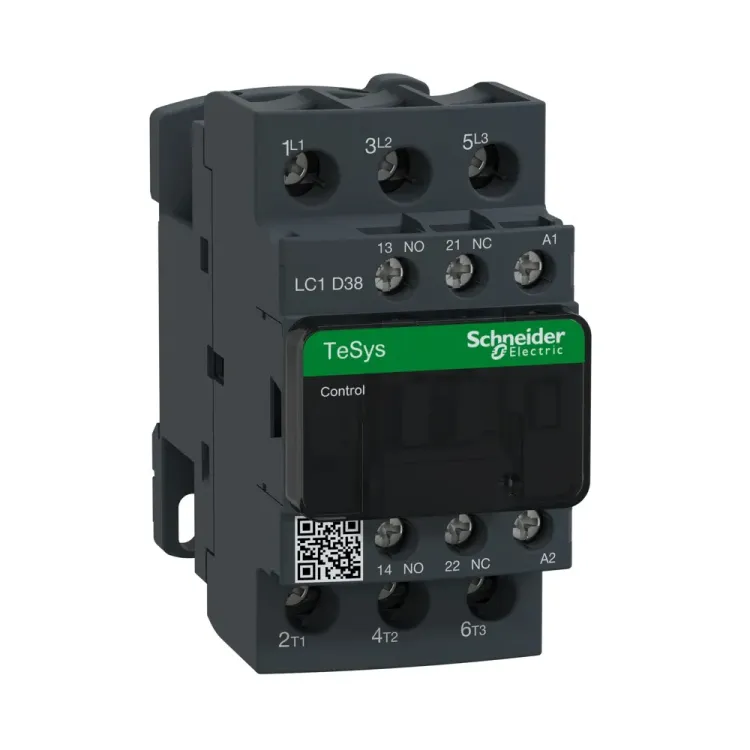

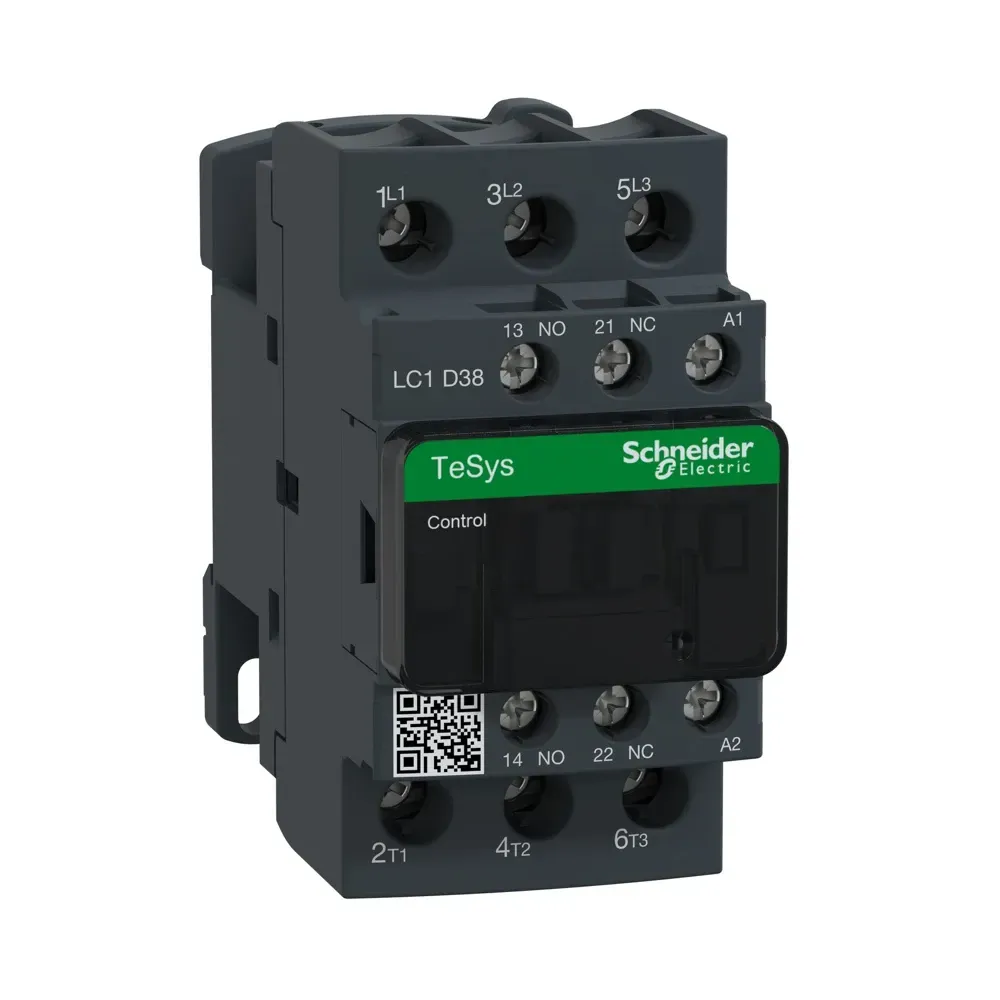

Schneider TeSys D 38A 400V AC 3P Contactor LC1D38V7 front view

Photo is representative

Schneider TeSys D 38A 400V AC 3P Contactor - LC1D38V7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D38V7
GTIN —
Stock status: In stock

priced individually

Net price: £139.32

Gross price

£167.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 38A 400V Coil AC 3P contactor (LC1D38V7), suitable for direct-on-line (DOL) motor starting, star-delta, and reversing applications in industrial control panels. AC-3 rated at 38A for motors up to 18.5kW at 400/415/440V AC with screw clamp terminals. 3 normally open (3NO) main contacts and a 400V AC 50/60Hz coil. Compact DIN rail or plate mounting. Auxiliary 1NO+1NC contacts included for signaling. Compliant with IEC 60947-4-1, IEC 60947-5-1, and suitable for demanding motor control environments.

Specifications

Current Rating

38A AC-3 / 50A AC-1

Control Coil

400V AC 50/60Hz

Contact Configuration

3P (3NO) + 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or plate mounting

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Motor Rating

18.5kW at 400/415/440V AC (AC-3)

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, UL 60947-4-1, CSA certified
