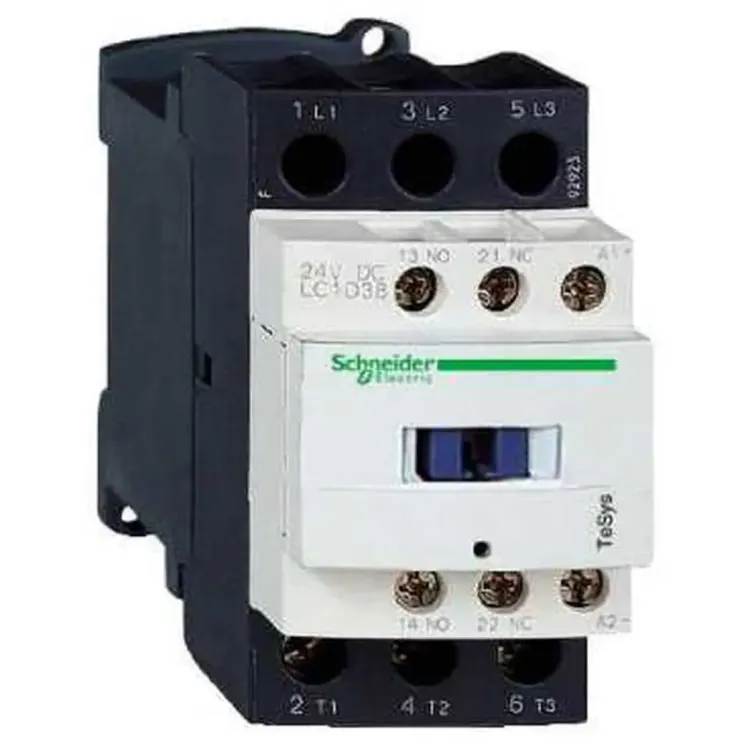

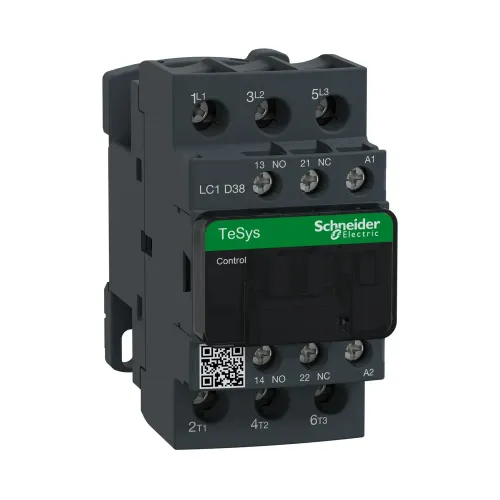

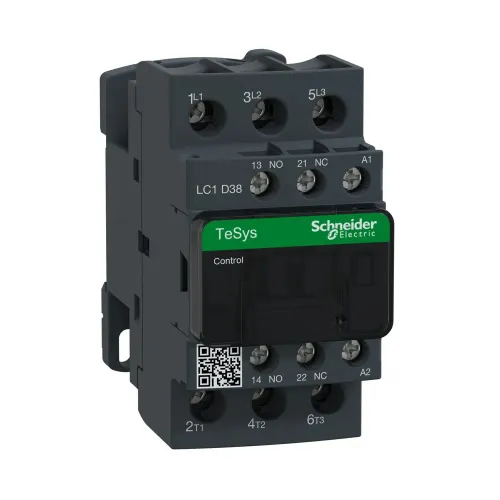

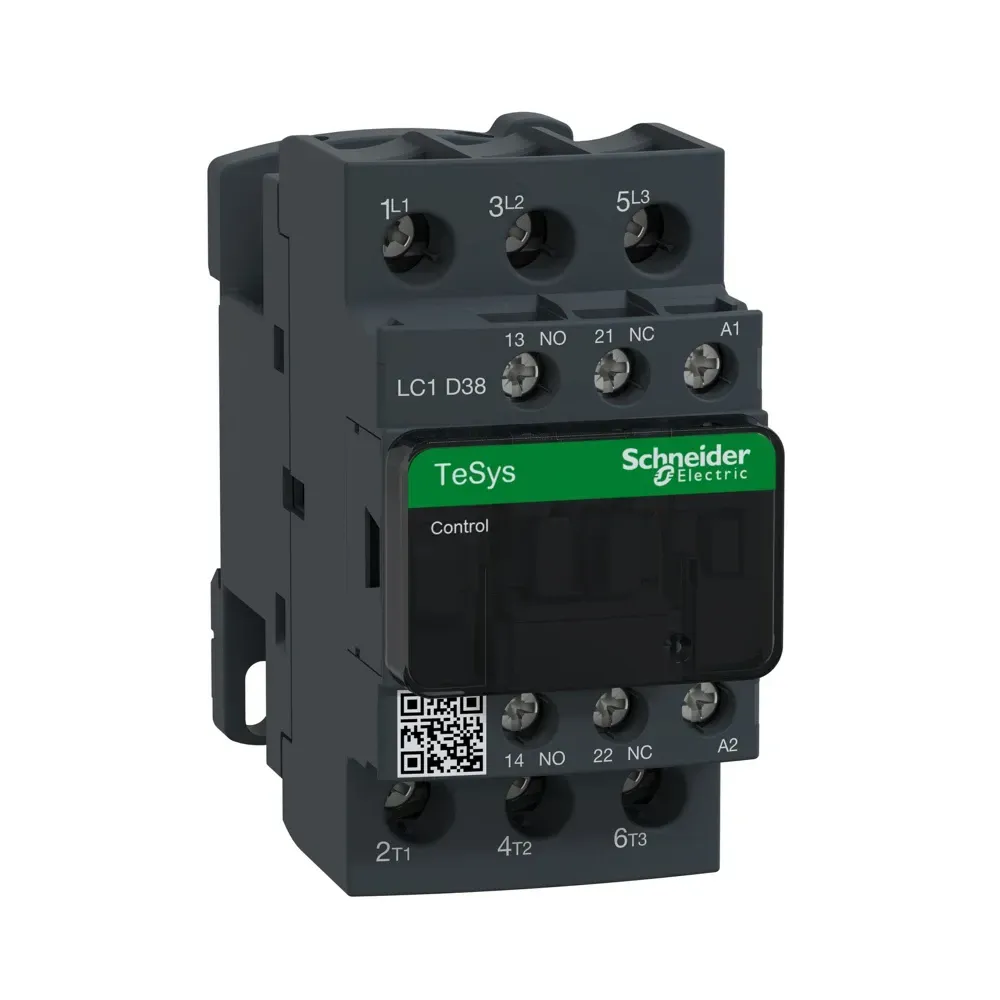

Schneider LC1D38B7 TeSys D 38A 24V AC 3P Contactor front view

Photo is representative

Schneider TeSys D 38A 24V AC 3P Contactor - LC1D38B7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D38B7
GTIN —
Stock status: 6 in stock

priced individually

Net price: £138.66

Gross price

£166.39

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 38A 24V Coil AC 3P contactor (LC1D38B7), suitable for motor control and resistive load switching in industrial panels. Rated 38A AC-3 at up to 440V for motors up to 18.5kW. Screw clamp terminals for secure wiring. 24V AC 50/60Hz control coil. Auxiliary 1NO+1NC contacts included for signaling. DIN rail and panel mounting flexibility. IEC 60947-4-1 and 60947-5-1 compliant for reliable operation in harsh environments.

Specifications

Current Rating

38A AC-3, 50A AC-1

Control Coil

24V AC 50/60Hz

Contact Configuration

3P (3NO) + 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or panel mount

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, UL 60947-4-1

Schneider Electric
