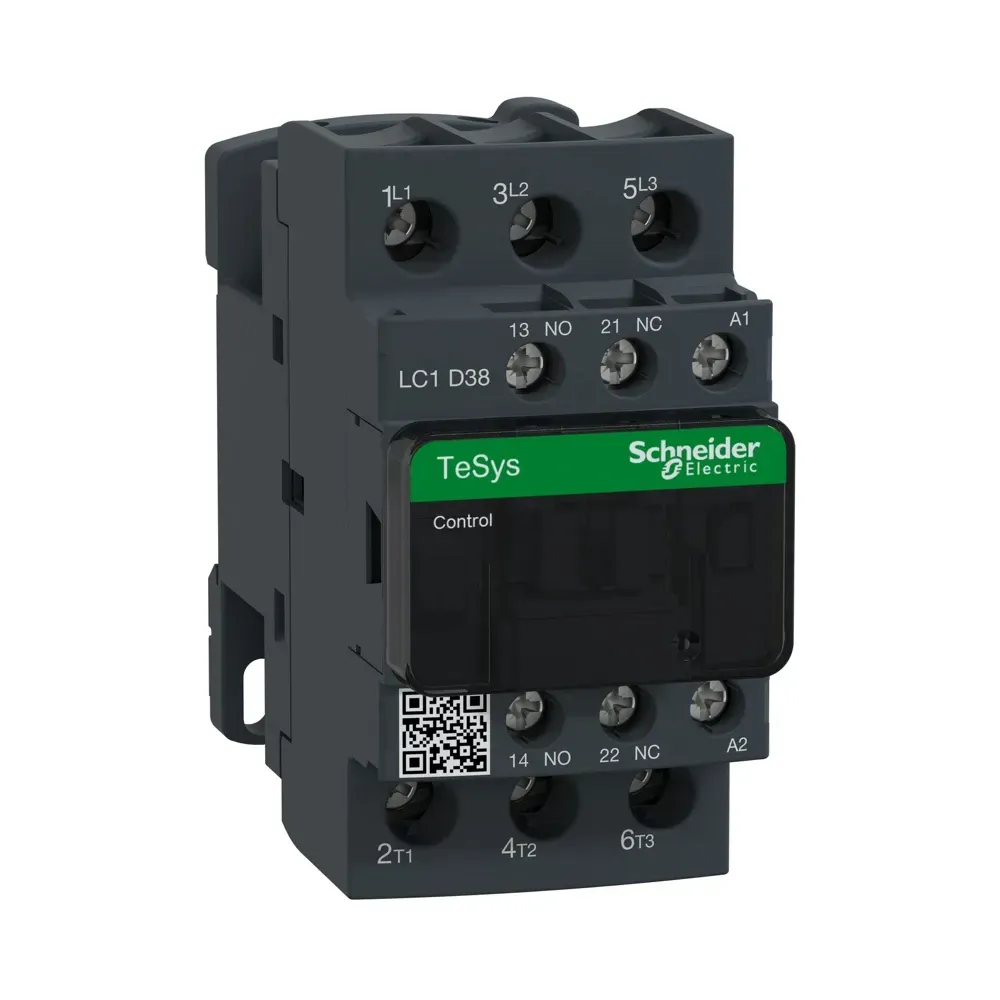

Schneider TeSys D 38A 230V AC 3P Contactor LC1D38P7 front view

Photo is representative

Schneider TeSys D 38A 230V AC 3P Contactor - LC1D38P7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D38P7
GTIN —
Stock status: 8 in stock

priced individually

More arriving soon

Net price: £138.66

Gross price

£166.39

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 38A 230V Coil AC 3P contactor (LC1D38P7), suitable for direct-on-line (DOL) motor starting and general industrial motor control up to 18.5kW at 400-690V AC. AC-3 rated for 38A at up to 440V with screw clamp terminals for reliable wiring. The contactor features 1 NO + 1 NC auxiliary contacts, mechanical and electrical durability, and front-face IP20 protection. DIN rail or panel mounting supports flexible panel design. IEC 60947-4-1 and EN 60947-4-1 compliant for use in demanding industrial environments. Compatible with the full range of TeSys D series auxiliaries and accessories.

Specifications

Current Rating

38A AC-3 (at ≤440V), 50A AC-1

Control Coil

230V AC 50/60Hz

Contact Configuration

3P (3NO) + 1NO+1NC auxiliaries

Frame Size

D-frame TeSys Deca

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or panel mount

Motor Rating

Up to 18.5kW at 400-690V AC (AC-3)

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, UL, CSA, CCC

Schneider Electric
