Schneider Electric LRD350 37-50A thermal overload relay Class 10A

Photo is representative

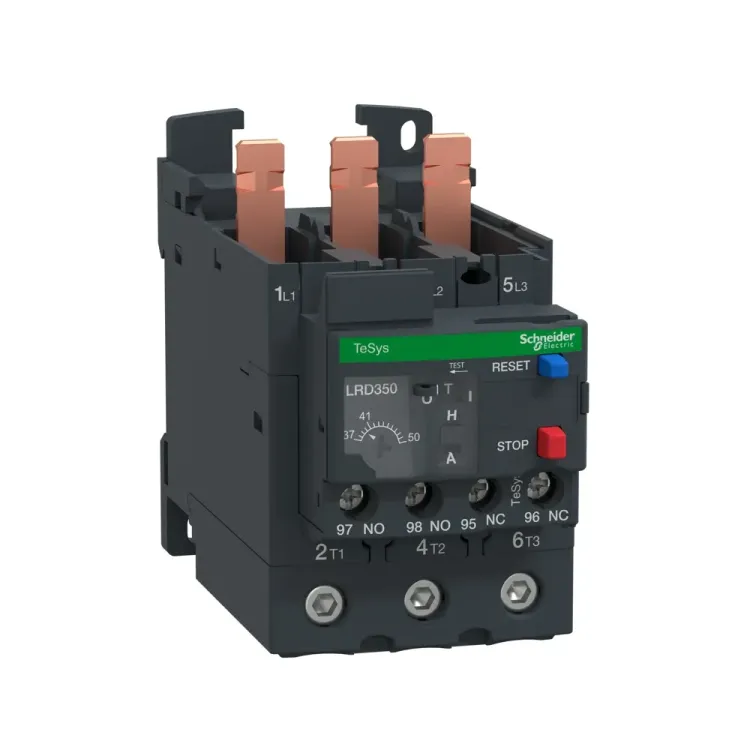

Schneider Electric LRD350 Thermal Overload Relay 37-50A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD350
GTIN 3389119215503
Stock status: 4 in stock

priced individually

More arriving soon

Net price: £105.78

Gross price

£126.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider Electric LRD350 37–50 A thermal overload relay (LRD350) from the TeSys Deca range, designed for motor protection. Class 10A trip characteristics, rated to 690 V AC (power circuit) and 600 V per CSA/UL. Adjustable thermal protection 37…50 A, manual reset via blue push-button and red stop push-button, auxiliary contacts 1NO+1NC and EverLink BTR screw power terminals. Direct mountable under contactors including LC1D65A, LC1D50A and LC1D40A. Temperature compensation -20…60 °C and phase-failure sensitivity for three-phase motor protection. IP20.

Specifications

Current Range

37-50A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690V AC maximum (power circuit); 600V per CSA/UL

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Direct mount under TeSys contactors (LC1D65A, LC1D50A, LC1D40A); plate/rail with accessories
