Plymouth Metal Distribution Board 36 Way 3 Row Surface Mount IP54 MC36/3

Photo is representative

Plymouth Metal Distribution Board 36 Way 3 Row Surface Mount IP54 MC36/3

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MC36
GTIN —
Stock status: 8 in stock

priced individually

More arriving soon

Net price: £135.08

Gross price

£162.09

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

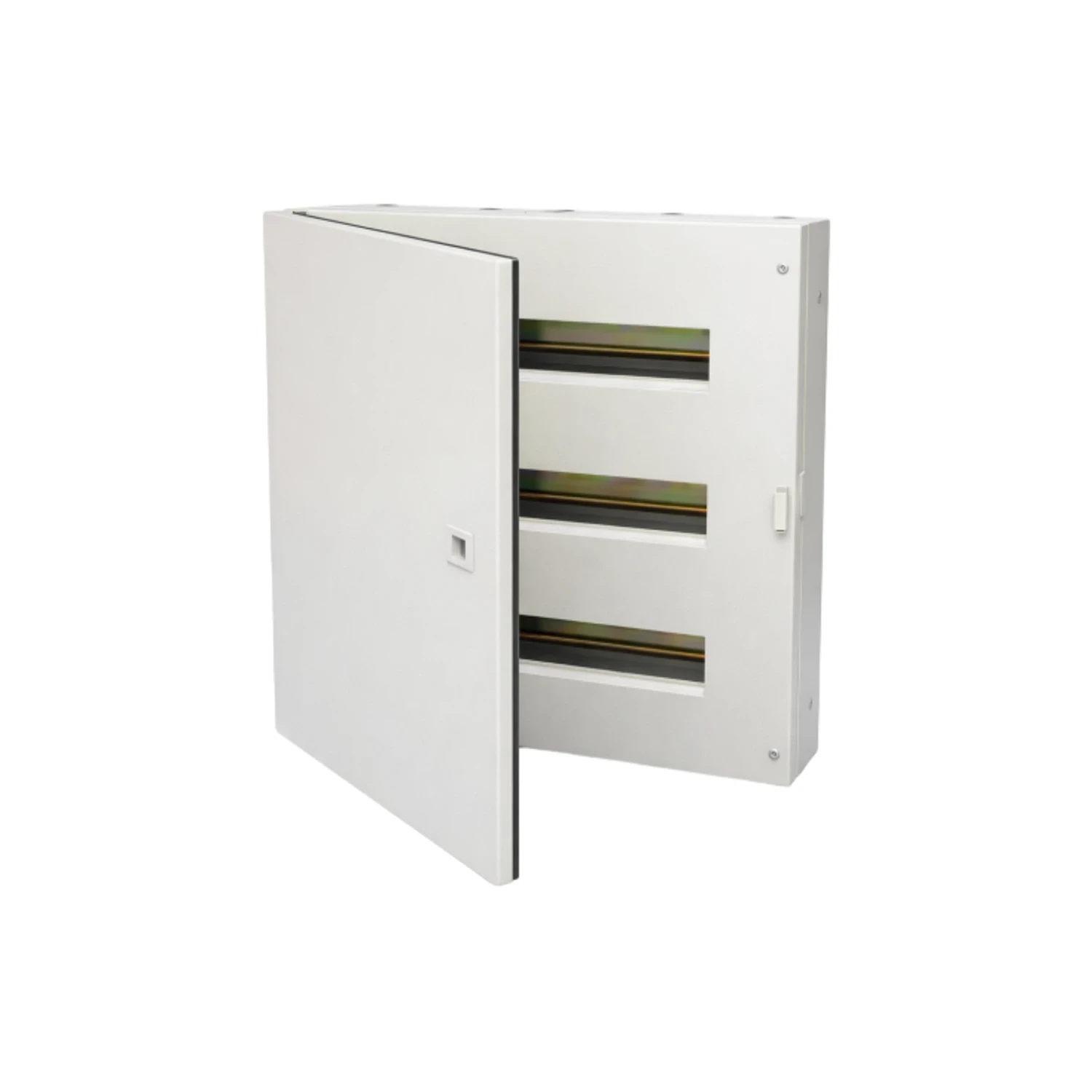

Empty surface mount metal enclosure for distribution board builds. The MC36/3 gives you 36 modules across 3 rows of 12, with DIN rail and neutral and earth bars included.

IP54 rated with a side opening door and standard lock — replaceable with a key lock if needed. M20 and M40 knockouts top and bottom. Powder coated steel body.

  • 36 modules total (3 × 12)
  • 125A rating
  • IP54, surface mount
  • M20 and M40 knockouts top and bottom
  • 500 H × 356 W × 90 D (mm), 7.5 kg
Specifications

Total Modules

36

Rows

3

Modules per Row

12

Rating

125A

IP Rating

IP54

Mount Type

Surface mounted

Door Type

Side opening

Lock Type

Standard lock (replaceable with lockable key lock)

Knockouts

M20 and M40 top and bottom

Body Finish

Powder coated

Height

500 mm

Width

356 mm

Depth

90 mm

Weight

7.5 kg

Certifications

CE, RoHS
