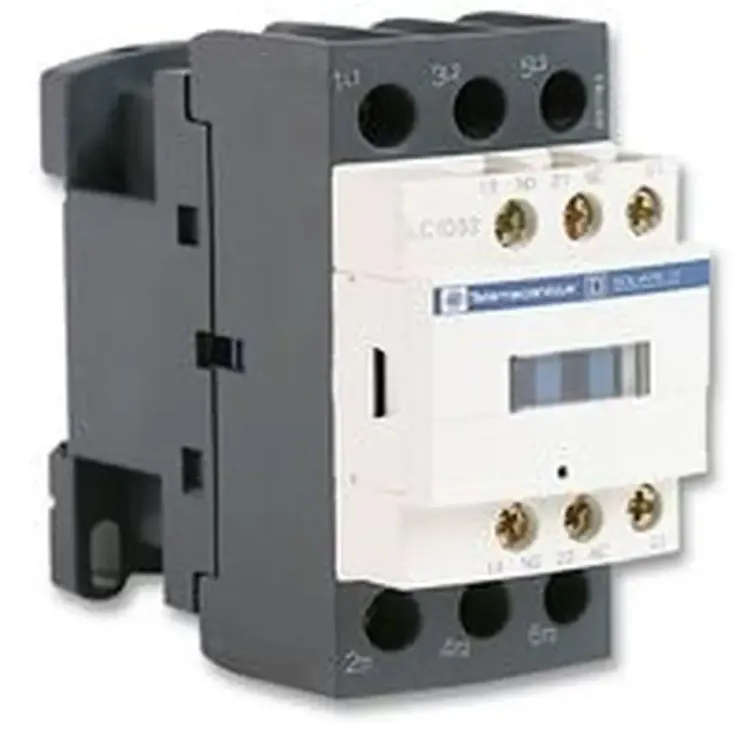

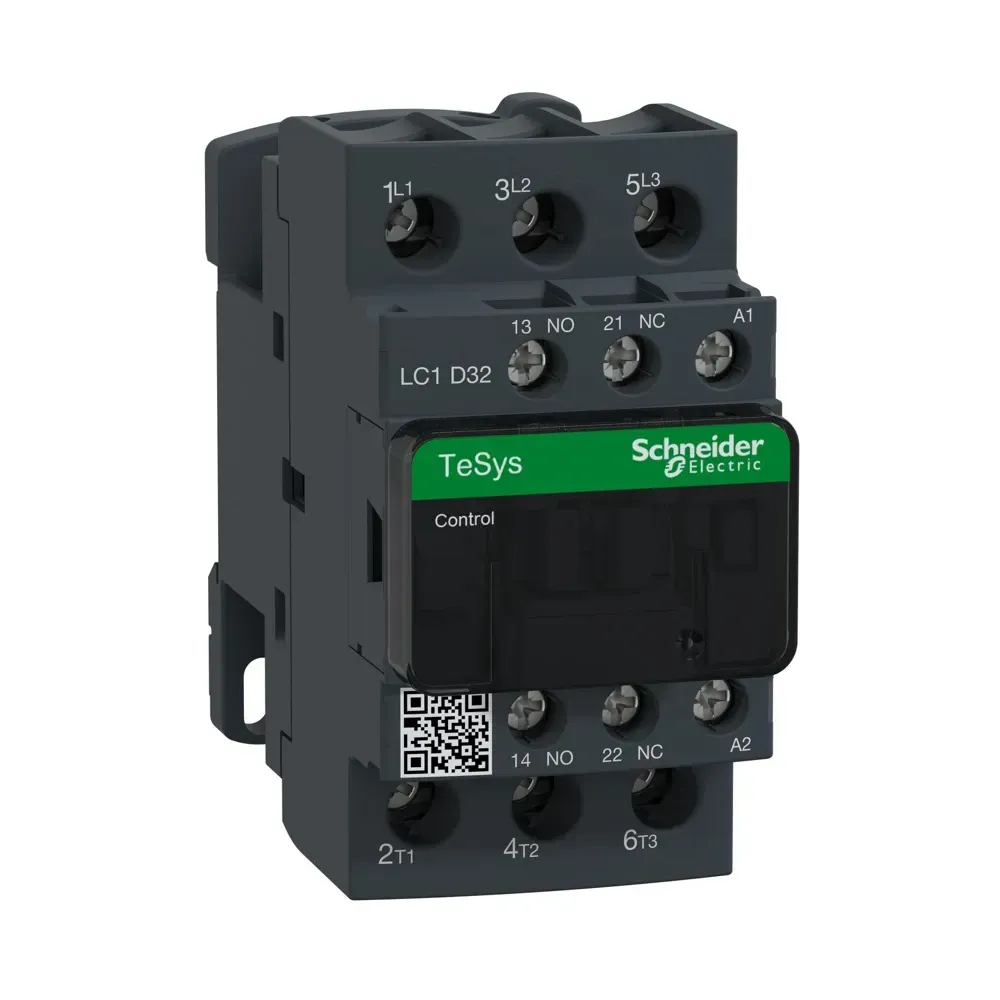

Schneider TeSys D LC1D32B7 32A 24V AC 3P contactor front view

Photo is representative

Schneider TeSys D 32A 24V AC 3P Contactor - LC1D32B7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D32B7
GTIN 3389110350135
Stock status: In stock

priced individually

Net price: £112.21

Gross price

£134.65

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 32A 24V Coil AC 3P contactor (LC1D32B7), suitable for motor control and resistive load applications. Rated 32A AC-3 at <=440V and up to 15kW at 400V, making it ideal for DOL starting and reversible drives in industrial control panels. Features a 3 pole (3NO) contact configuration with additional 1NO+1NC auxiliary contacts, 24V AC control coil, screw clamp terminals, and mounting by DIN rail or panel. IEC 60947-4-1 and EN 60947-4-1 compliant. Compact D-frame design with robust mechanical and electrical durability for demanding environments.

Specifications

Current Rating

32A AC-3, 50A AC-1

Control Coil

24V AC 50/60Hz

Contact Configuration

3P (3 NO main) + 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or panel mount

Auxiliary Capability

Accepts up to 4 auxiliary contact blocks

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA

Schneider Electric
