Arctic Flexible 3 Core 4mm² Blue Sheath PVC Cable 300 500V BS6004 3183A

Photo is representative

Arctic Flexible 3 Core 4mm² Blue Sheath PVC Cable 300 500V BS6004 3183A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 34ARTBLUE
GTIN —
Stock status: In stock

priced per meter

Net price: £2.58

Gross price

£3.10

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Arctic grade 3-core flexible cable, blue sheath. Rated for low-temperature environments — handles down to -40°C without issue. Use it for portable tools, temporary supplies, and indoor/outdoor flexible connections where standard flex won’t cut it.

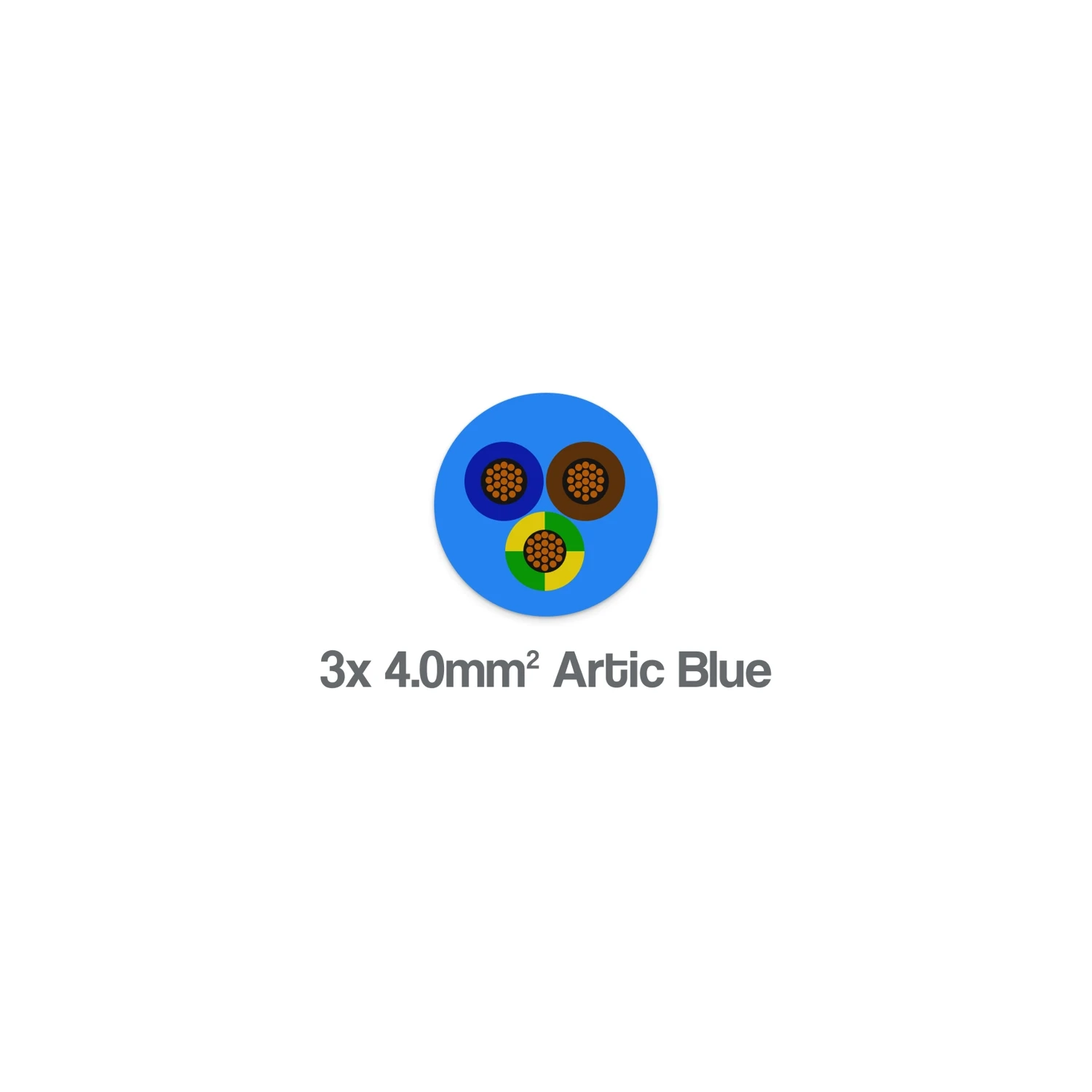

Core colours are Brown, Blue, and Green/Yellow. 300/500V rated, Class 5 stranded copper throughout.

  • 4mm² conductor, 56⁄0.30 stranding
  • OD: 11.4mm — gland size 20
  • Min bending radius (fixed): 6 x OD
  • Flame retardant to BS EN 60332-1-2
  • Standards: BS6004, BS EN/IEC 60228, BS EN 50265
Specifications

Conductor Size

4 mm²

Number of Cores

3

Voltage Rating

300/500V

Conductor Type

Class 5 flexible, stranded copper

Stranding

56/0.30

Insulation Material

PVC

Outer Sheath Material

PVC

Sheath Colour

Blue

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

11.4 mm

Weight

240 kg/km

Gland Size

20

Min Bending Radius (Fixed)

6 x overall diameter

Operating Temperature

-40°C to +70°C

Flame Retardancy

BS EN 60332-1-2

Standards

BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50265, BS6004
