NYM-J 3 Core 2.5mm2 PVC Wiring Cable 300 500V 100m Roll

Photo is representative

NYM-J 3 Core 2.5mm2 PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.00

Gross price

£2.40

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

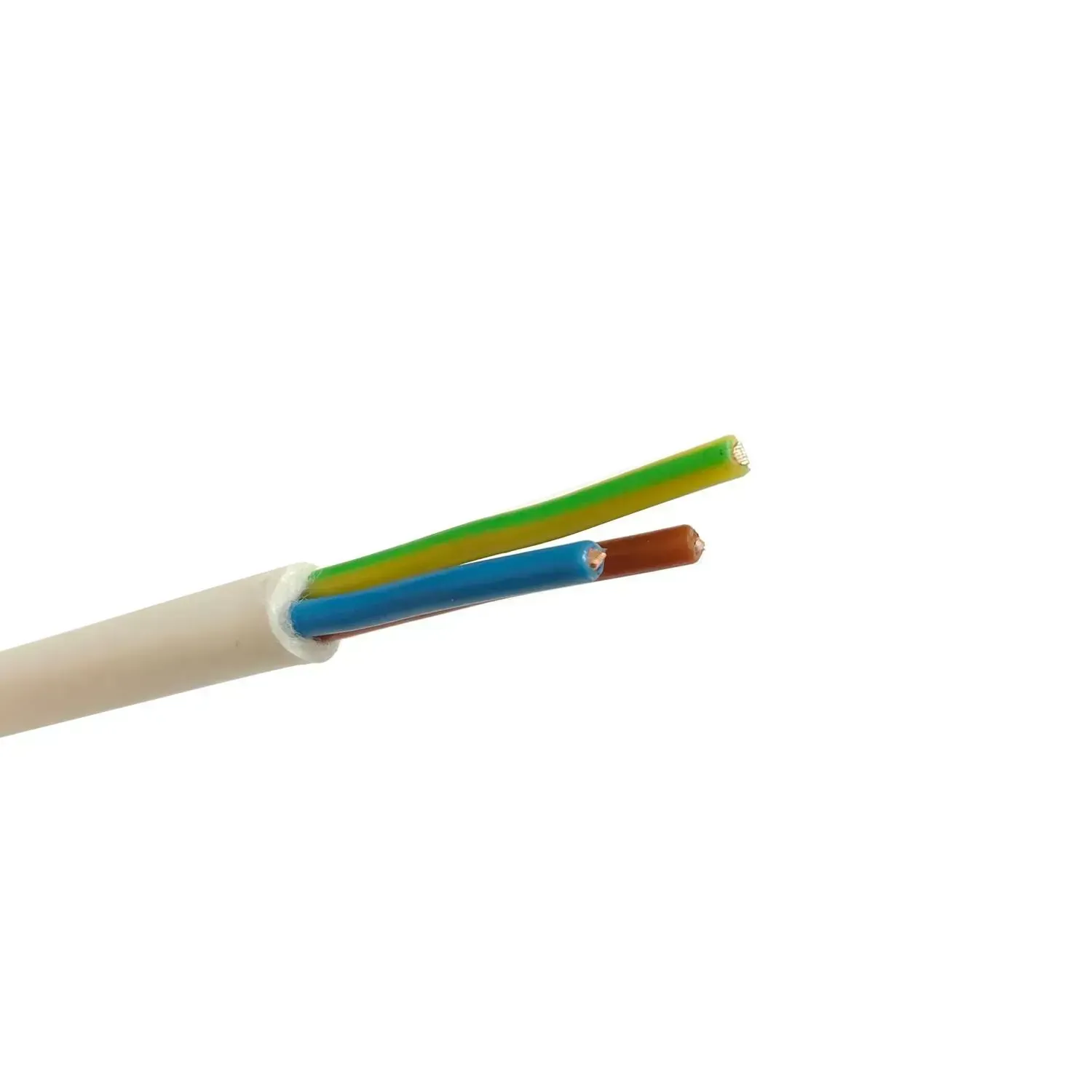

NYM-J 3-core 2.5mm² PVC wiring cable supplied on 100m rolls. Solid copper conductors (Class 1), PVC insulated and sheathed to IEC 60332-1-2.

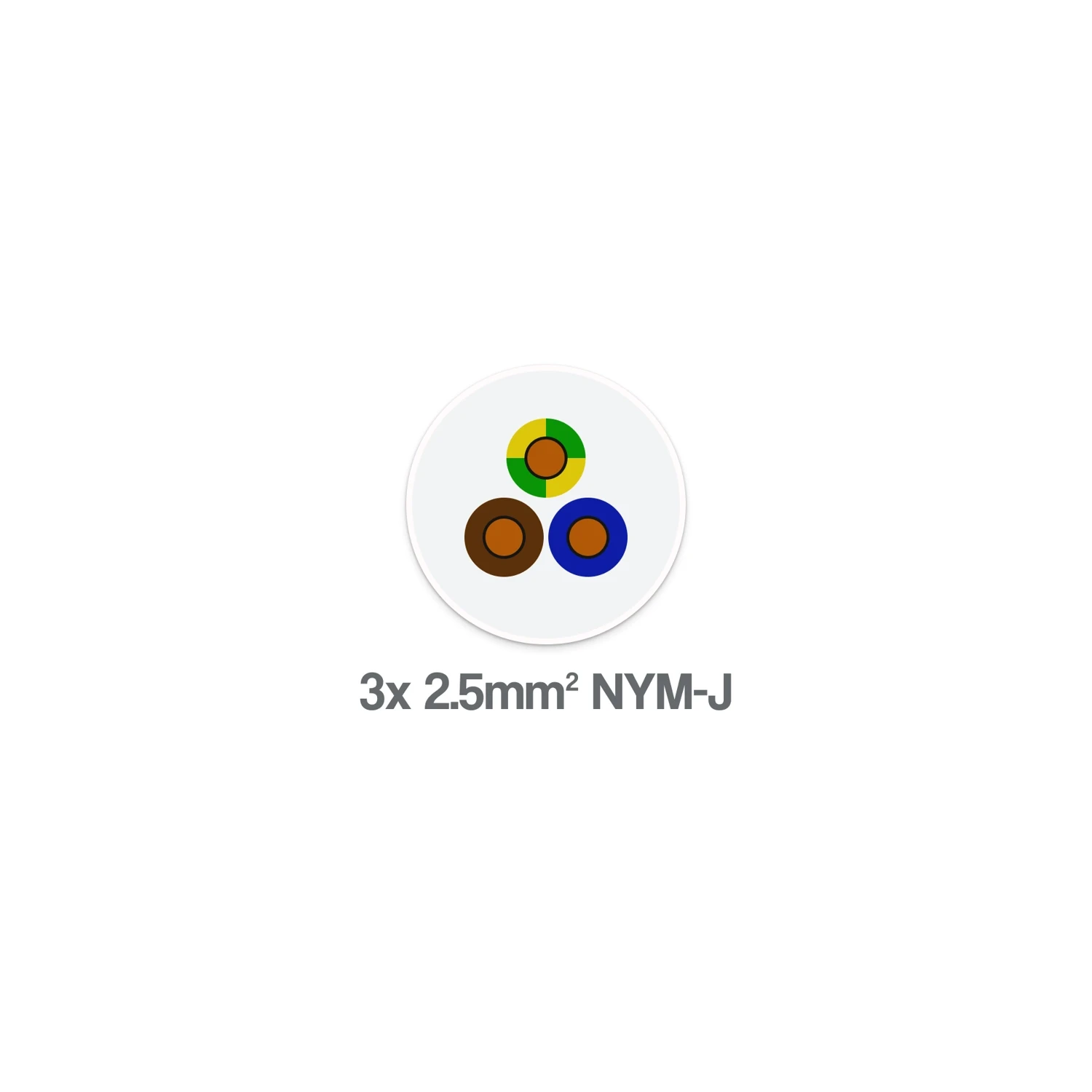

Suitable for dry, moist, and wet areas — including under plaster and in concrete. Cores identified brown, blue, and green/yellow.

  • Voltage rating: 300/500V
  • Current carrying capacity: 25A
  • DC resistance at 20°C: 7.41 Ω/km
  • Voltage drop (3-phase AC): 16 mV/A/m
  • Operating temp: -30°C to +70°C (installation min: 0°C)
Specifications

Cable Type

NYM-J

Number of Cores

3

Conductor Size

2.5 mm²

Stranding

1/1.78 mm

Conductor Material

Solid copper, Class 1

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500V

Current Carrying Capacity

25A

DC Resistance at 20°C

7.41 Ω/km

AC Resistance at 70°C

2.5 Ω/km

Inductance

0.318 mH/km

Voltage Drop (3-phase AC)

16 mV/A/m

Voltage Drop (single-phase AC)

19 mV/A/m

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

Weight

165 kg/km

Core Identification

Brown, Blue, Green/Yellow

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
