NYY-J 3 Core 16mm2 Unarmoured PVC Cable 600 1000V Blue Brown Earth 500m Drum

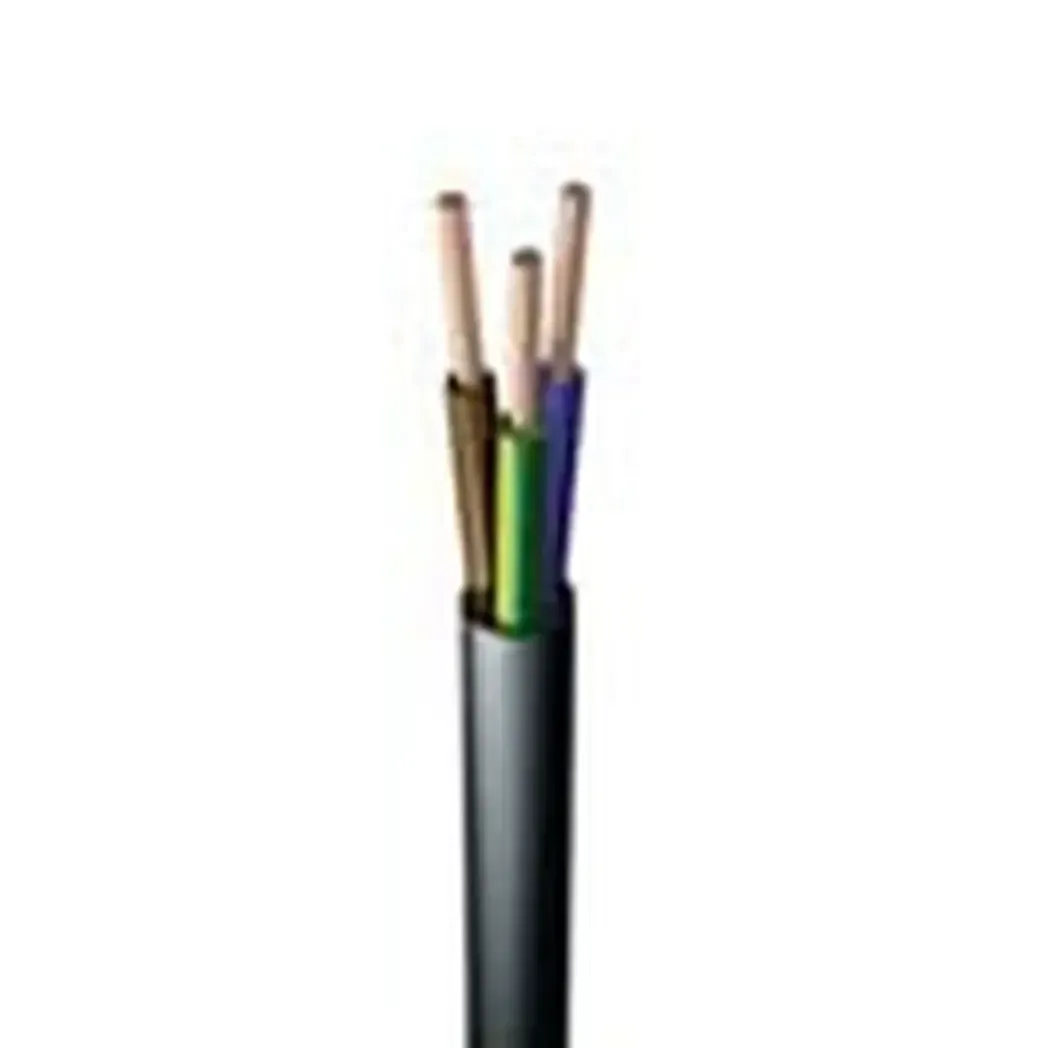

Photo is representative

NYY-J 3 Core 16mm2 Unarmoured PVC Cable 600 1000V Blue Brown Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 316NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £5.96

Gross price

£7.15

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured 3-core 16mm² PVC cable for fixed power and control installations. Suitable for cable trays, conduit, and wall-fixed runs. Not suitable for direct burial.

Class 2 stranded copper conductors (7⁄1.70mm), PVC insulation, PVC filler, PVC outer sheath.

  • Voltage: 0.6/1kV
  • Overall diameter: 20.2mm
  • Min. bending radius: 12 × OD
  • Operating temp (fixed): -15°C to +70°C
  • Gland size: 32
Specifications

Conductor Size

16 mm²

Number of Cores

3

Conductor Type

Class 2 stranded copper

Stranding

7/1.70 mm

Voltage Rating

600/1000 V

Insulation Material

PVC

Outer Sheath Material

PVC

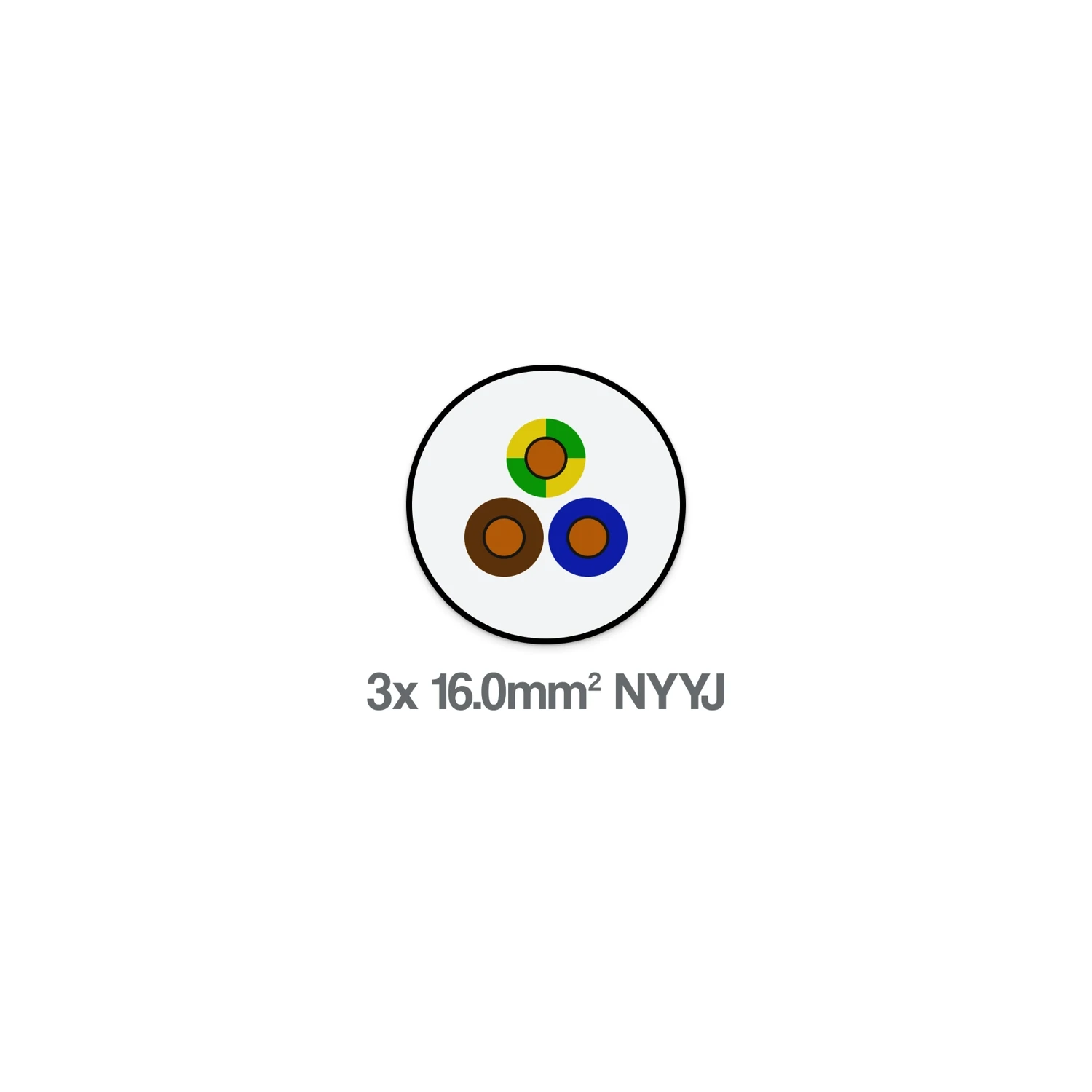

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

20.2 mm

Min. Bending Radius

12 × Overall Diameter

Operating Temperature

-15°C to +70°C

Weight

800 kg/km

Gland Size

32

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
