NYY-J 3 Core 10mm² PVC Unarmoured Power Cable 600 1000V Brown Blue Earth

Photo is representative

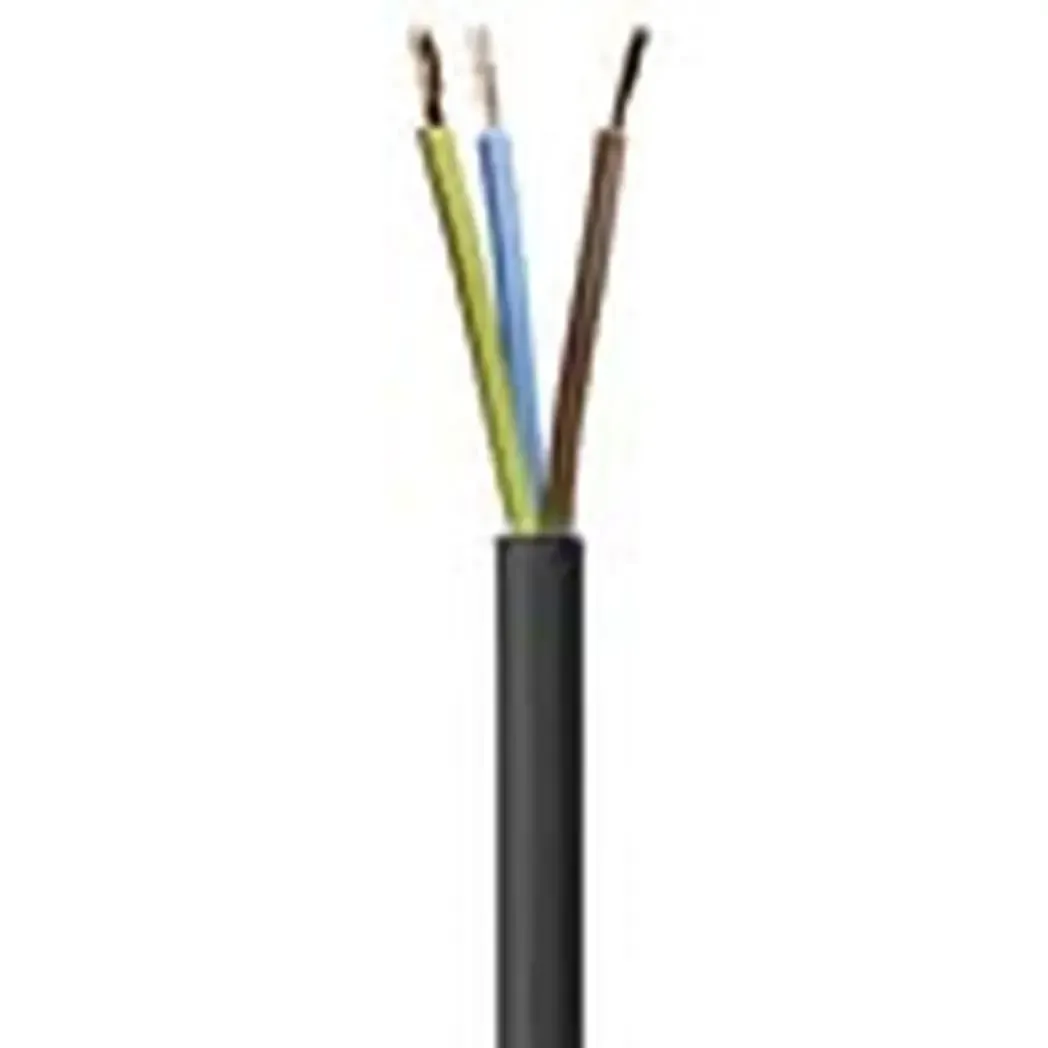

NYY-J 3 Core 10mm² PVC Unarmoured Power Cable 600 1000V Brown Blue Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 310NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £6.82

Gross price

£8.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured PVC mains and control cable, 3 core 10mm². Rated 600/1000V. Suitable for fixed installations indoors where mechanical damage risk is low — cable trays, conduit, or wall-fixed runs.

Class 2 stranded copper conductors, PVC insulation, PVC filler and PVC outer sheath.

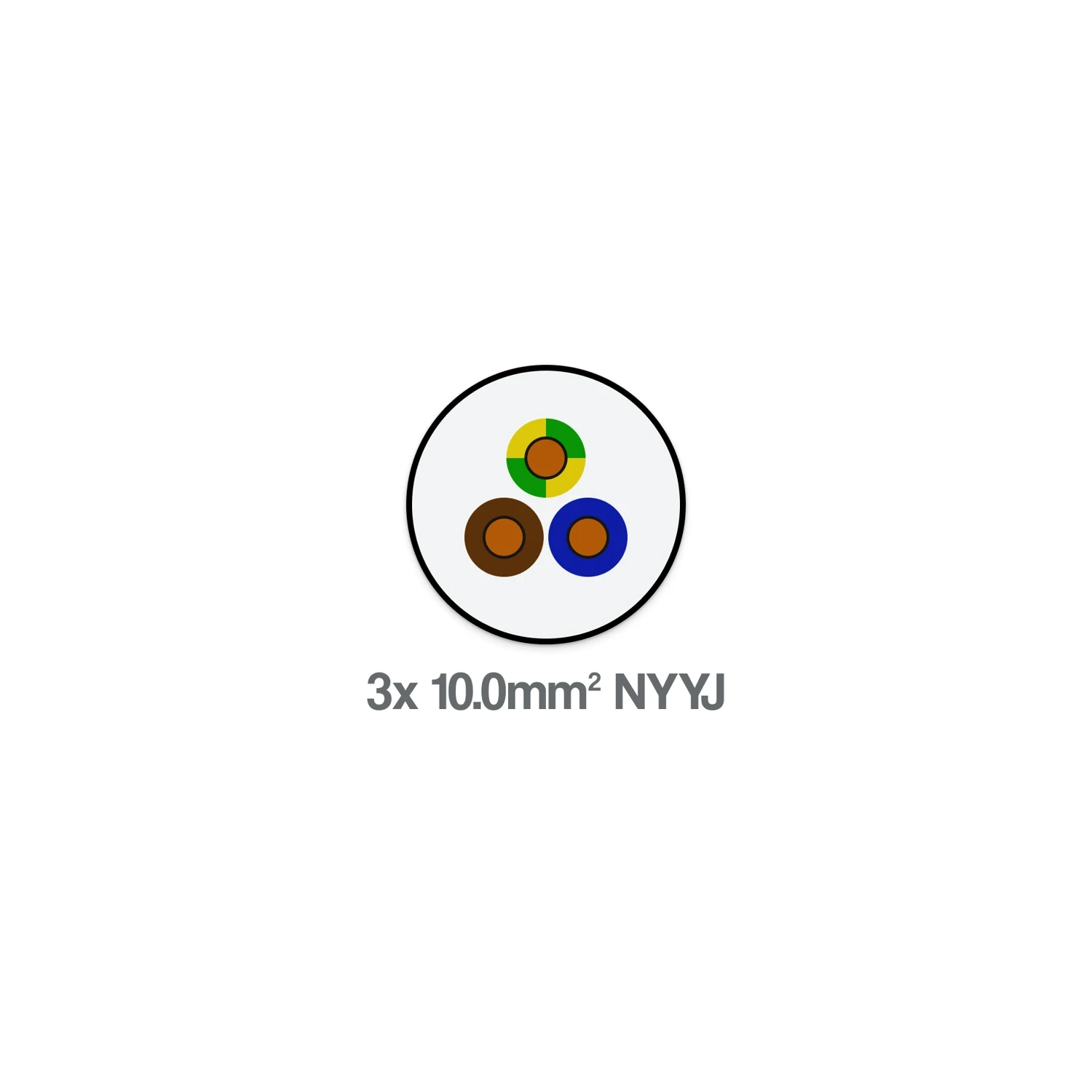

  • Cores: Brown, Blue, Green/Yellow
  • Overall diameter: 17.8mm
  • Min. bending radius: 12 x OD
  • Operating temp: -15°C to +70°C
  • Suggested gland size: 25
Specifications

Cable Type

NYY-J Unarmoured PVC

Conductor Size

10mm²

Number of Cores

3

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating

600/1000V

Conductor Type

Class 2 stranded copper

Stranding

7/1.35

Insulation Material

PVC

Outer Sheath Material

PVC

Overall Diameter

17.8mm

Weight

580 kg/km

Min. Bending Radius

12 x overall diameter

Operating Temperature

-15°C to +70°C

Flame Retardancy

BS EN 60332-1-2

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
