NYM-J 3 Core 1.5mm² PVC Wiring Cable 300 500V 100m Roll

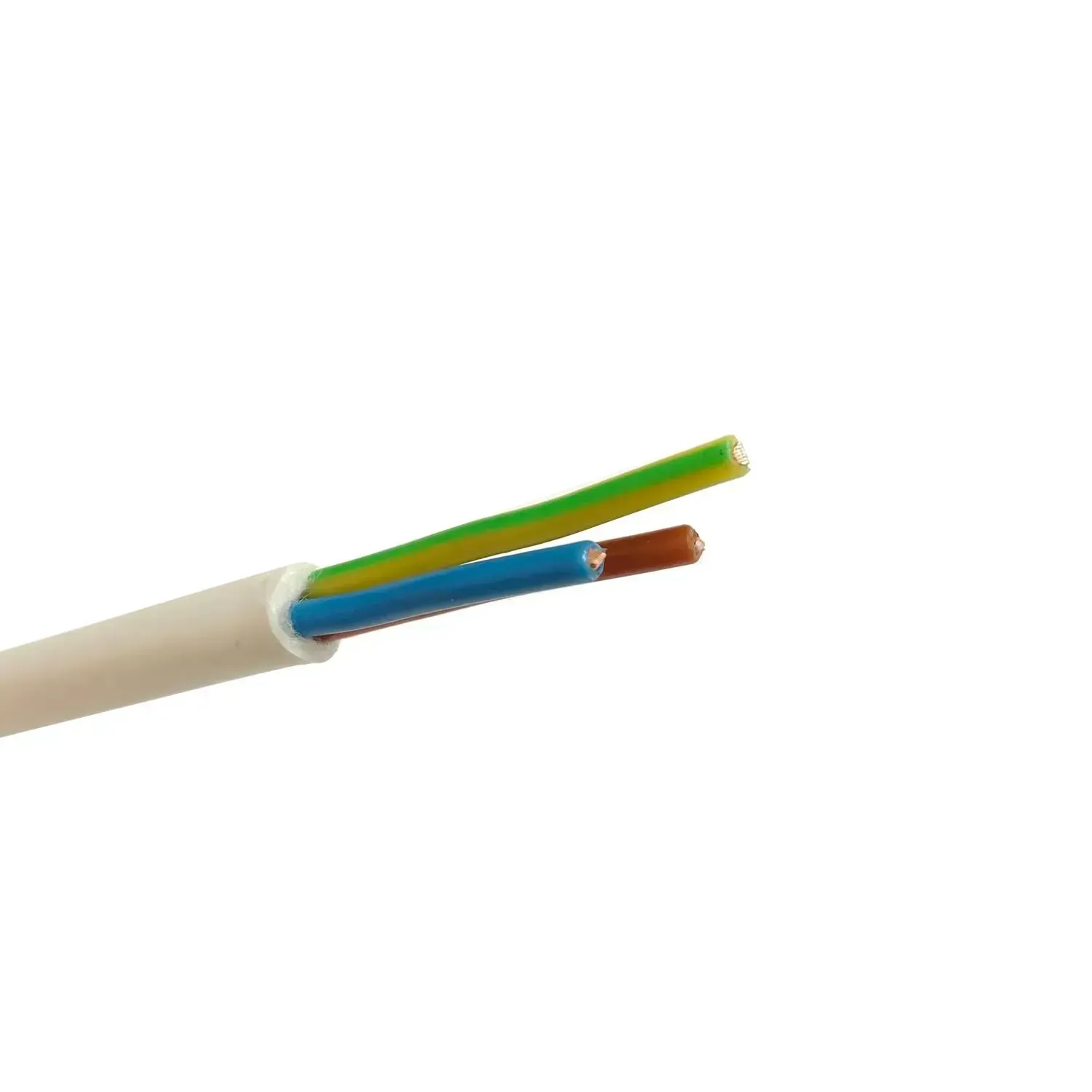

Photo is representative

NYM-J 3 Core 1.5mm² PVC Wiring Cable 300 500V 100m Roll

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315NYM1-ROLL
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.27

Gross price

£1.53

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 3 core 1.5mm² PVC wiring cable on a 100m roll. Rated 300/500V with a 19A current carrying capacity. Solid Class 1 copper conductors with PVC insulation and sheath to IEC 60332-1-2.

Suitable for indoor and outdoor fixed wiring in dry, moist or wet locations — including under plaster and in concrete. Not suitable for direct sunlight exposure. Do not install below 0°C.

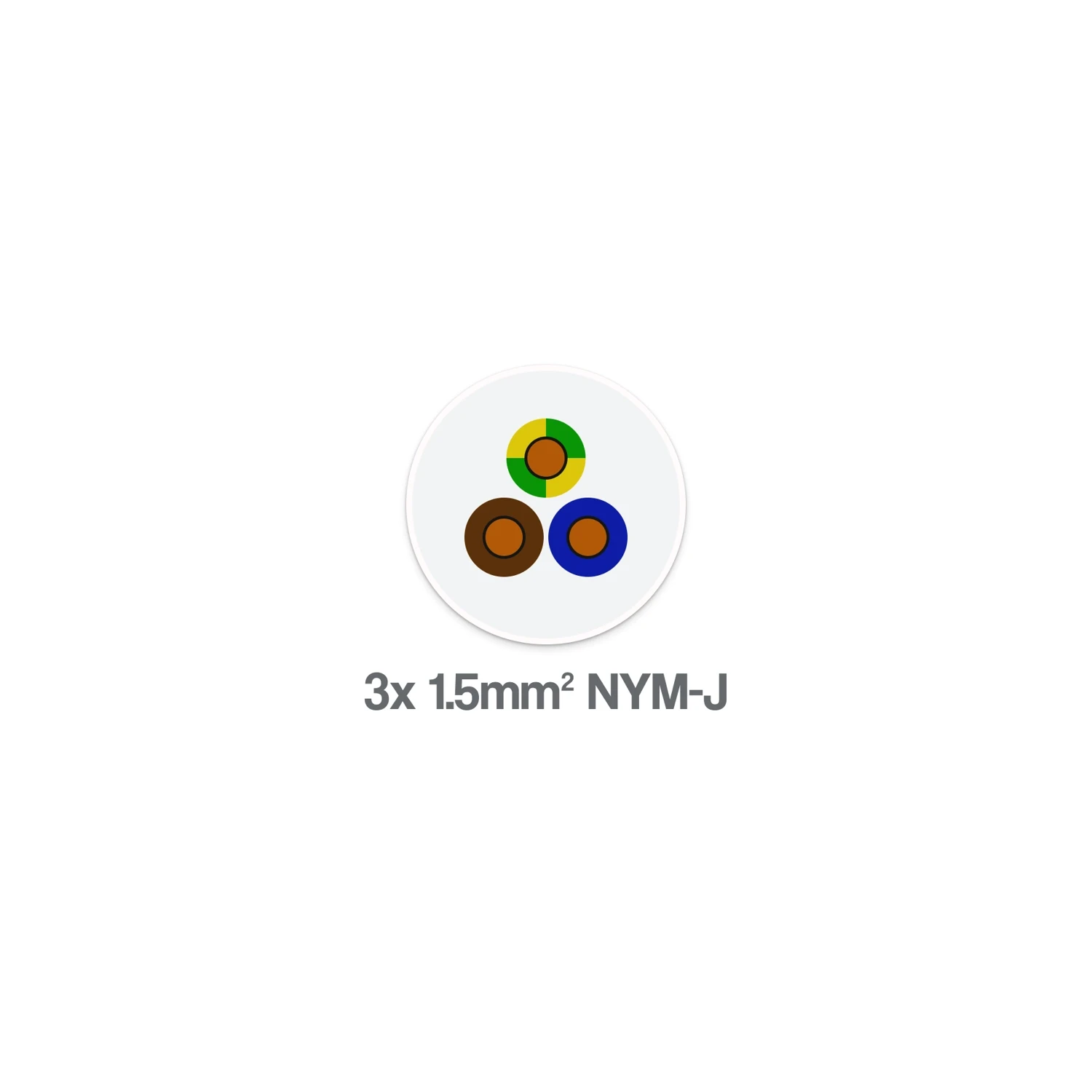

  • Conductors: Brown, Blue, Green/Yellow
  • DC resistance at 20°C: 12.1 Ω/km
  • Voltage drop (3-phase AC): 27 mV/A/m
  • Operating temp: -30°C to +70°C
  • Standards: IEC 60502, VDE 0250, BS EN 50265-2-1
Specifications

Cable Type

NYM-J

Voltage Rating

300/500V

Number of Cores

3

Conductor Size

1.5mm²

Conductor Material

Solid copper (Class 1)

Stranding

1/1.38mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Current Carrying Capacity

19A

DC Resistance at 20°C

12.1 Ω/km

Voltage Drop (3-phase AC)

27 mV/A/m

Voltage Drop (Single-phase AC)

31 mV/A/m

Operating Temperature

-30°C to +70°C

Weight

120 kg/km

Core Identification

Brown, Blue, Green/Yellow

Standards

IEC 60502, VDE 0250, BS EN 50265-2-1
