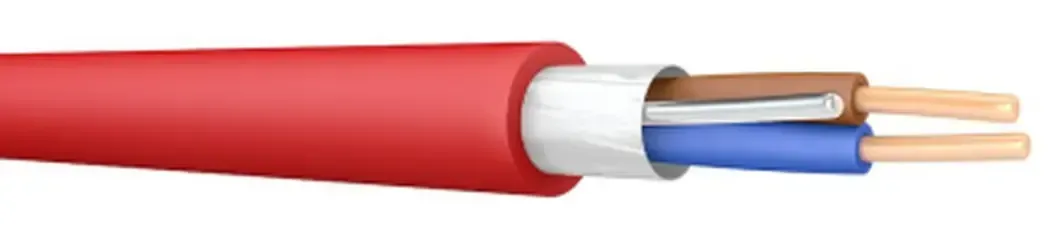

Enhanced Fire Resistant 3 Core 1.5mm2 LSZH Cable 300 500V Red 500m Drum

Photo is representative

Enhanced Fire Resistant 3 Core 1.5mm2 LSZH Cable 300 500V Red

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code FT315ENHANCED
GTIN —
Stock status: In stock

per meter

More arriving soon

Net price: £2.25

Gross price

£2.70

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Enhanced fire resistant cable for fire detection, fire alarm, voice alarm, and emergency lighting circuits. Rated for 120 minutes fire survival — suited to multi-phase evacuation systems in tower blocks and multi-storey buildings.

MICA glass fibre tape fire protection, fire-resistant silicone rubber insulation, and an AL/PET screen with 0.5mm drain wire. LSZH outer sheath.

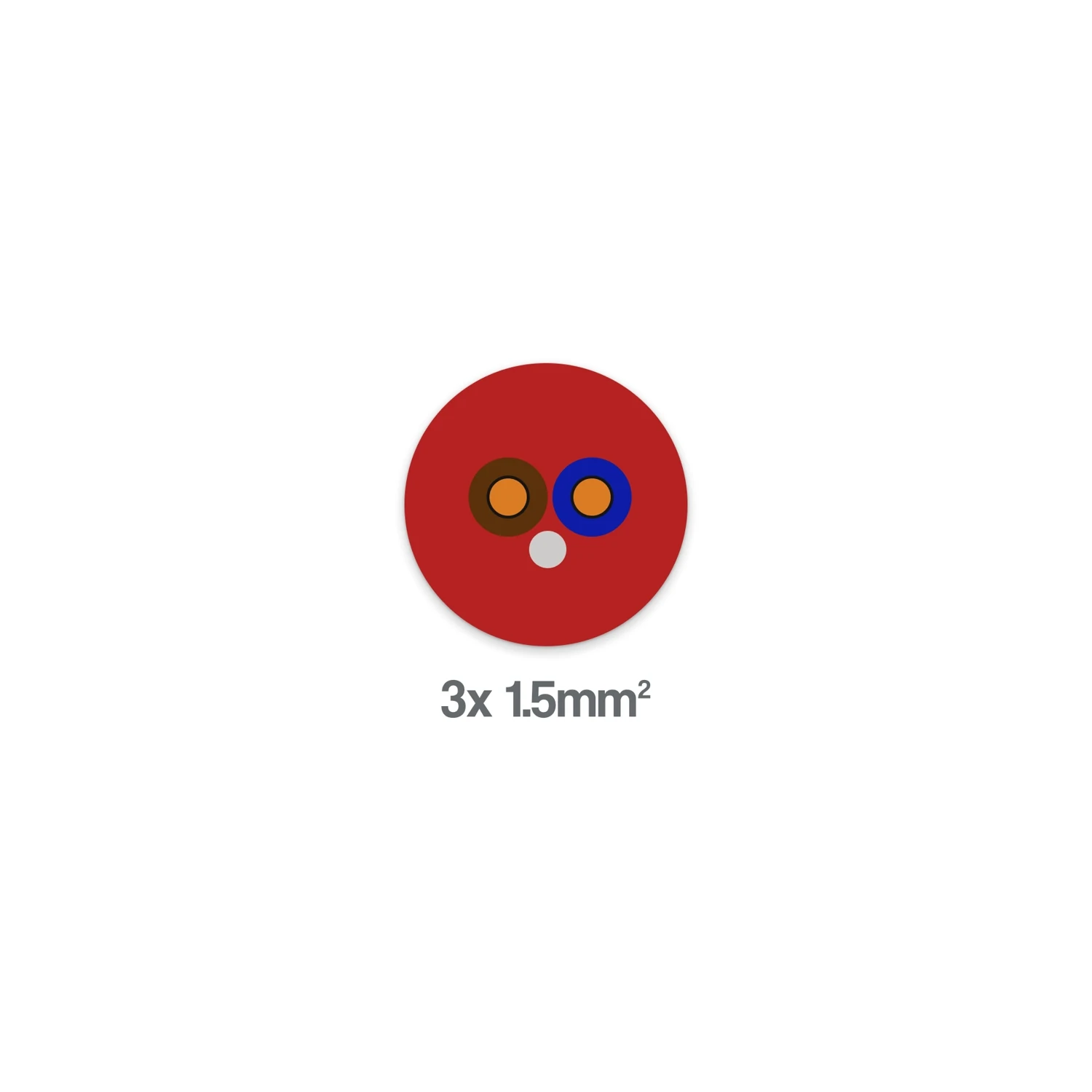

  • 3 core + earth, 1.5mm² Class 1 solid copper
  • 300/500V rated, -40°C to +90°C
  • BS 5839-1:2017 / BS 7629-1:2015 / BS 8434-2:2003 +A2:2009
  • OD 8.4mm — use 20mm gland (Ref: 251), 34 clip (1-hole)
  • Voltage drop: 27 mV/A/m (three-phase AC)
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Conductor Type

Class 1 solid copper (1/1.38 mm)

Voltage Rating

300/500 V

Overall Diameter

8.4 mm

Weight

130 kg/km

Temperature Range

-40°C to +90°C

Minimum Bending Radius

6 x overall diameter

Insulation

Fire-resistant silicone rubber

Fire Protection

MICA Glass Fibre Tape

Screen

Aluminium/Polyester Tape (AL/PET) with 0.5mm drain wire

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Fire Resistance

Enhanced 120 minutes — BS 5839-1:2017, BS 7629-1:2015, BS 8434-2:2003 +A2:2009

Voltage Drop (Three-phase AC)

27 mV/A/m
