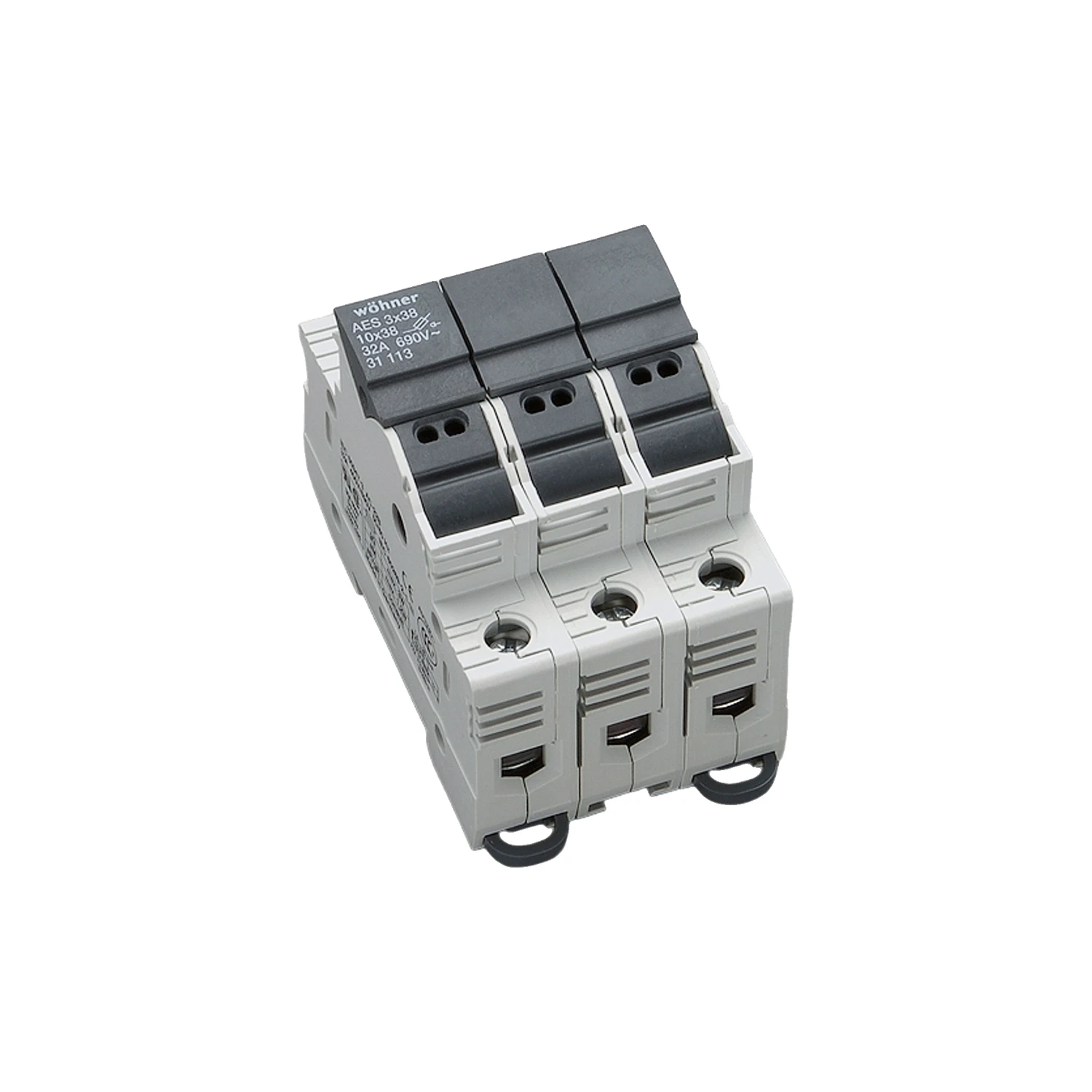

AMBUS Panel Fuse Holder 3P 10x38 32A 690V AC IP20 Rail Mount

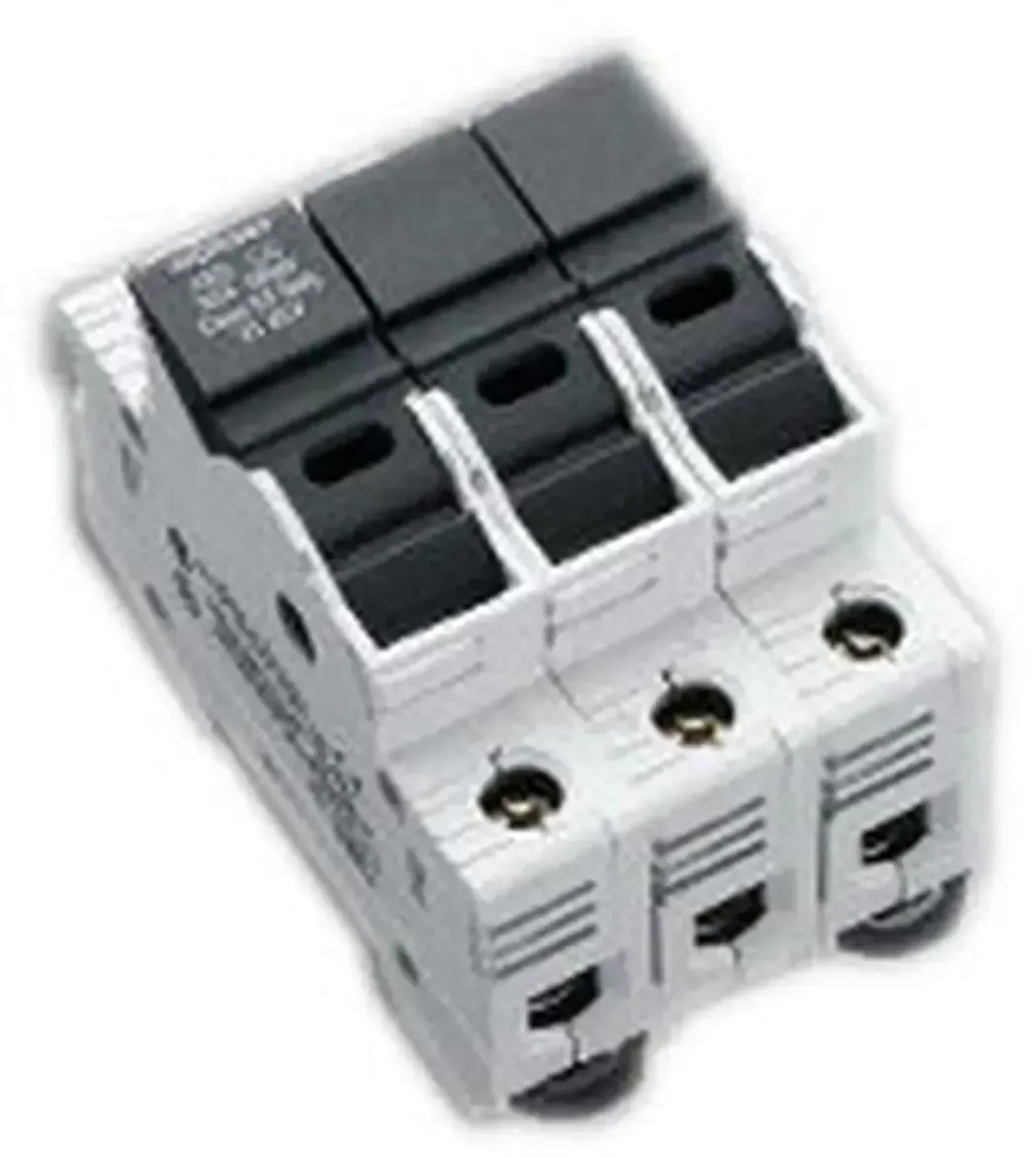

Photo is representative

AMBUS Panel Fuse Holder 3P 10x38 32A 690V AC IP20 Rail Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 31113
GTIN —
Stock status: 9 in stock

priced individually

More arriving soon

Net price: £23.64

Gross price

£28.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Rail-mounted panel holder for 10x38 cylindrical fuses in 3-pole configuration. Suits gG fuse links to IEC/HD 60269-2. Cage clamp terminals take 0.75–25mm² (IEC) or AWG 18–4 (UL/CSA).

Rated 32A at 690V AC (IEC) and 30A at 600V AC/DC (UL). Conditional short-circuit current 100kA at 400V with 32A fuses. Not suitable for aluminium cables.

  • Poles: 3
  • Fuse size: 10x38
  • Rated current: 32A (IEC) / 30A (UL)
  • Rated voltage: 690V AC (IEC) / 600V AC-DC (UL)
  • Approvals: IEC (CB), UL, CSA, CCC
Specifications

Poles

3

Fuse Size

10x38

Rated Current (IEC)

32 A

Rated Voltage AC (IEC)

690 V

Rated Isolation Voltage UI AC

800 V

Rated Surge Voltage Uimp

6 kV

Rated Current (UL)

30 A

Rated Voltage AC/DC (UL)

600 V

SCCR

100 kA

Conditional Short-Circuit Current

100 kA / 400 V (32A); 100 kA / 500 V (25A)

Utilisation Category

AC-22B (400 V) per IEC 60947-3

Approved Fuse Class

gG

IP Rating

IP20

Mounting

Rail

Connection Type

Cage clamp

Min Cable CSA (IEC)

0.75 mm²

Max Cable CSA (IEC)

25 mm²

Min Cable CSA (UL)

AWG 18

Max Cable CSA (UL)

AWG 4

Wire Stripping Length

11 mm

Torque Min

2.0 Nm

Torque Max

2.5 Nm

Screw Drive

PZ2

Aluminium Cable

Not suitable

Min Operating Temperature

-40°C

Dimensions (W x H x D)

54 x 81 x 58 mm

Weight

15.5 kg/100

Approvals

IEC (CB), UL, CSA, CCC

Standards

IEC 60947-1:2020, IEC 60947-3:2020, UL 4248-1

Rated Frequency (UL)

50 / 60 Hz

Documents

datasheet 31113 Datasheet
