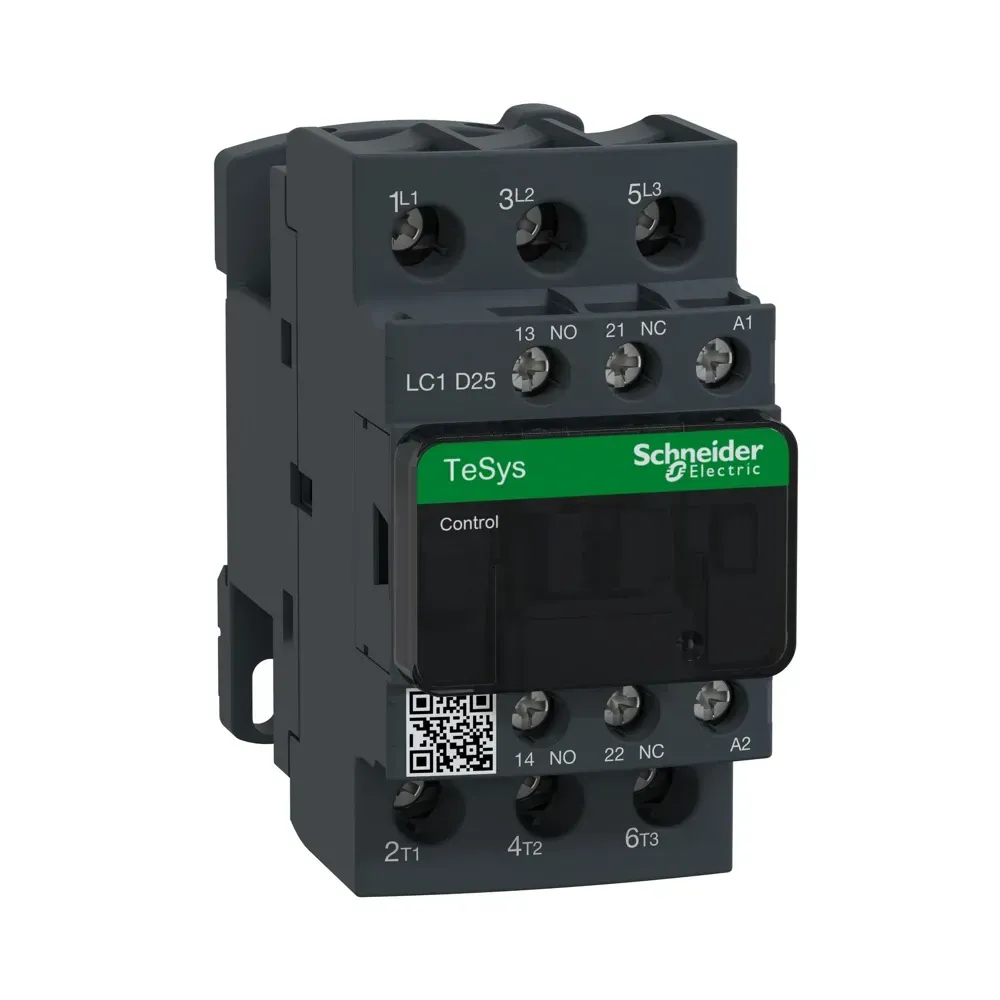

Schneider TeSys D 25A 24V DC 3P contactor LC1D25BD product image

Photo is representative

Schneider TeSys D 25A 24V DC 3P Contactor - LC1D25BD

Schneider TeSys D 25A 24V Coil DC 3P contactor (LC1D25BD) is ideal for industrial motor control and resistive load switching applications. Rated for 25A AC-3 at up to 440V AC, with a 24V DC coil and robust screw clamp terminals. Provides reliable DOL motor starting and reversing duties up to 11kW at 400V, with 3NO main power contacts and integrated 1NO+1NC auxiliary contacts. Features bidirectional diode coil suppression, IEC 60947-4-1 compliance, and compatibility with TeSys D series accessories. Suitable for panel mounting or DIN rail installation with compact 85x45x101mm dimensions.

Product Information

Stock Code LC1D25BD
MPN LC1D25BD
GTIN 3389110355994
Stock status: In stock
Price: £128.37
incl. VAT, 20% priced individually

Original price: £142.63

10% off - Save £14.26

Product Features
Current Rating 25A AC-3, 40A AC-1, 25A AC-3e
Control Coil 24V DC
Contact Configuration 3P (3NO main) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals (1–10 mm²)
Mounting Method 35mm DIN rail or panel mount
Auxiliary Capability Accepts up to 4 auxiliary contact blocks
Mechanical Life 30 million operations
Motor Rating 11kW AC-3 at 400V
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, UL, CSA, UKCA, CCC

Brand

Schneider Electric
