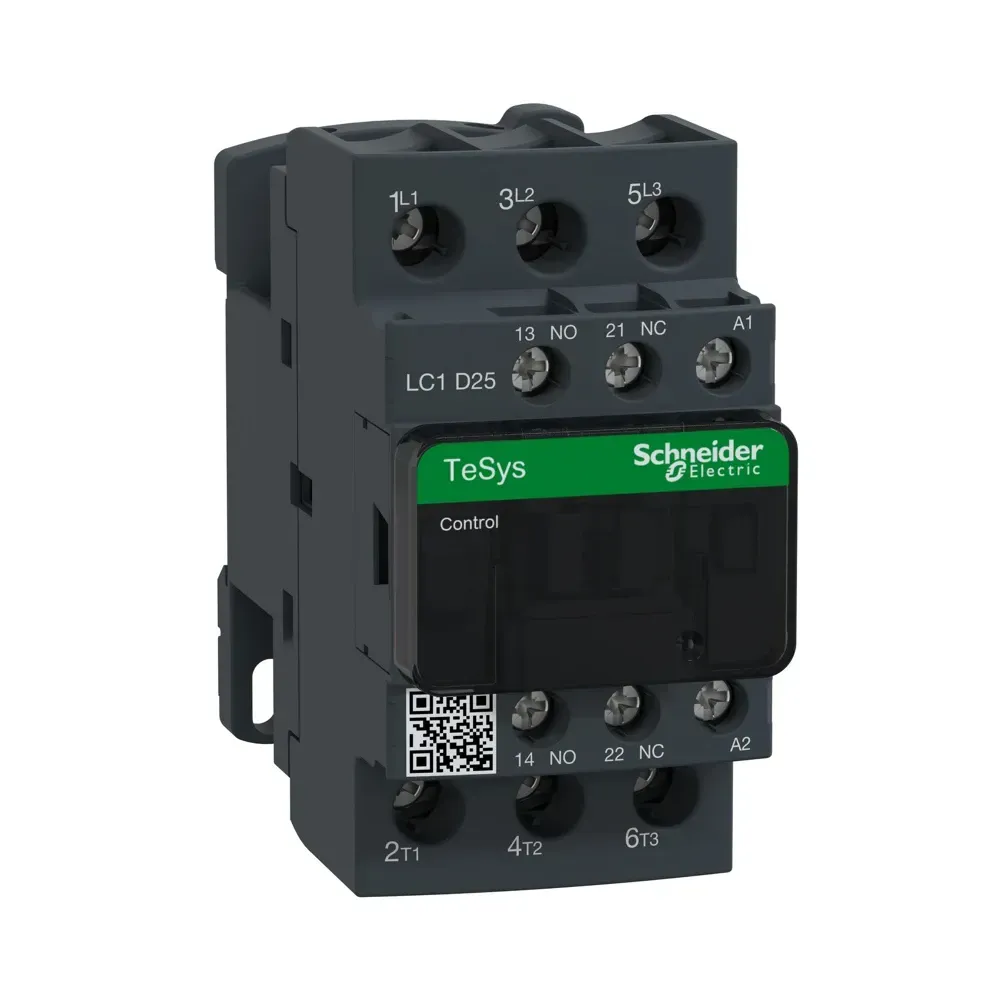

Schneider TeSys D 25A 24V AC 3P Contactor LC1D25B7 front view

Photo is representative

Schneider TeSys D 25A 24V AC 3P Contactor - LC1D25B7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D25B7
GTIN 3389110349658
Stock status: In stock

priced individually

More arriving soon

Net price: £76.74

Gross price

£92.09

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 25A 24V Coil AC 3P contactor (LC1D25B7) designed for reliable motor control and resistive load switching. AC-3 rated 25A at up to 440V for motors up to 11kW at 400-440V. Features a 24V AC 50/60Hz control coil, 3 normally open main contacts, and integrated auxiliary (1NO+1NC) signaling. Suitable for DOL starters, reversing, star-delta applications, and general control panels. Screw clamp terminals for secure wiring, DIN rail or panel mounting. Fully compliant with IEC 60947-4-1 and IEC 60947-5-1. Ideal for industrial motor and automation systems.

Specifications

Current Rating

25A AC-3, 40A AC-1

Control Coil

24V AC 50/60Hz

Contact Configuration

3P main (3NO) + 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals (1...10mm²) for power, (1...4mm²) for control

Mounting Method

35mm DIN rail or panel mounting

Auxiliary Capability

Accepts up to 4 auxiliary contact blocks

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, UL, CSA
