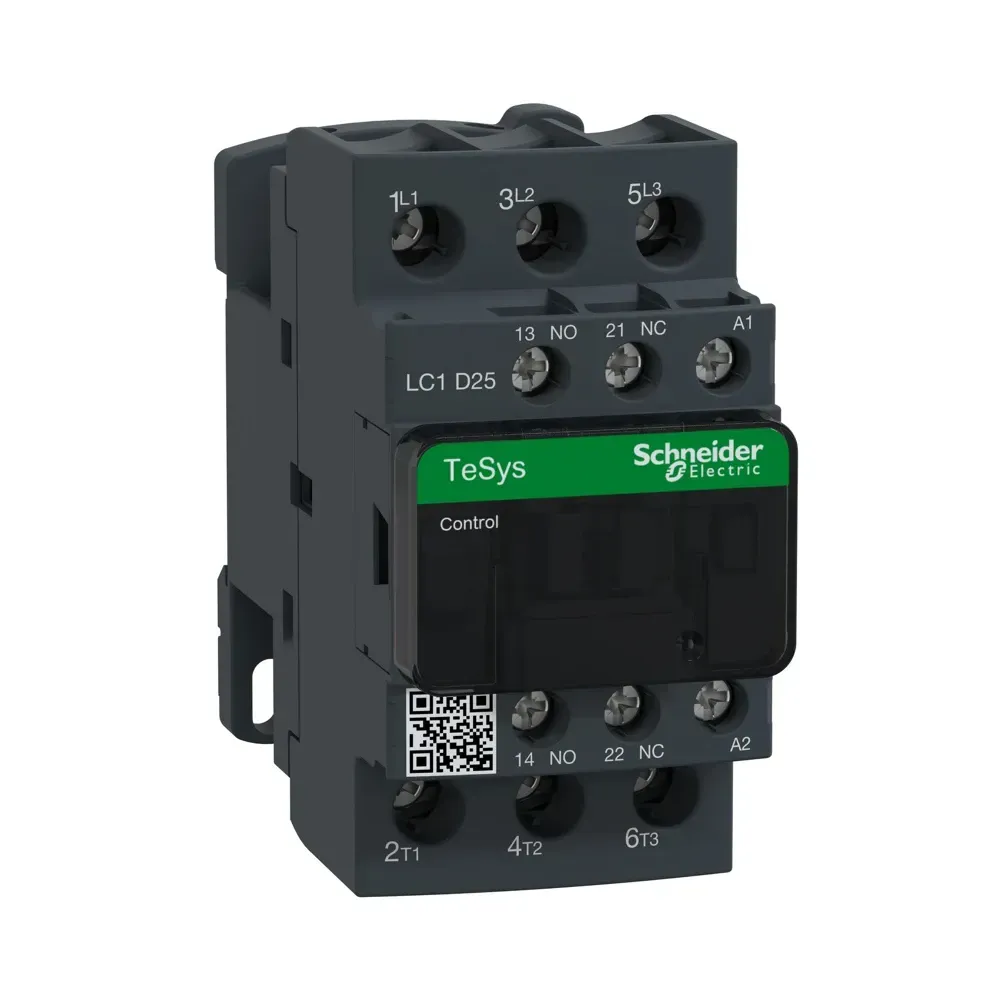

Schneider TeSys D 25A 230V AC 3P Contactor LC1D25P7 front view

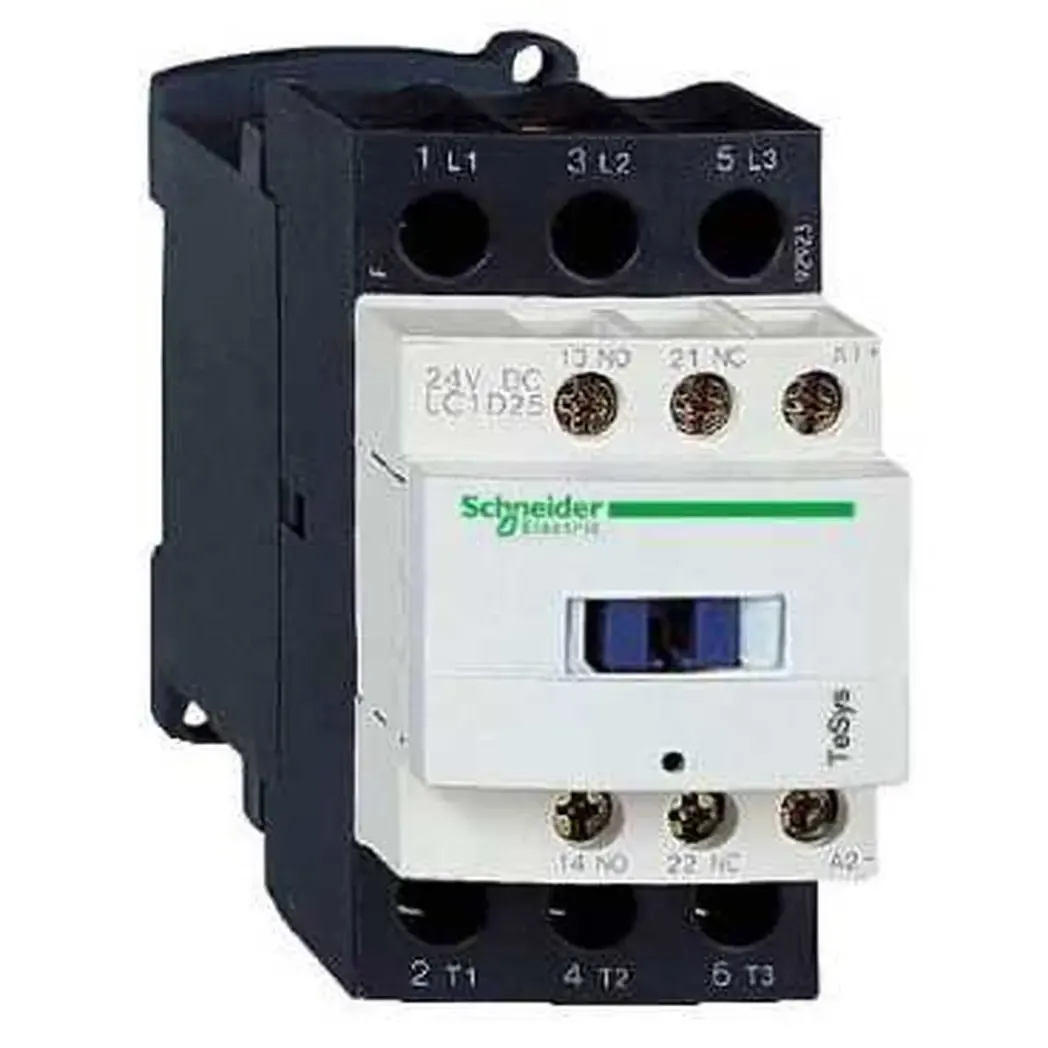

Photo is representative

Schneider TeSys D 25A 230V AC 3P Contactor - LC1D25P7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D25P7
GTIN 3389110349955
Stock status: In stock

priced individually

More arriving soon

Net price: £76.74

Gross price

£92.09

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 25A 230V Coil AC 3P contactor (LC1D25P7), suitable for DOL motor starting, star-delta, and reversing motor control up to 11kW at 400–440V AC (AC-3). Rated for 25A AC-3/3e and 40A AC-1 up to 440V, with 3NO power contacts plus 1NO+1NC integrated auxiliary contacts. Features a 230V AC 50/60Hz coil, screw clamp terminals, and DIN rail or plate mounting, with compact 45mm width and IEC 60947-4-1 compliance. Ideal for industrial panels, automation, and control systems integration.

Specifications

Current Rating

25A AC-3/3e, 40A AC-1

Control Coil

230V AC 50/60Hz

Contact Configuration

3P (3NO) + 1NO+1NC auxiliary

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or plate

Motor Rating

Up to 11kW at 400/415/440V AC (AC-3)

Auxiliary Capability

Accepts up to 4 auxiliary contact blocks

Mechanical Life

15 million operations

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, UL, CSA, Marine, UKCA

Schneider Electric
