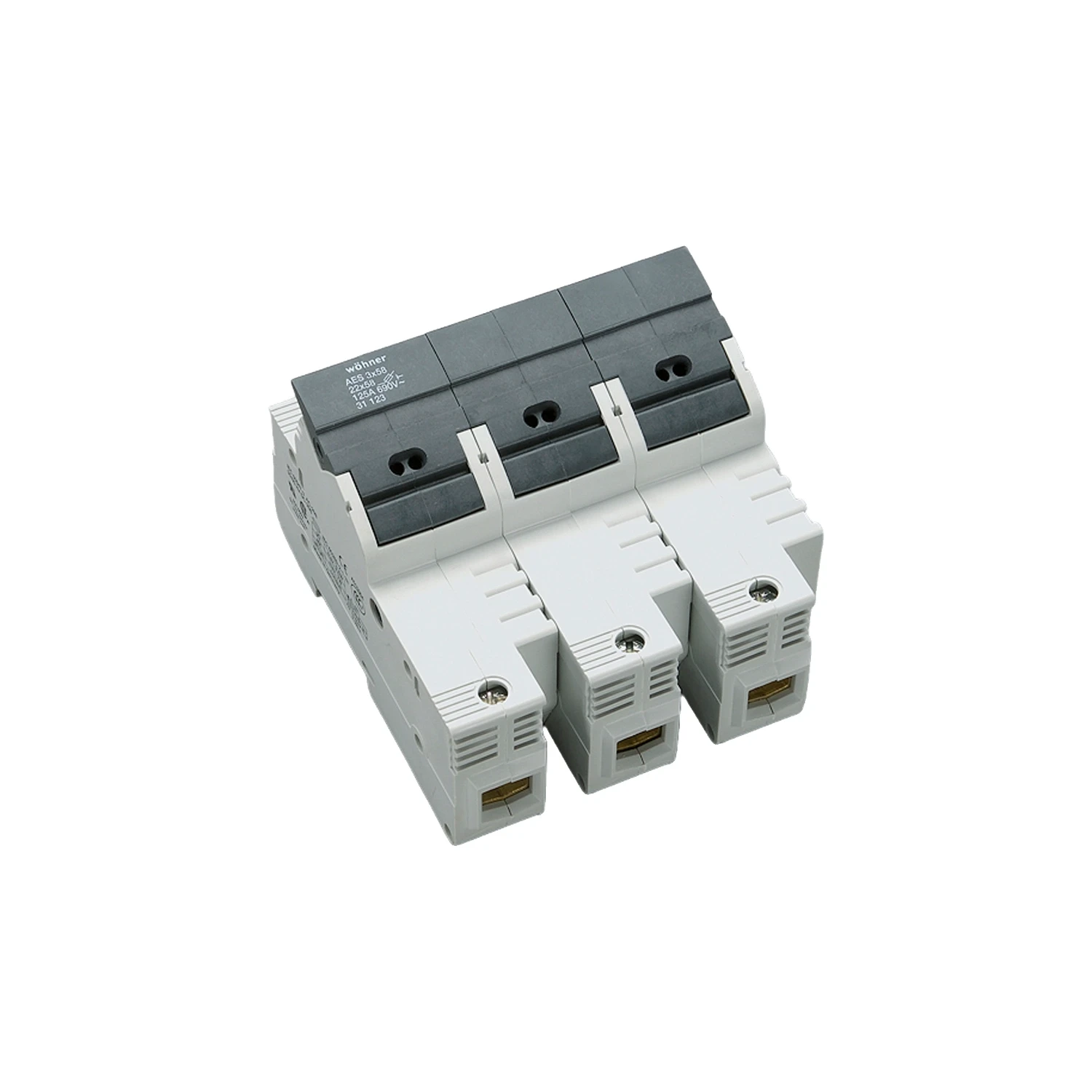

Panel Holder Cylindrical Fuses 22x58mm 3 Pole 100A 690V AC IP20 L703

Photo is representative

Panel Holder Cylindrical Fuses 22x58mm 3 Pole 100A 690V AC IP20 L703

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code L703
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £34.07

Gross price

£40.89

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

DIN rail mounted 3-pole fuse holder for 22×58mm cylindrical fuses. Suits industrial control panel distribution. Accepts gG fuse links to IEC/HD 60269-2.

Cage clamp terminals with 4–50mm² cable range. Not suitable for aluminium cables.

  • Rated current (IEC): 100A
  • Rated voltage AC (IEC): 690V
  • Rated insulation voltage Ui: 800V AC
  • Conditional short-circuit current: 100kA at 500V
  • Operating temperature: from -40°C
  • Approvals: IEC (CB), UL, CSA, CCC
Specifications

Poles

3-pole

Rated Current (IEC)

100 A

Rated Voltage AC (IEC)

690 V

Rated Insulation Voltage Ui AC

800 V

Rated Surge Voltage Uimp

6 kV

Conditional Short-Circuit Current

100 kA / 500 V (125 A fuse), 80 kA / 690 V (80 A fuse)

Fuse Link Size

22 × 58 mm

Fuse Link Class

gG

Fuse Link Standard

IEC / HD 60269-2

Degree of Protection

IP20

Mounting

DIN rail

Connection Type

Cage clamp

Cable Range

4 – 50 mm²

Min Operating Temperature

-40°C

Dimensions W × H × D

108 × 115 × 69 mm

Rated Current (UL)

80 A

Rated Voltage AC/DC (UL)

600 V

SCCR (UL)

100 kA

Approvals

IEC (CB), UL, CSA, CCC

Standards

IEC 60947-1:2020, IEC 60947-3:2020, UL 4248-1

Documents

datasheet L703 Datasheet
