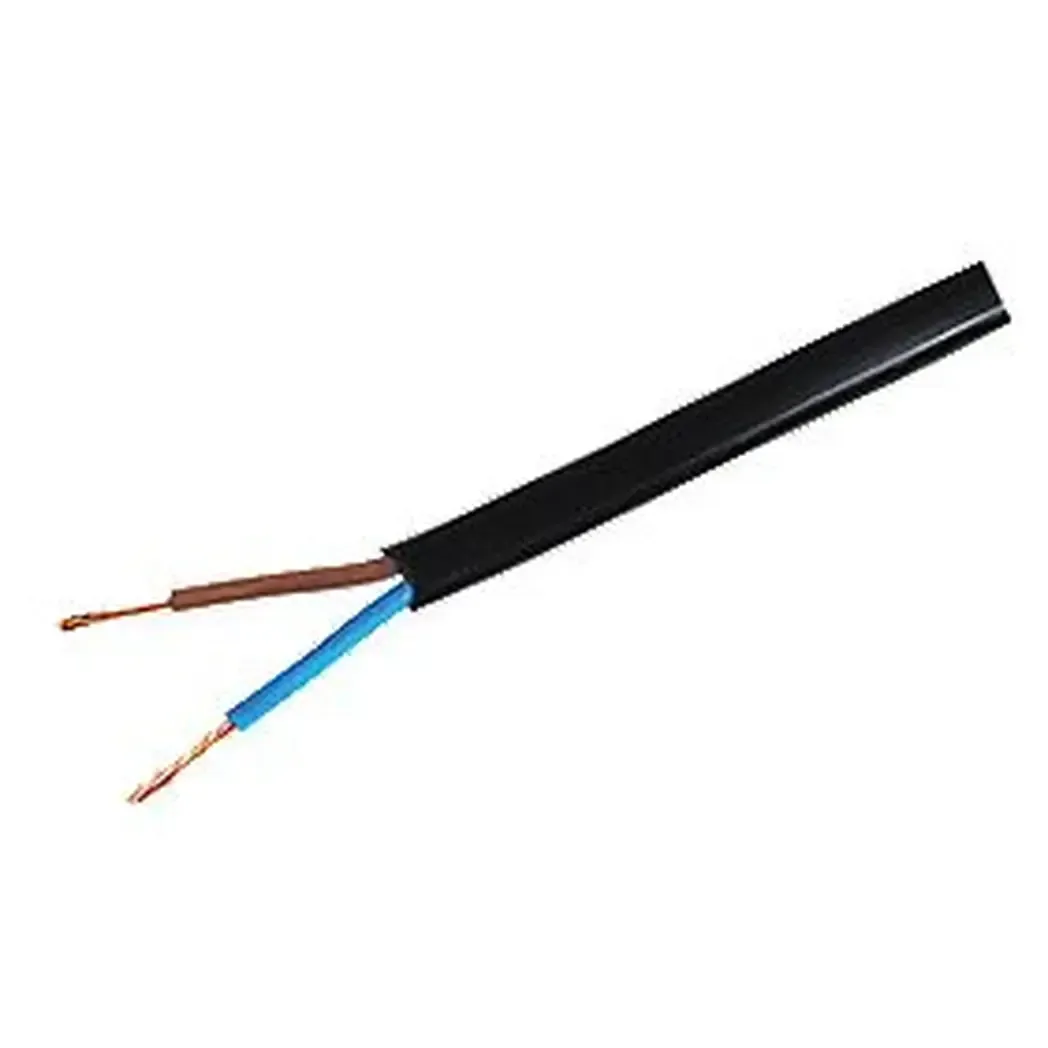

H05RN-F 2 Core 0.75mm Flexible Rubber Cable 300 500V Black

Photo is representative

H05RN-F 2 Core 0.75mm Flexible Rubber Cable 300 500V Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 275TRS
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £0.90

Gross price

£1.08

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

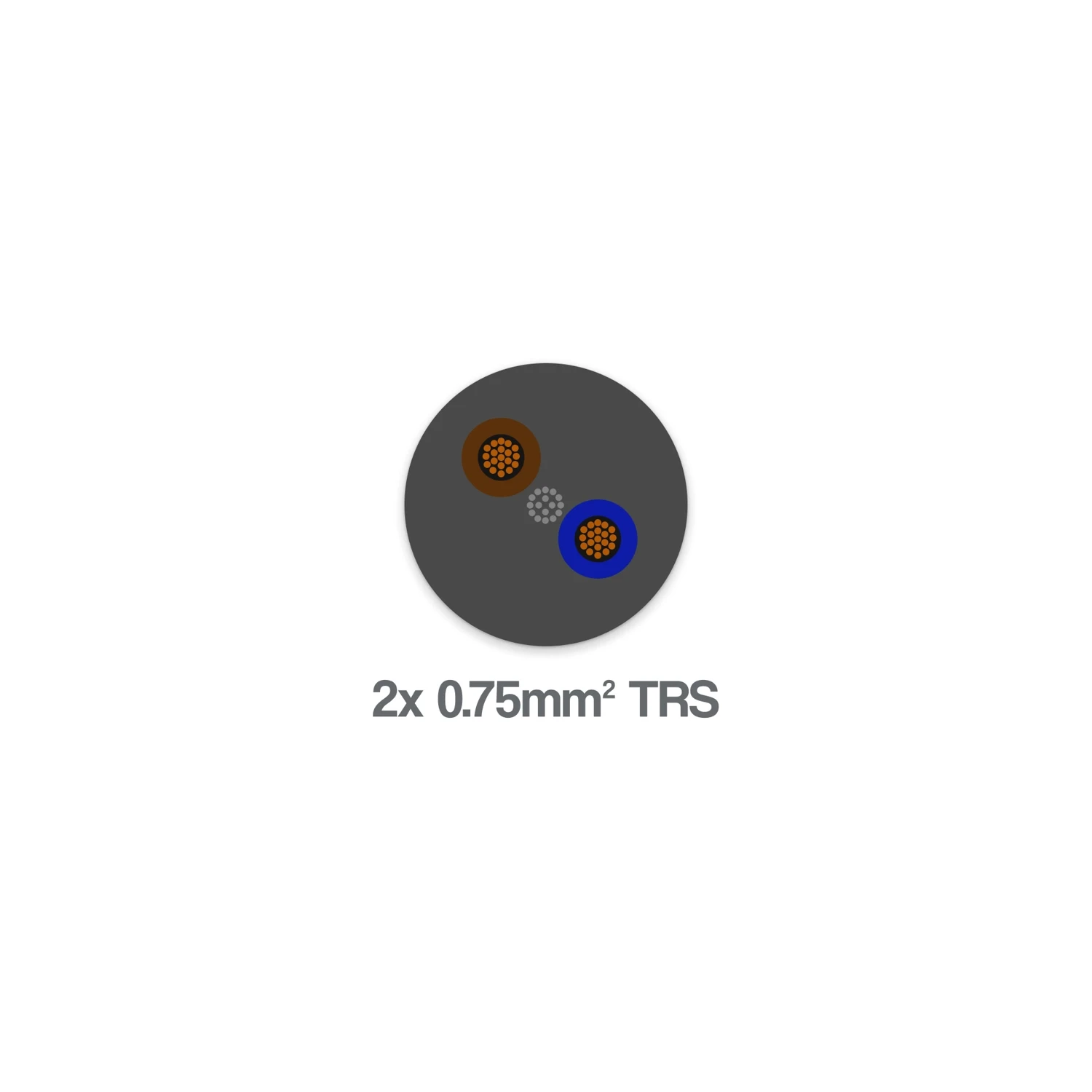

H05RN-F 2-core 0.75mm² flexible rubber cable. Rated 300/500V, Class 5 finely stranded bare copper conductors with rubber insulation (EI4) and black rubber outer sheath (EM2). No CPC — 2-core only.

Suited to light mechanical stress applications: household appliances, portable tools, kitchen and garden equipment. Rated for dry, damp, wet and outdoor use.

  • Voltage: 300/500V AC (U₀/U)
  • Conductor temp: +60°C max
  • Temp range: –25°C to +60°C (flexible)
  • Min. bend radius: 7.5 × OD
  • OD: 5.7–7.4 mm
  • Flame-retardant: IEC 60332-1-2
  • HAR and EAC certified
Specifications

Cable Type

H05RN-F

Cores

2

Conductor CSA

0.75 mm²

Nominal Voltage

300/500 V AC (U₀/U)

Max Conductor Temp

+60°C

Temp Range (Flexible)

–25°C to +60°C

Temp Range (Fixed)

–30°C to +60°C

Conductor

Bare copper, finely stranded, Class 5 (IEC 60228)

Core Insulation

Rubber compound EI4 (DIN EN 50363-1)

Outer Sheath

Rubber compound EM2 (DIN EN 50363-2-1), black

Outer Diameter

5.7–7.4 mm

Min. Bending Radius

7.5 × outer diameter

Flame Retardant

IEC 60332-1-2

Certifications

HAR, EAC
