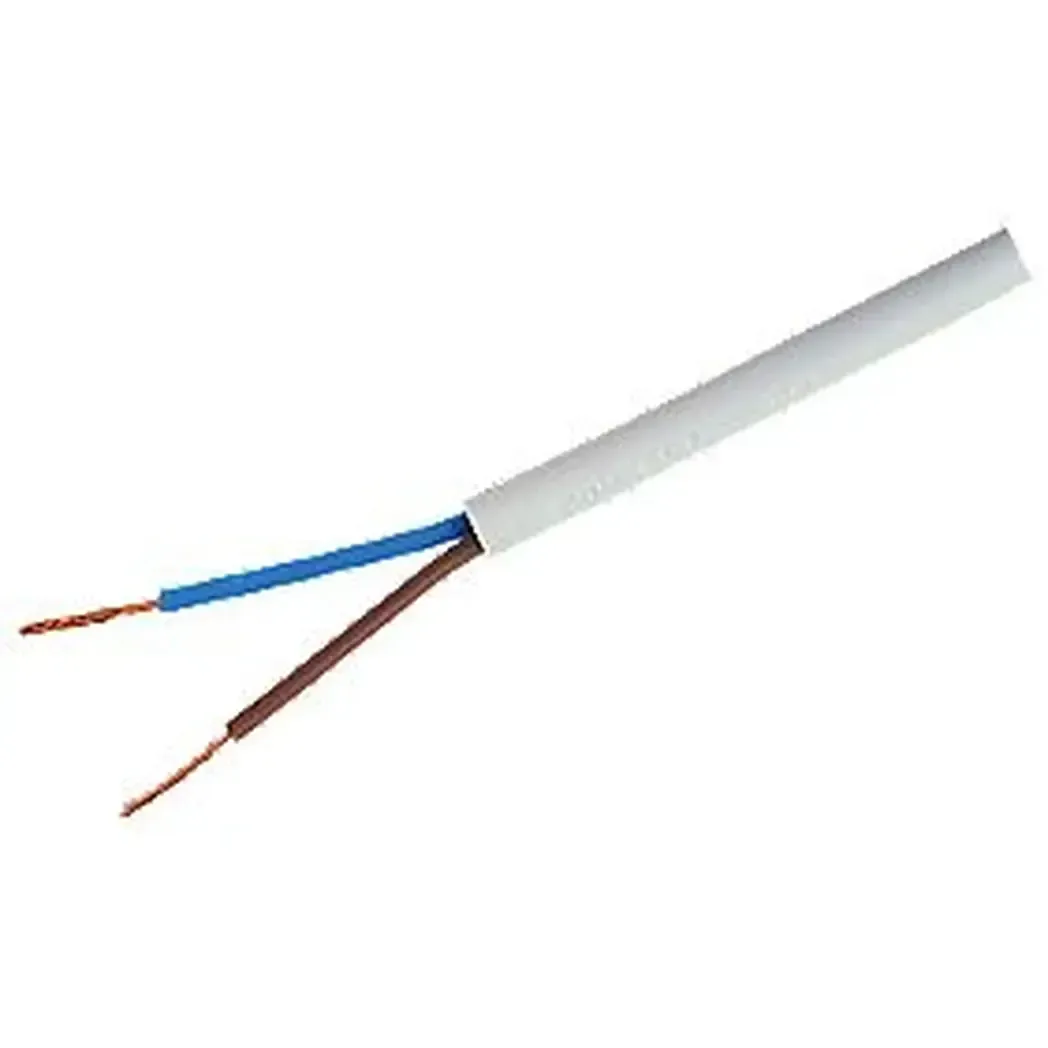

2 Core 0.75mm2 LSZH Flexible Cord H05Z1Z1-F 300 500V White Sheath

Photo is representative

2 Core 0.75mm2 LSZH Flexible Cord H05Z1Z1-F 300 500V White Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 275PVC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.49

Gross price

£0.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

2 core 0.75mm² LSZH flexible cord to H05Z1Z1-F. Suited to pendant lighting and general supply leads in public areas — hospitals, shopping centres, airports.

LSZH insulation and sheath throughout. Class 5 stranded copper conductors.

  • 300/500V rated
  • 24⁄0.20mm stranding
  • OD: 6.8mm, min bend radius 5 x OD
  • Temp range: -5°C to +70°C
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

0.75 mm²

Number of Cores

2

Voltage Rating

300/500V

Conductor Type

Class 5 flexible stranded copper

Stranding

24/0.20 mm

Insulation Material

LSZH

Sheath Material

LSZH

Sheath Colour

White

Core Colours

Brown, Blue

Overall Diameter

6.8 mm

Min Bending Radius

5 x overall diameter

Temperature Range

-5°C to +70°C

Weight

59 kg/km

Standards

H05Z1Z1-F, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50525-3-11
