6491B H07Z-R LSZH Single Core 2.5mm² 450 750V Grey Cable

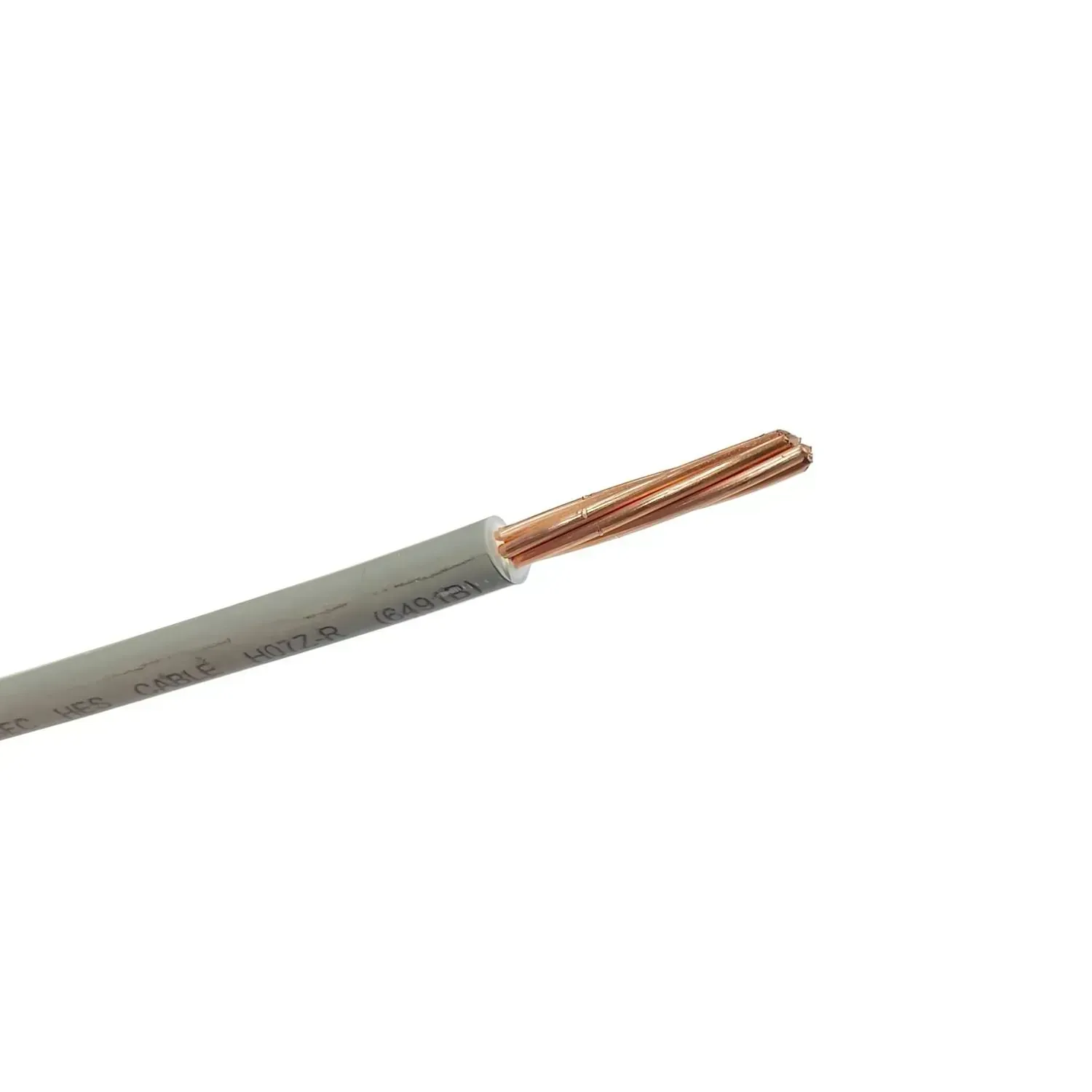

Photo is representative

6491B H07Z-R LSZH Single Core 2.5mm² 450 750V Grey Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2.5PVCGREY5
GTIN —
Stock status: In stock

priced per metre

Net price: £0.62

Gross price

£0.74

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

6491B single core LSZH cable in 2.5mm² grey. H07Z-R rated at 450/750V with a Class 2 stranded copper conductor. Suited for conduit installations, fixed wiring, lighting circuits, switchgear and control gear.

LSZH sheath is the right call anywhere fire, smoke, or toxic emissions are a concern — plant rooms, public buildings, enclosed spaces.

  • 7⁄0.67mm stranding, 3.65mm OD
  • Temp range: 0°C to +90°C
  • Min bending radius (fixed): 6 x OD
  • Flame retardant to BS EN 60332-1-2
  • Nylon A2 gland: 16 | Brass A2 gland: 20⁄16
Specifications

Standard

BS EN 50525-3-41, H07Z-R

Voltage Rating

450/750V

Conductor Size

2.5mm²

Cores

1

Core Colour

Grey

Conductor Type

Class 2 stranded copper

Stranding

7/0.67mm

Overall Diameter

3.65mm

Weight

33 kg/km

Sheath Material

Low Smoke Zero Halogen (LSZH)

Temperature Range

0°C to +90°C

Min Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Nylon A2 Gland Size

16

Brass A2 Gland Size

20/16
