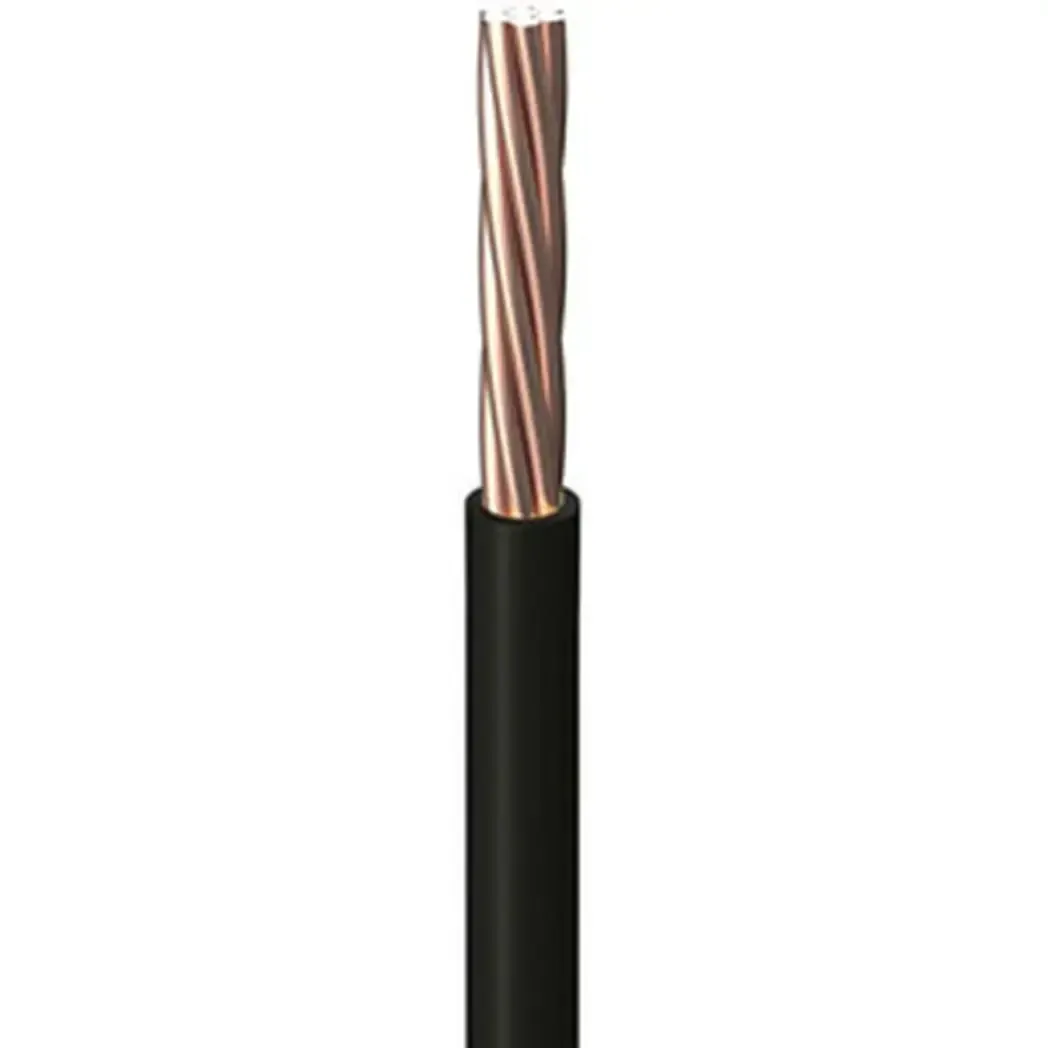

6491B Single Core LSZH 2.5mm² 450 750V Black Cable

Photo is representative

6491B Single Core LSZH 2.5mm² 450 750V Black Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2.5PVCBLACK5
GTIN —
Stock status: In stock

priced per metre

Net price: £0.62

Gross price

£0.74

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 2.5mm² black LSZH cable to BS EN 50525-3-41. Rated 450/750V with a Class 2 stranded copper conductor — 7⁄0.67mm stranding. Suitable for conduit runs and fixed protection installs including lighting, switchgear, and appliance wiring.

  • Sheath: Low Smoke Zero Halogen (LSZH)
  • Conductor: 7⁄0.67mm Class 2 stranded copper
  • OD: 3.65mm
  • Temp range: 0°C to +90°C
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

2.5 mm²

Number of Cores

1

Core Colour

Black

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

7/0.67 mm

Overall Diameter

3.65 mm

Weight

33 kg/km

Sheath Material

Low Smoke Zero Halogen (LSZH)

Temperature Range

0°C to +90°C

Minimum Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2, BS EN 50525-3-41
