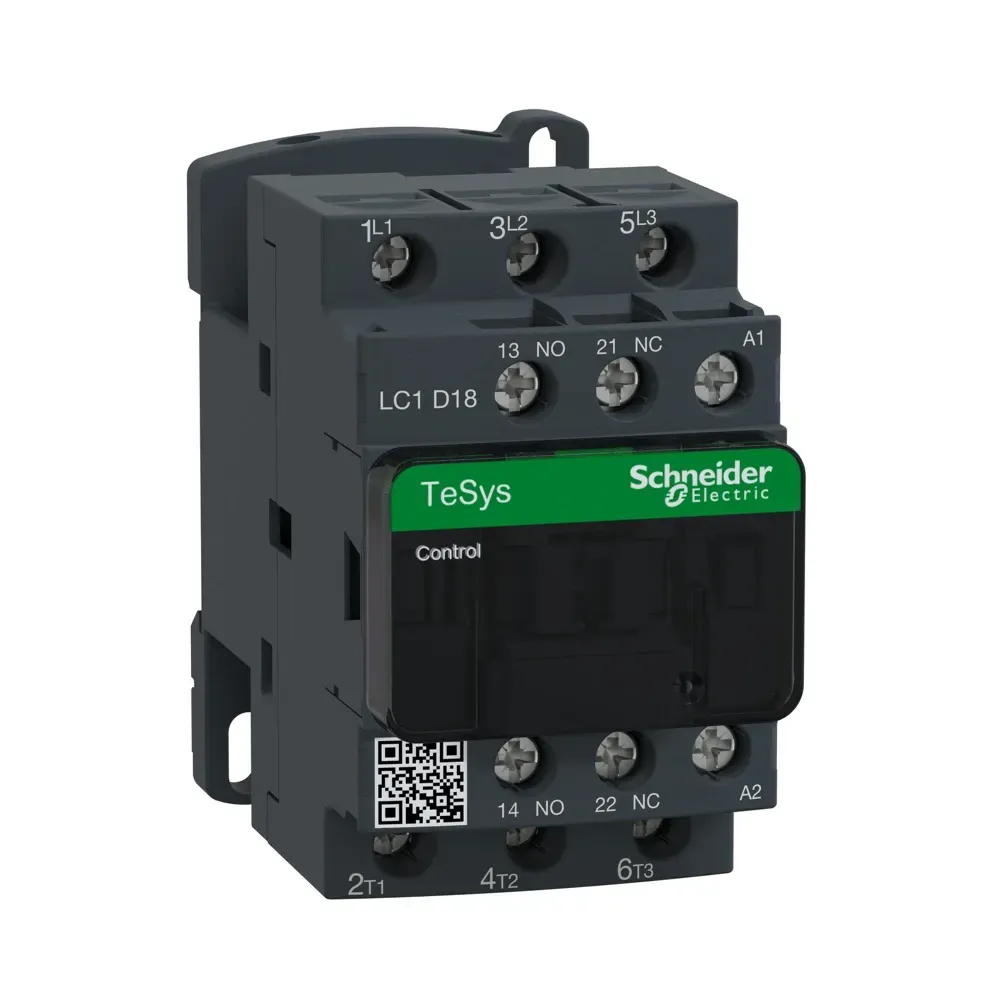

Schneider TeSys D 18A 110V AC 3P contactor LC1D18F7 front view

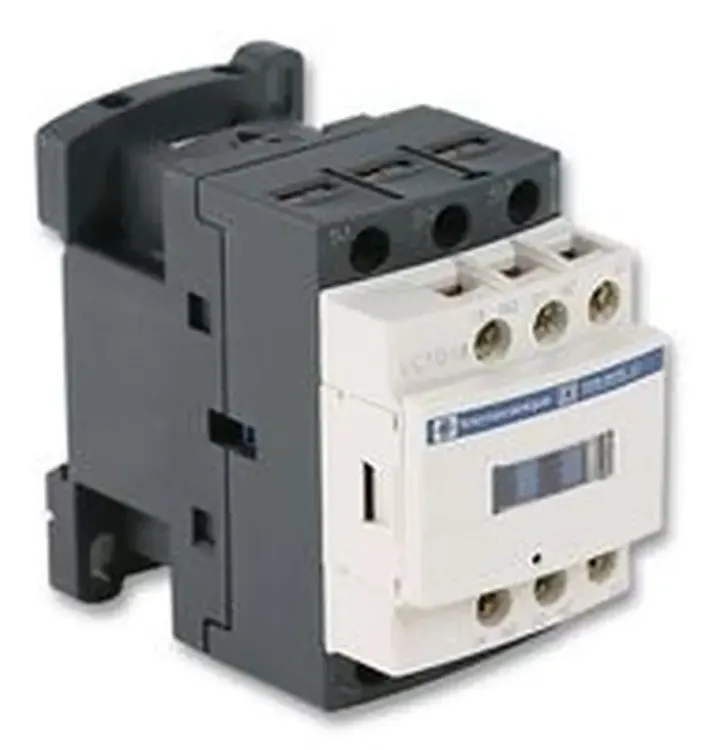

Photo is representative

Schneider TeSys D 18A 110V AC 3P Contactor - LC1D18F7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D18F7
GTIN 3389110349450
Stock status: In stock

priced individually

Net price: £59.69

Gross price

£71.62

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider TeSys D 18A 110V Coil AC 3P contactor (LC1D18F7), suitable for DOL motor starting, lighting, and resistive load switching. AC-3 rated at 18A for motors up to 7.5 kW (400V), with 110V AC 50/60Hz coil, and screw clamp terminals. Includes 1NO + 1NC auxiliary contacts. IEC 60947-4-1 and EN 60947-4-1 compliant with robust mechanical and electrical durability for industrial automation and control panel integration.

Specifications

Current Rating

18A AC-3 / 32A AC-1

Control Coil

110V AC 50/60Hz

Contact Configuration

3P (3NO) + 1NO + 1NC auxiliaries

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or panel mount

Auxiliary Capability

Accepts 2/4 auxiliary blocks

Motor Rating

Up to 7.5kW at 400V (AC-3)

Mechanical Life

15 million operations

Electrical Life

1.65 million ops (AC-3)

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, UL, CSA, EAC, UKCA

Schneider Electric
