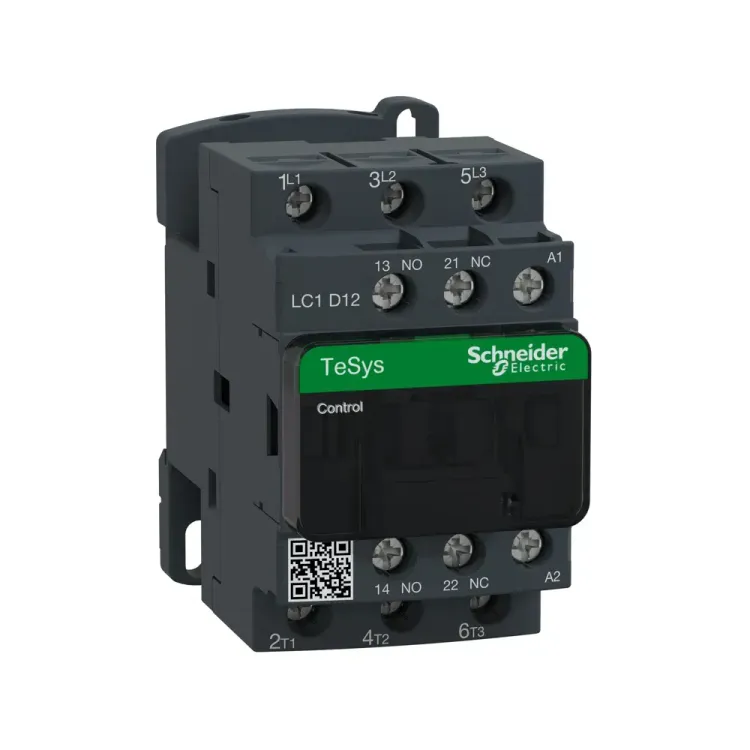

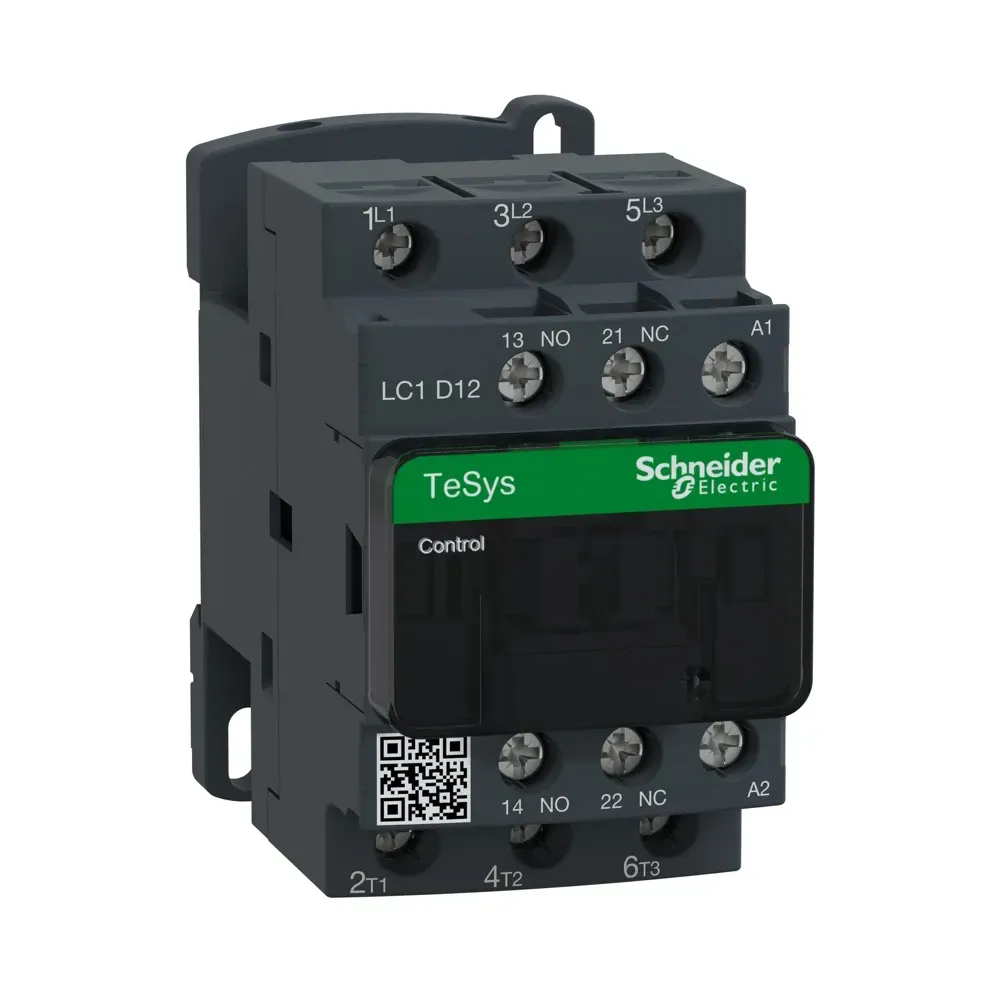

Front view of Schneider LC1D12B7 3P contactor

Photo is representative

Schneider TeSys D 12A 24V AC 3P Contactor - LC1D12B7

Schneider TeSys D 12A 24V AC Coil, 3P contactor (LC1D12B7), suitable for motor control and resistive load applications. Rated 12A AC-3 and 25A AC-1 at up to 440V AC, enabling reliable DOL starting, reversing, and other control duties for motors up to 5.5kW at 400V. Incorporates a 24V AC 50/60Hz coil, screw clamp terminals for easy wiring, and DIN rail or panel mounting. Includes 1NO+1NC auxiliary contacts. IEC 60947-4-1 compliant with TeSys D series compatibility for auxiliary blocks and accessories.

Product Information

Stock Code LC1D12B7
MPN LC1D12B7
GTIN 3389110349160
Stock status: In stock
Price: £47.2
incl. VAT, 20% priced individually

Original price: £52.44

10% off - Save £5.24

Product Features
Current Rating 12A AC-3 / 25A AC-1
Control Coil 24V AC 50/60Hz
Contact Configuration 3P (3NO) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or panel mount
Auxiliary Capability Accepts up to 4 auxiliary contact blocks
Mechanical Life 15 million operations
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA, UKCA

Brand

Schneider Electric
