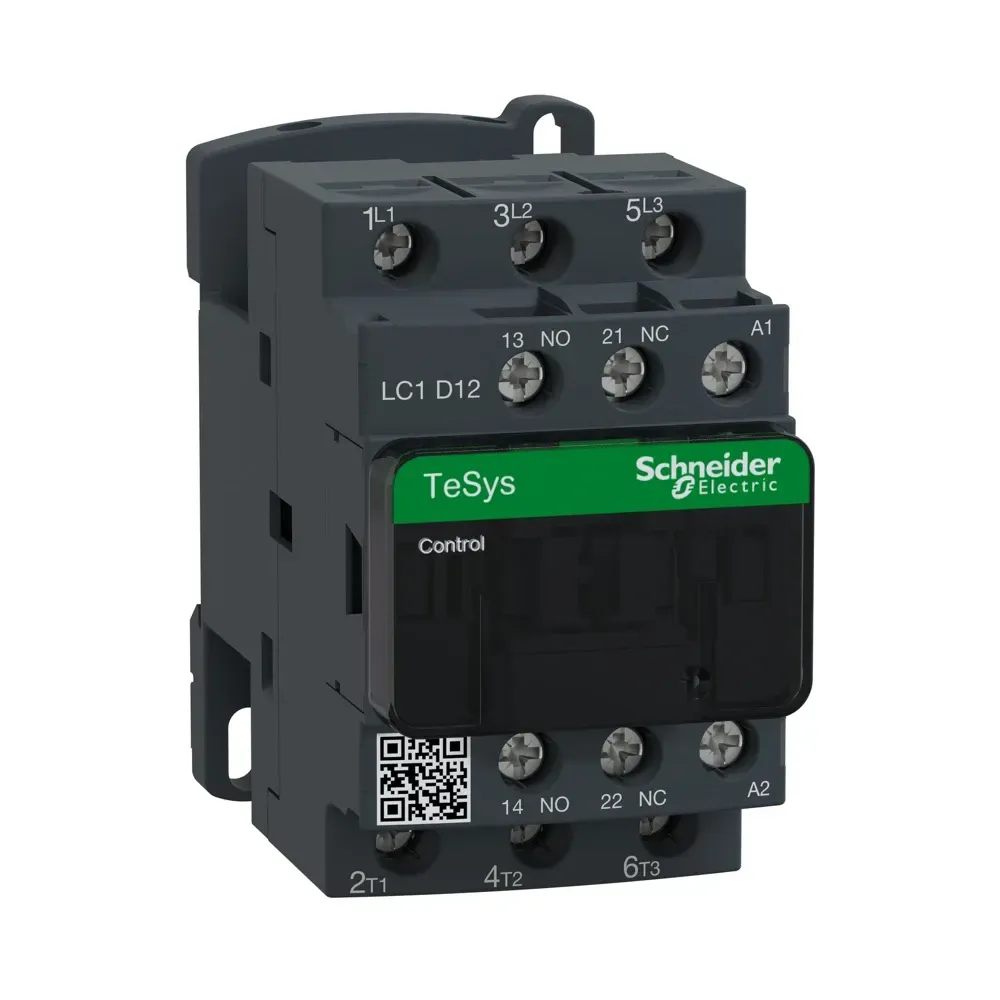

Schneider TeSys D 12A 110V AC 3P Contactor LC1D12F7 front view

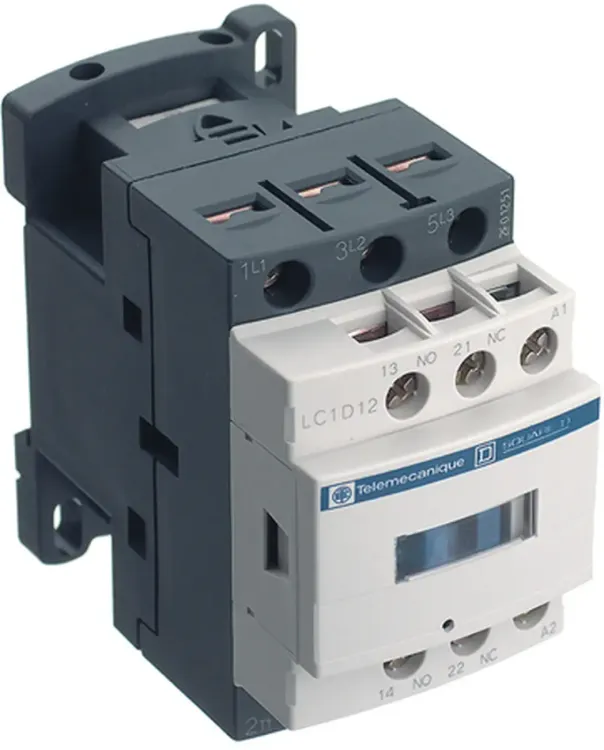

Photo is representative

Schneider TeSys D 12A 110V AC 3P Contactor - LC1D12F7

Schneider TeSys D 12A 110V Coil AC 3P contactor (LC1D12F7), designed for reliable AC-3/AC-4 motor control and resistive load applications up to 440V. Rated 12A AC-3 for motors up to 5.5kW at 400V, supporting DOL starting and reversing. Features a robust 3NO main contact configuration, 1NO+1NC integrated auxiliary contacts, and screw clamp terminals for secure DIN rail or panel mounting. IEC 60947-4-1 compliant with a mechanical life of 15 million operations, ensuring long-term durability for industrial control panels and automation systems.

Product Information

Stock Code LC1D12F7
MPN LC1D12F7
GTIN 3389110349221
Stock status: In stock
Price: £47.2
incl. VAT, 20% priced individually

Original price: £52.44

10% off - Save £5.24

Product Features
Current Rating 12A AC-3, 25A AC-1
Control Coil 110V AC 50/60Hz
Contact Configuration 3P (3NO) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail / Panel mount
Auxiliary Capability Accepts up to 4 auxiliary blocks
Mechanical Life 15 million operations
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, BS EN 60947-4-1
