NYM-J 10 Core 1.5mm2 PVC Power Cable Grey 300 500V

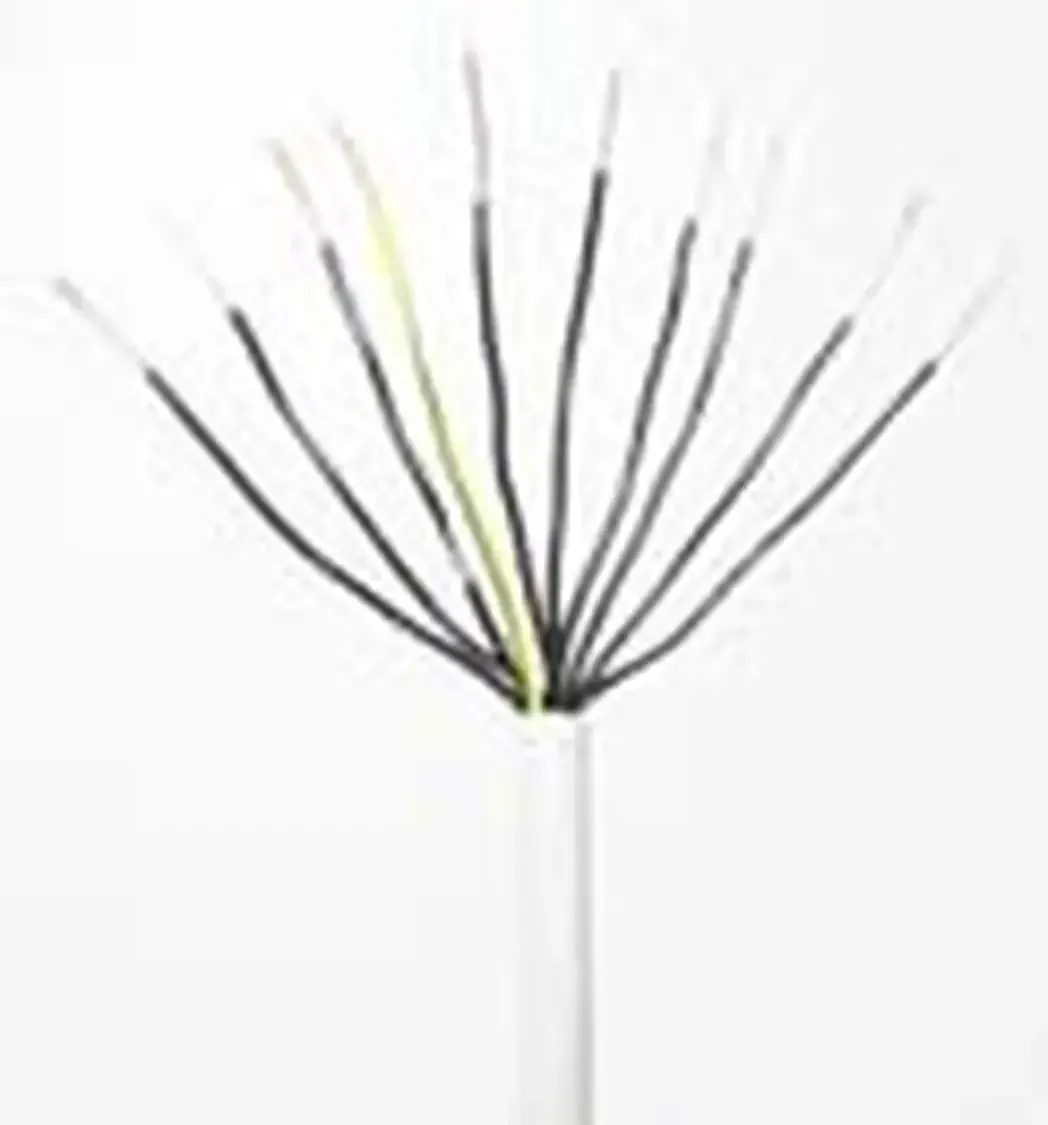

Photo is representative

NYM-J 10 Core 1.5mm2 PVC Power Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1015NYM
GTIN —
Stock status: In stock

priced per metre

Net price: £3.25

Gross price

£3.89

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

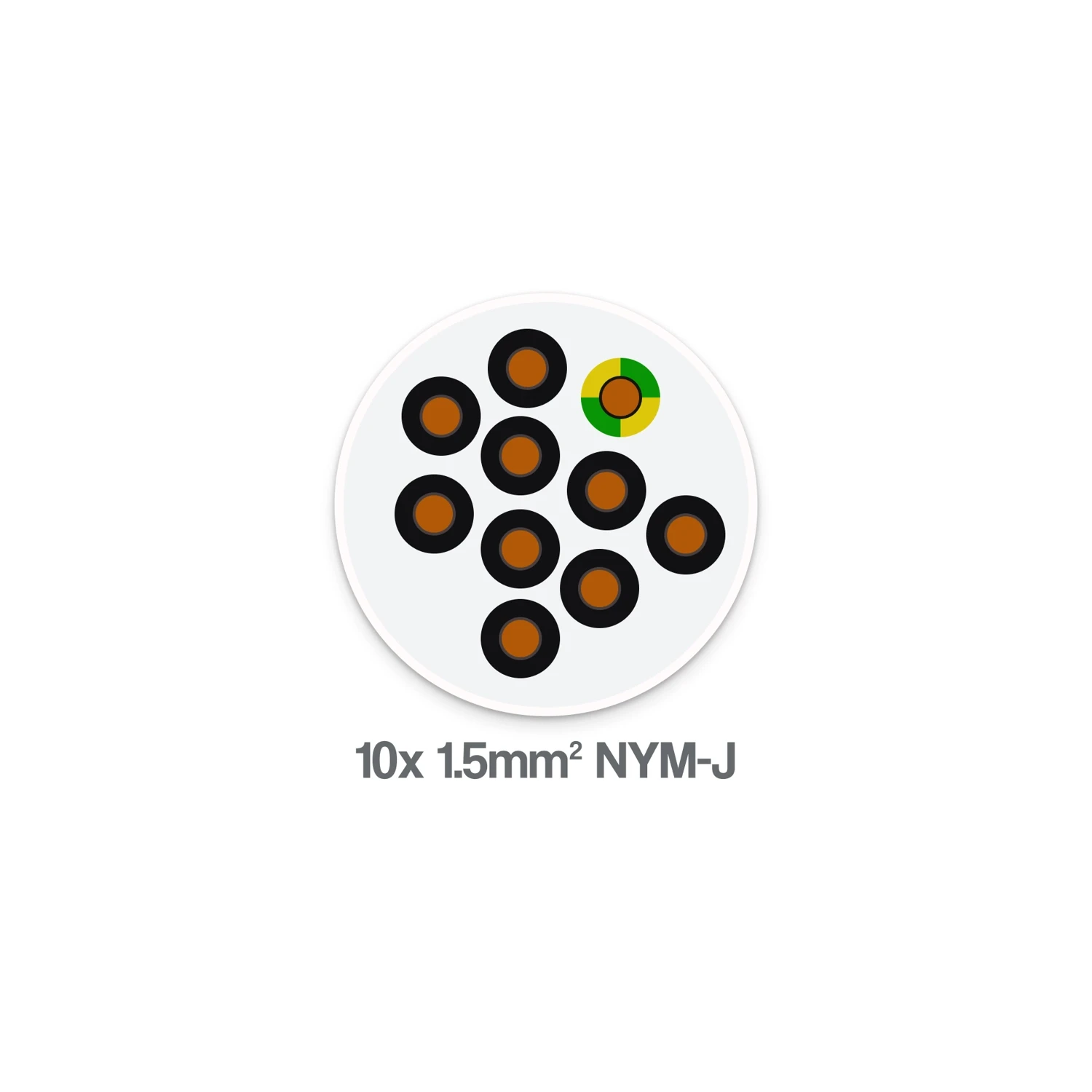

NYM-J 10 core 1.5mm² PVC power cable for fixed indoor installation wiring. Solid Class 1 copper conductors, grey PVC outer sheath, includes protective conductor. Core identification to HD 308 S2.

  • Rated voltage: 300/500V (U₀/U)
  • Conductor resistance: 12.1 Ω/km at 20°C
  • Max conductor temp: 70°C
  • Min bending radius: 8 × OD
  • Approx OD: 13mm
Specifications

Nominal Voltage U0/U

300/500V

Number of Cores

10

Conductor Cross-Section

1.5mm²

Conductor Material

Copper

Conductor Class

Class 1 — solid

Conductor Resistance at 20°C

12.1 Ω/km

Insulation Material

PVC

Outer Sheath Material

PVC

Outer Sheath Colour

Grey

Protective Conductor

Yes

Core Identification

HD 308 S2

Approximate Outer Diameter

13mm

Minimum Bending Radius

8 × outer diameter

Max Conductor Temperature

70°C

Max Short-Circuit Temperature

160°C

Operating Temperature (installed)

-40 to +70°C

Handling Temperature

5 to +70°C

Flame Retardant

IEC/EN 60332-1-2

Reaction to Fire (EN 13501-6)

Eca

Halogen Free

No

Low Smoke

No

Screen

None

Armouring

None

Approximate Weight

293.69 kg/km
