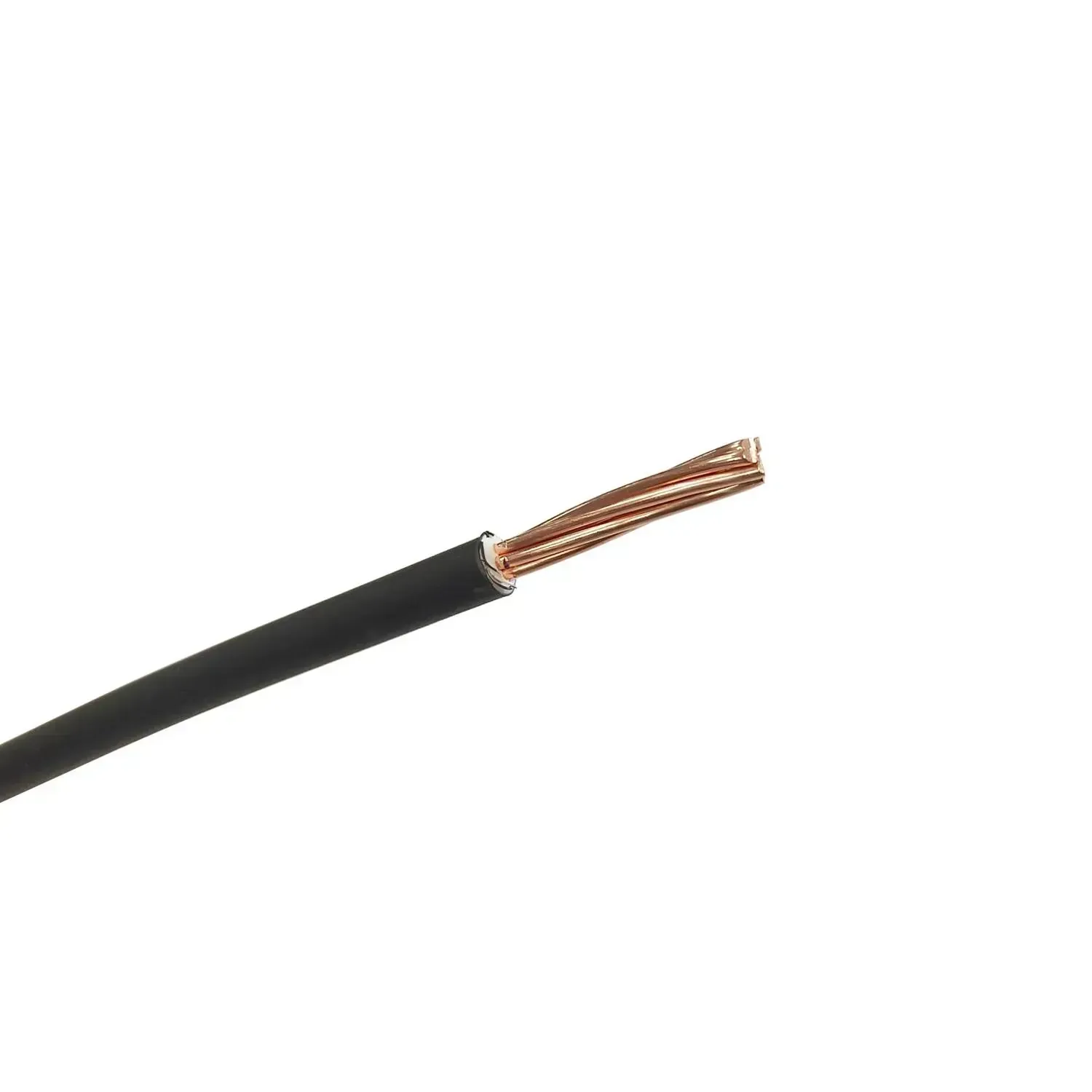

6491B Single Core LSZH 1.5mm² Black 450 750V H07Z-R 500m

Photo is representative

6491B Single Core LSZH 1.5mm² Black 450 750V H07Z-R 500m

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCBLACK5
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.30

Gross price

£0.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core LSZH cable to H07Z-R. Suited for conduit and fixed protection installations, lighting circuits, and switchgear wiring.

LSZH sheath in place of standard PVC — use where low smoke and halogen-free is required. 500m drum.

  • 1.5mm² Class 2 stranded copper (7⁄0.53mm)
  • 450/750V rated
  • 3mm overall diameter
  • Operating temp: 0°C to +90°C
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Conductor Type

Class 2 stranded copper

Stranding

7/0.53 mm

Number of Cores

1

Core Colour

Black

Voltage Rating

450/750V

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3 mm

Temperature Range

0°C to +90°C

Minimum Bending Radius (Fixed)

6 x overall diameter

Weight

22 kg/km

Flame Retardancy

BS EN 60332-1-2

Standard

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
