Single Core LSZH Cable 1.5mm² Grey H07Z-R 450 750V

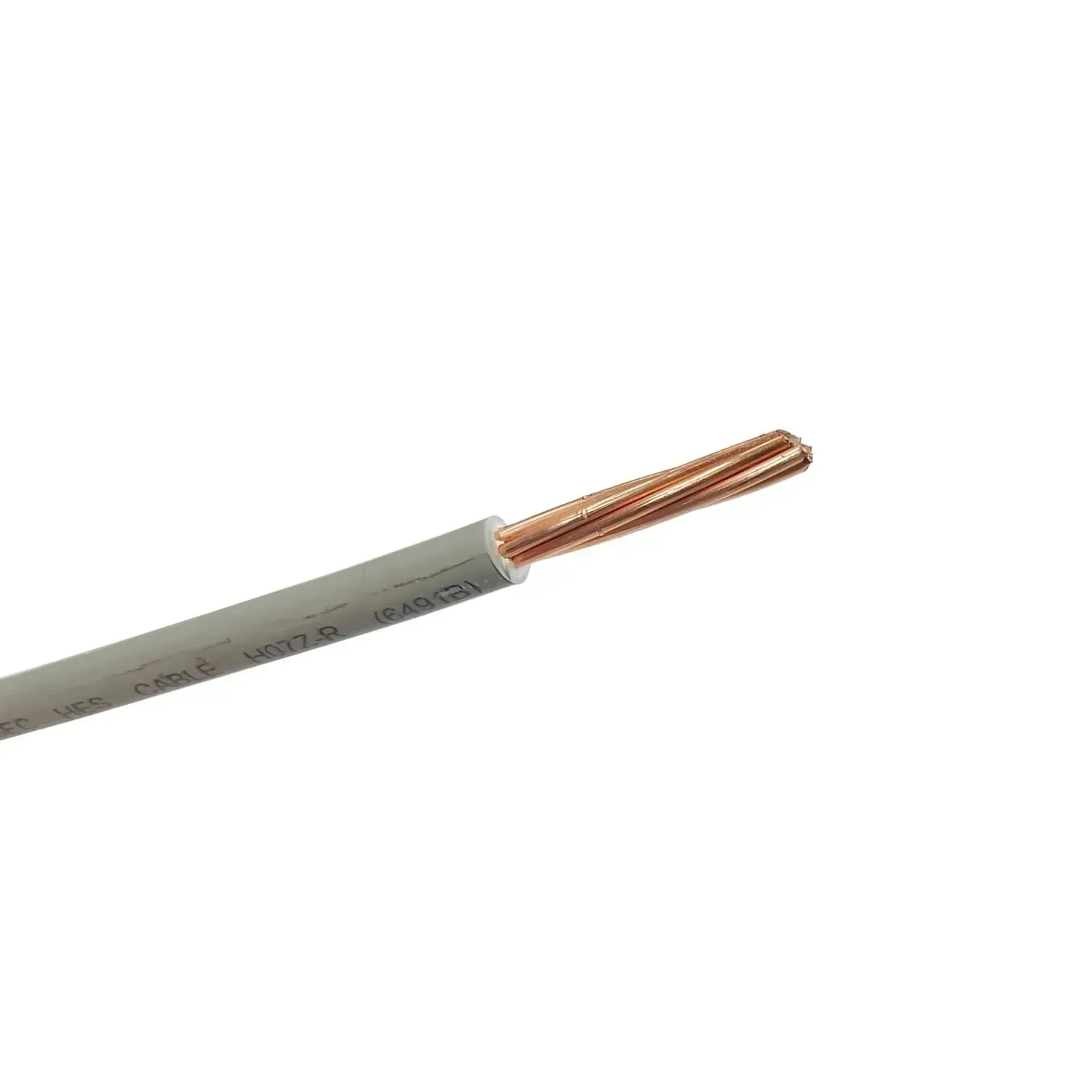

Photo is representative

Single Core LSZH Cable 1.5mm² Grey H07Z-R 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCGREY5
GTIN —
Stock status: In stock

priced per metre

Net price: £0.30

Gross price

£0.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 1.5mm² LSZH cable in grey. Rated H07Z-R at 450/750V. Suitable for use in conduit and fixed protection installations — lighting, switchgear, and control gear.

LSZH sheath reduces smoke, emissions, and toxic fumes in fire conditions. Use where halogen-free installation is required.

  • Conductor: Class 2 stranded copper, 7⁄0.53
  • Sheath: Low Smoke Zero Halogen (LSZH)
  • OD: 3mm
  • Temp range: 0°C to +90°C
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

1.5mm²

Number of Cores

1

Core Colour

Grey

Conductor Type

Class 2 stranded copper

Stranding

7/0.53

Voltage Rating

450/750V

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3mm

Weight

22kg/km

Min Bending Radius (Fixed)

6 × overall diameter

Temperature Range

0°C to +90°C

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
