6491B H07Z-R 1.5mm Single Core Earth LSZH Yellow Green 450 750V

Photo is representative

6491B H07Z-R 1.5mm Single Core Earth LSZH Yellow Green 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCEARTH5
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.30

Gross price

£0.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

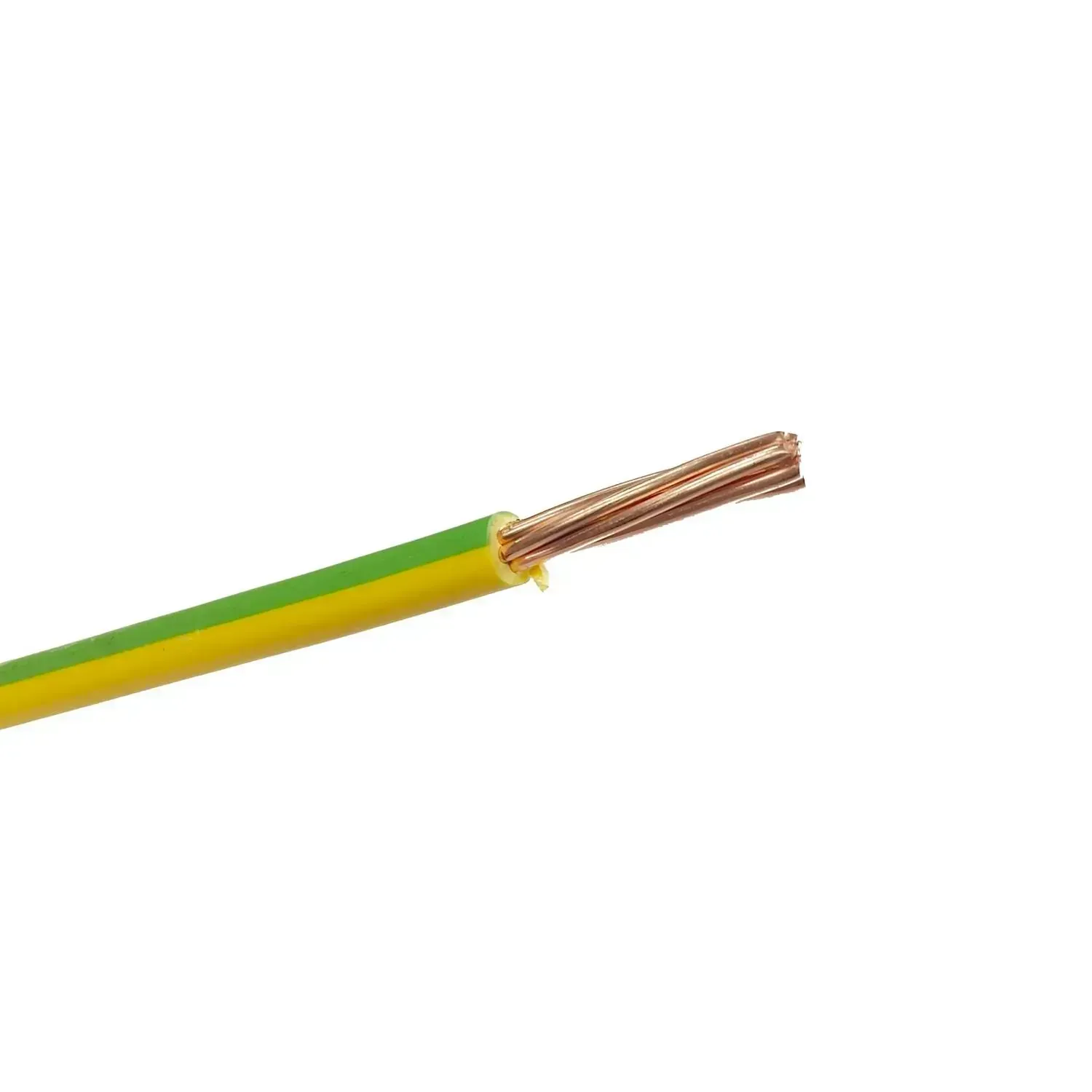

Single core 1.5mm² earth cable to H07Z-R. Yellow/green LSZH sheath — suited for conduit runs, fixed wiring, lighting circuits, switchgear and appliances. LSZH sheathing makes it the right call where fire, smoke, and toxic fume risk needs to be managed.

  • 450/750V rated
  • Class 2 stranded copper, 7⁄0.53
  • OD: 3mm, temp range: 0°C to +90°C
  • Flame retardant to BS EN 60332-1-2
  • Minimum bend radius (fixed): 6 x OD
Specifications

Conductor Size

1.5 mm²

Cores

1

Core Colour

Yellow/Green

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

7/0.53

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3 mm

Weight

22 kg/km

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
