6491B Single Core LSZH 1.5mm² Brown H07Z-R 450 750V 500m

Photo is representative

6491B Single Core LSZH 1.5mm² Brown H07Z-R 450 750V 500m

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCBROWN5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £0.30

Gross price

£0.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

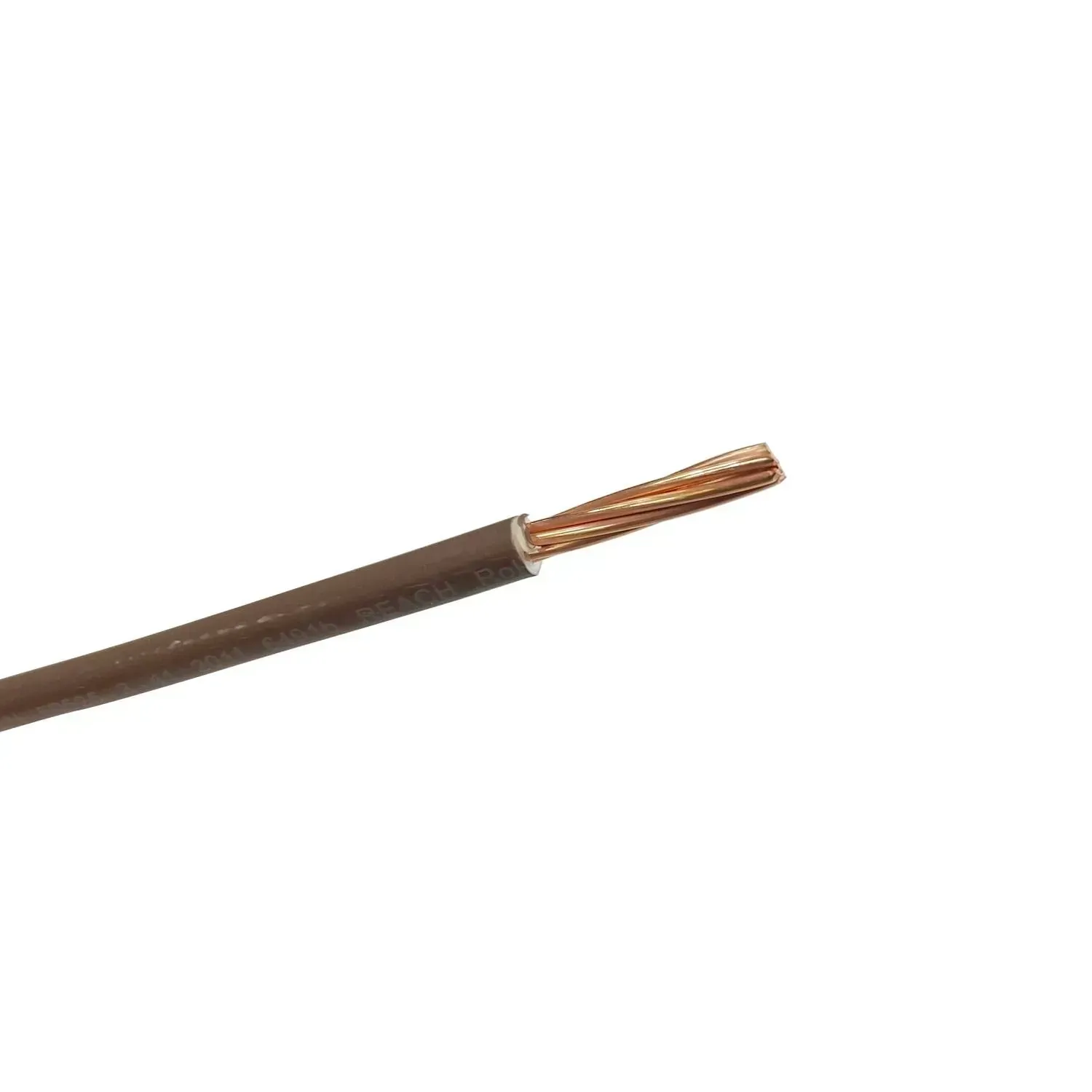

Single core LSZH cable to H07Z-R, 1.5mm² brown. Suited for conduit and fixed protection installs — lighting circuits, switchgear, and control gear wiring.

LSZH sheath keeps smoke, emissions, and toxic fumes down in the event of a fire. Class 2 stranded copper conductor throughout.

  • 450/750V rated
  • 7⁄0.53mm stranding, 3mm OD
  • Temp range: 0°C to +90°C
  • Min bending radius (fixed): 6 x OD
  • Complies with H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1⁄2, BS EN/IEC 60332-1-2
Specifications

Conductor Size

1.5 mm²

Cores

1

Conductor Type

Class 2 stranded copper

Stranding

7/0.53 mm

Core Colour

Brown

Voltage Rating

450/750 V

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3 mm

Temperature Range

0°C to +90°C

Min Bending Radius (Fixed)

6 x overall diameter

Weight

22 kg/km

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
