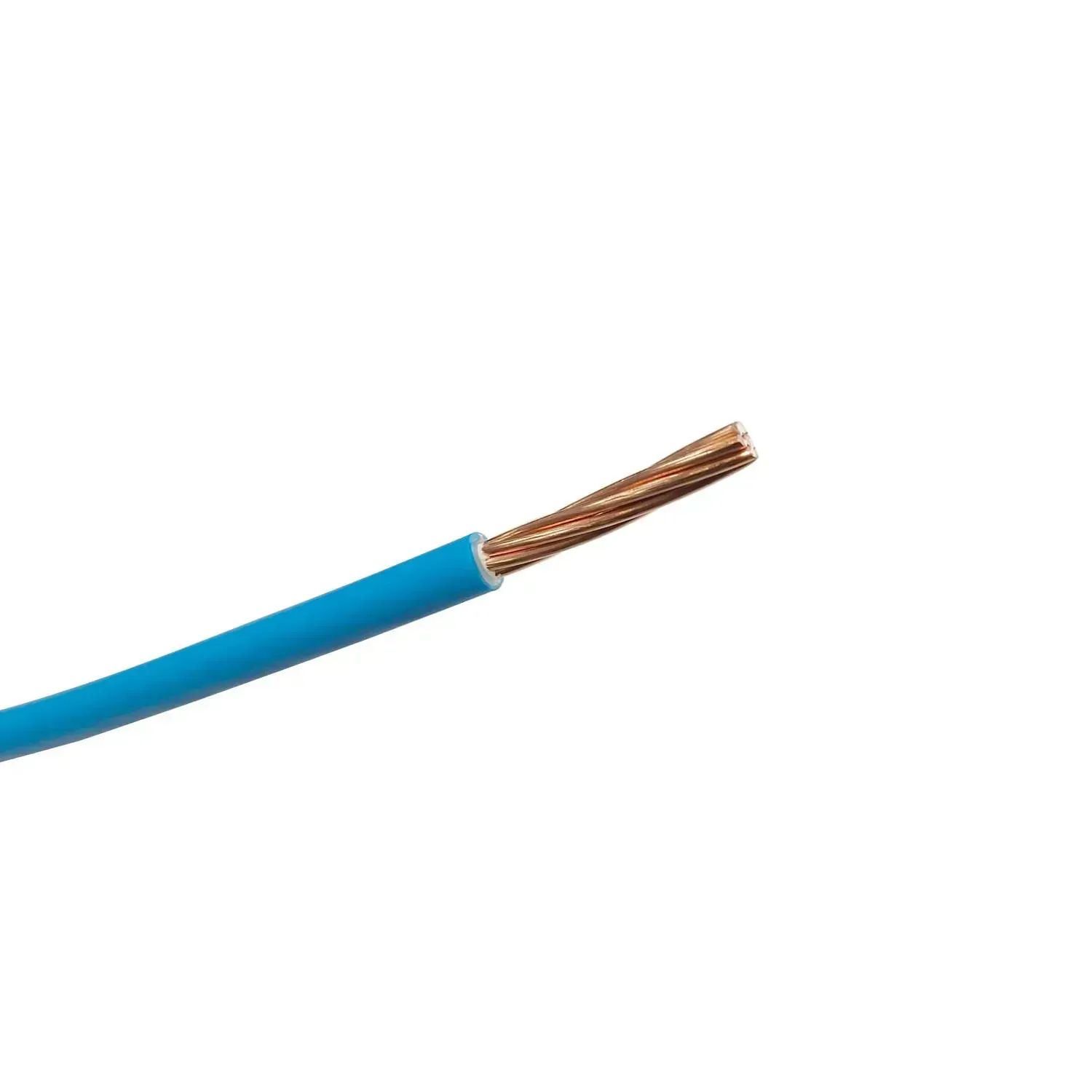

6491B Single Core LSZH 1.5mm Blue 450 750V H07Z-R

Photo is representative

6491B Single Core LSZH 1.5mm Blue 450 750V H07Z-R

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCBLUE5
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.30

Gross price

£0.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core stranded copper cable with LSZH sheath. Suited to fixed wiring in conduit — lighting circuits, switchgear, and control gear installations.

LSZH sheath meets BS EN 60332-1-2 flame retardancy. H07Z-R standard. Not PVC — check your spec before ordering.

  • 1.5mm² Class 2 stranded copper (7⁄0.53mm)
  • 450/750V rated
  • OD: 3mm
  • Temp range: 0°C to +90°C
  • Min bending radius (fixed): 6 x OD
Specifications

Conductor Size

1.5 mm²

Cores

1

Core Colour

Blue

Voltage Rating

450/750 V

Conductor Type

Class 2 stranded copper

Stranding

7/0.53 mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3 mm

Weight

22 kg/km

Temperature Range

0°C to +90°C

Min Bending Radius (Fixed)

6 x overall diameter

Standard

H07Z-R

Flame Retardancy

BS EN 60332-1-2

Conforms To

BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
